NEXT audiocom
ŠIFRA PROIZVODA: NAC2323

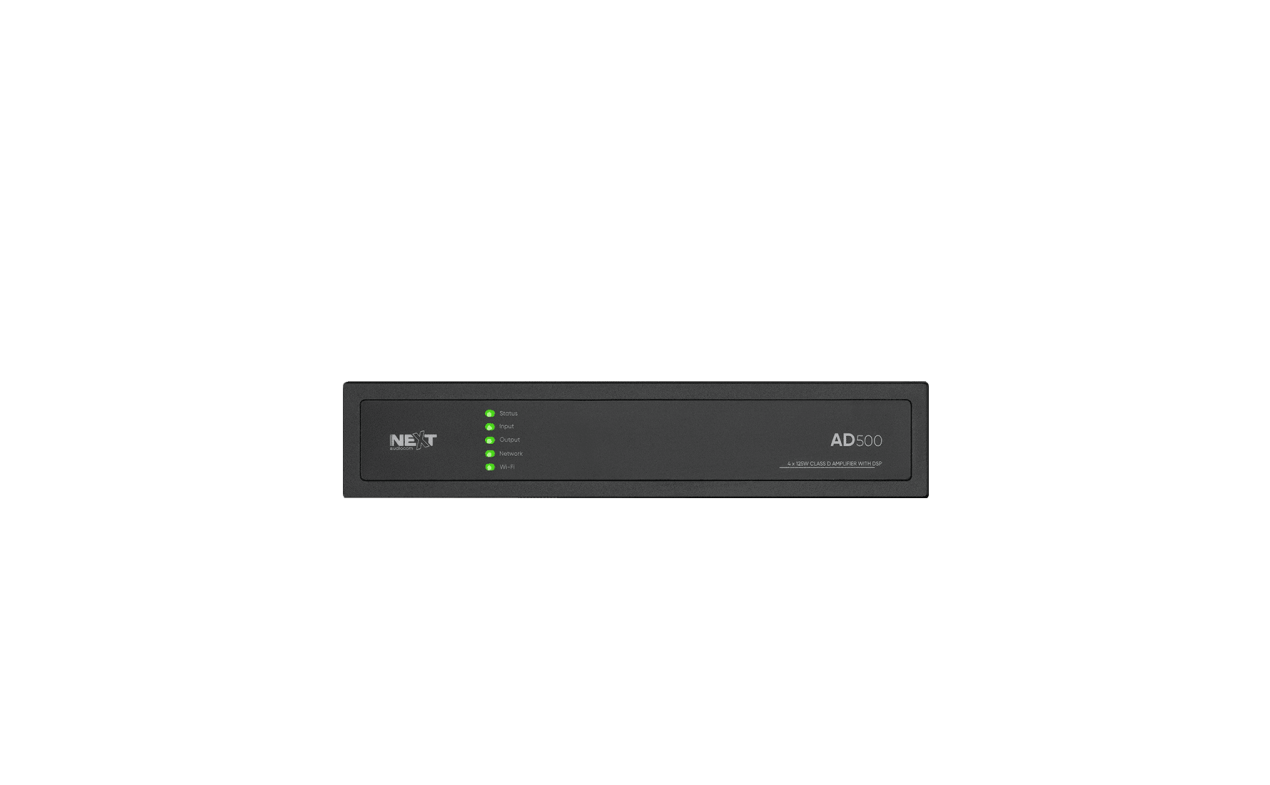

AD500 je višenamjensko instalacijsko pojačalo klase D u 1RU polustalku s fleksibilnom distribucijom snage između svoja 4 izlazna kanala dijeljenjem snage do 250W po kanalu koji pokreće i konvencionalne zvučnike niske impendacije i visoke impendacije.
Ugrađeni, najsuvremeniji, full matrix, DSP motor može se konfigurirati da odgovara širokom rasponu zadataka, bez potrebe za dodatnom opremom, za pogon širokog raspona sustava zvučnika.
Fiksni tečaj konverzije: 1 € = 7,53450 kn
Za sve naše veleprodajne kupce unutar Zagrebačke županije vršimo BESPLATNU DOSTAVU na Vaš kućni prag !!!
iznad 66,36 € (500 Kn) dostava je besplatna na području CIJELE HRVATSKE!
š: x v: x d: x m: kg
Product Type
Class D Amplifier with DSP
Frequency Response
20Hz - 20kHz (+0 / -0.25dB)
Amplifier Technology
UMAC Class D - Full Bandwidth PWM Modulator With Ultra-Low Distortion
Number of Amplifier Channels
4 Channels Low Impedance (LoZ) / 2 Channels High Impedance (HiZ)
Amplifier Power - Stereo 8Ω
4 x 125W
Amplifier Power - Stereo 4Ω
4 x 125W
Amplifier Power - 100V
2 x 250W
Amplifier Power - 70V
2 x 250W
Speaker Output
4Ω - 16Ω | 70V | 100V
Zones Output
4-Zones Output
THD+N
<0.05% (20Hz-20kHz, 8Ω load, 3dB below rated power)
SNR (Signal to Noise Ratio)
>106dB (A-weighted, 20Hz-20kHz, 8Ω load)
Output Voltage
70Vp / 140Vpp (unloaded) | Bridged 140Vp / 280 Vpp (unloaded)
DSP Technology
Ultimate DSP with WI-FI and Ethernet Connection
DSP Adjustable Parameters
Filters: PEQ, FIR, hi/lo-shelving, all-pass, band-pass, hi/lo-pass | Limiters: RMS Voltage, Peak Voltage | GPIO Functions | Routing
DSP Presets
Allows to Store and Load Individual Presets as well as Preset Libraries
Delay Adjustment
100ms (34.3m) per Output
Control Type
Controlled Via Webpage - Compatible with Desktop, Tablet and Mobile Phone (Wireless or Cable 1 x RJ45)
Wireless Connection System
Works as a WI-FI Access Point (WAP) or WI-FI Client

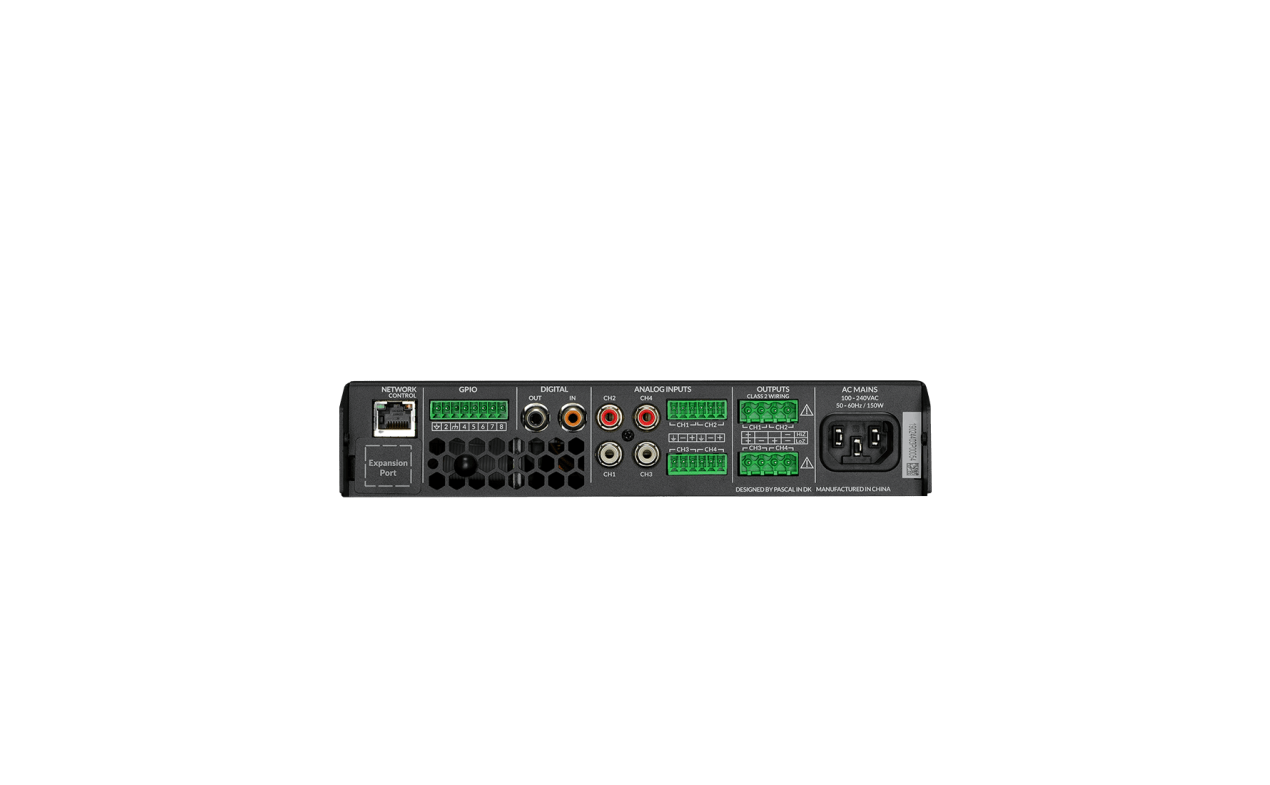

Audio Signal Inputs
4 x Analog Unbalanced Inputs | 4 x Analog Balanced Inputs | Stereo S/PDIF
Input Connectors
4 x RCA | 2 x 6-Pole 3.5mm Phoenix Type | 1 x RCA | 8 x GPIO
Audio Signal Outputs
Stereo S/PDIF
Output Connectors
1 x RCA | 8 x GPIO
Speakers Output Connectors
2 x 4-Pole 5mm Phoenix Type
Protections
Short Circuit, DC, Undervoltage, Temperature and Overload Protection
Operating Temperature Range
0ºC - 40ºC
Cooling Type
Speed Controlled Fan
Power Supply
UREC Universal Mains Switch Mode Power Supply (SMPS) with Power Factor Correction (PFC) and Standby Converter
Power Input
AC 100V - 240V 50Hz/60Hz
Mains Connector
Standard IEC socket
Power Consumption
150W
Special Features
GPIO Functions: Standby, Mute, Volume Control, Trigger IN, Trigger OUT
Dimensions (WxHxD)
44 x 220 x 319mm (1.7 x 8.7 x 12.6 in)
Fixation
1U 19" Rack Mount | Wall / Desktop Mount (Necessary Accessories Not Included)
Net Weight
2.8kg (6.2 lbs)
Shipping Weight
3.5kg (7.7 lbs)
Accessories
19" Rack Mount Kit | Wall / Desktop Mount Kit (not included)
