NEXT audiocom
ŠIFRA PROIZVODA: NAC1233

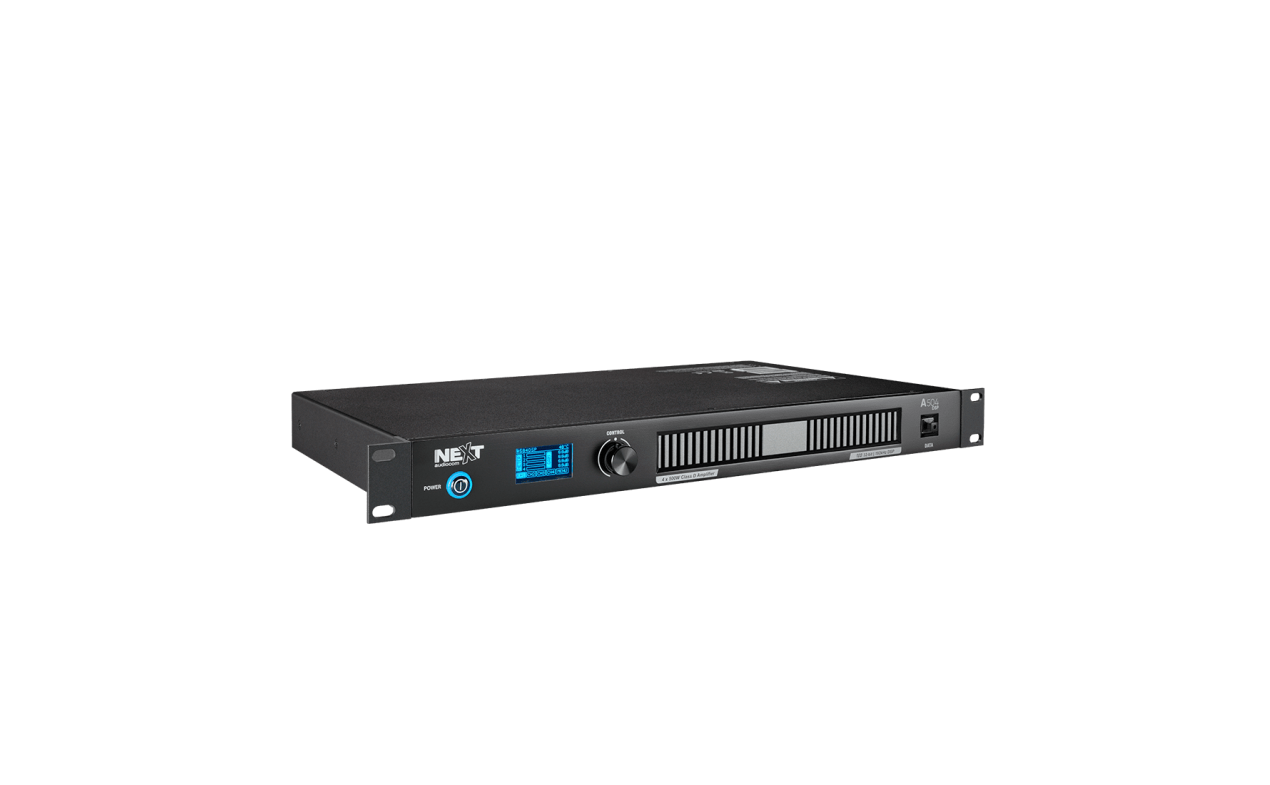

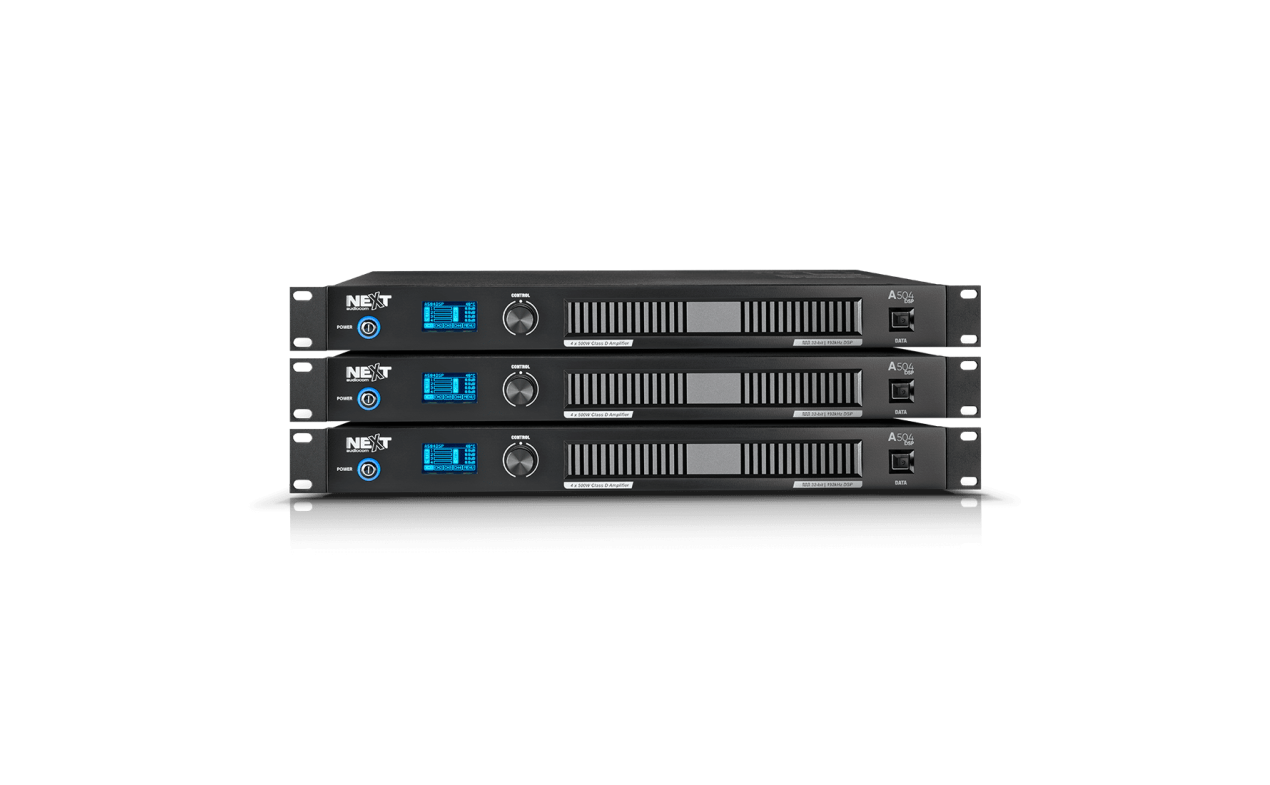

A504 DSP kombinira lagano pojačalo od 4x500 W sa snažnim DSP motorom koji se može konfigurirati da odgovara širokom rasponu zadataka, bez potrebe za dodatnom opremom, za pogon širokog raspona sustava zvučnika.
Bliska integracija obrade i pojačanja omogućuje DSP-u praćenje i bolju prilagodbu ponašanju pojačala, čineći dinamičku obradu daleko preciznijom i učinkovitijom od one koja se obično postiže s odvojenim komponentama.
Fiksni tečaj konverzije: 1 € = 7,53450 kn
Za sve naše veleprodajne kupce unutar Zagrebačke županije vršimo BESPLATNU DOSTAVU na Vaš kućni prag !!!
iznad 66,36 € (500 Kn) dostava je besplatna na području CIJELE HRVATSKE!
š: x v: x d: x m: kg
Product Type
Class D Amplifier with DSP
Frequency Response
20Hz - 20kHz (+0 / -1dB)
Amplifier Technology
Class D
Number of Amplifier Channels
4 Channels
Amplifier Power - Stereo 8Ω
4 x 250W
Amplifier Power - Stereo 4Ω
4 x 500W
Amplifier Power - Bridge 8Ω
2 x 1000W
Amplifier Power - 100V
2 x 1000W
Amplifier Gain
34dB±0.5dB
Speaker Output
4Ω - 16Ω | 100V
Damping Factor
>180
THD+N
<0.15%
SNR (Signal to Noise Ratio)
>95dB
Crosstalk
>50dB
Input Sensitivity
0.9V - 1.1V (+0 / -1dBv)
Input Impedance
Balanced: 20kΩ | Unbalanced: 10kΩ
DSP Technology
4 IN x 4 OUT - 32bit | 192kHz DSP
Latency
0.66ms
DSP Adjustable Parameters
PEQ, HPF, LPF, HSF, LSF, Compressor, Gate, Level, Delay, Polarity, Mute
Delay Adjustment
62.4ms / 21.42m per Channel
Control Type
On the Amplifier Encoder and LCD | Via USB and Suplied Software "A504 DSP Controller"
Audio Signal Inputs
Analog Audio
Input Connectors
4 x Neutrik XLR
Audio Signal Outputs
None
Output Connectors
None
Speakers Output Connectors
4 x Neutrik NL4
Protections
Full short circuit, open circuit, thermal, ultrasonic, and RF protection stable into reactive or mismatched loads, turn ON/OFF, muting, tried crowbar
Operating Temperature Range
0ºC - 40ºC
Cooling Type
Speed Controlled Fan
Power Supply
Switching Mode Power Supply (SMPS)
Power Input
AC 110V - 120V | AC 220V - 240V 50Hz/60Hz ±10%
Mains Connector
Standard IEC socket
Power Consumption
1100W
Fittings
1U 19" Rack
Dimensions (WxHxD)
483 x 44 x 290mm (19 x 1.73 x 11.4 in)
Net Weight
6kg (13.2lb)
Shipping Weight
7.2kg (2.2 lb)
