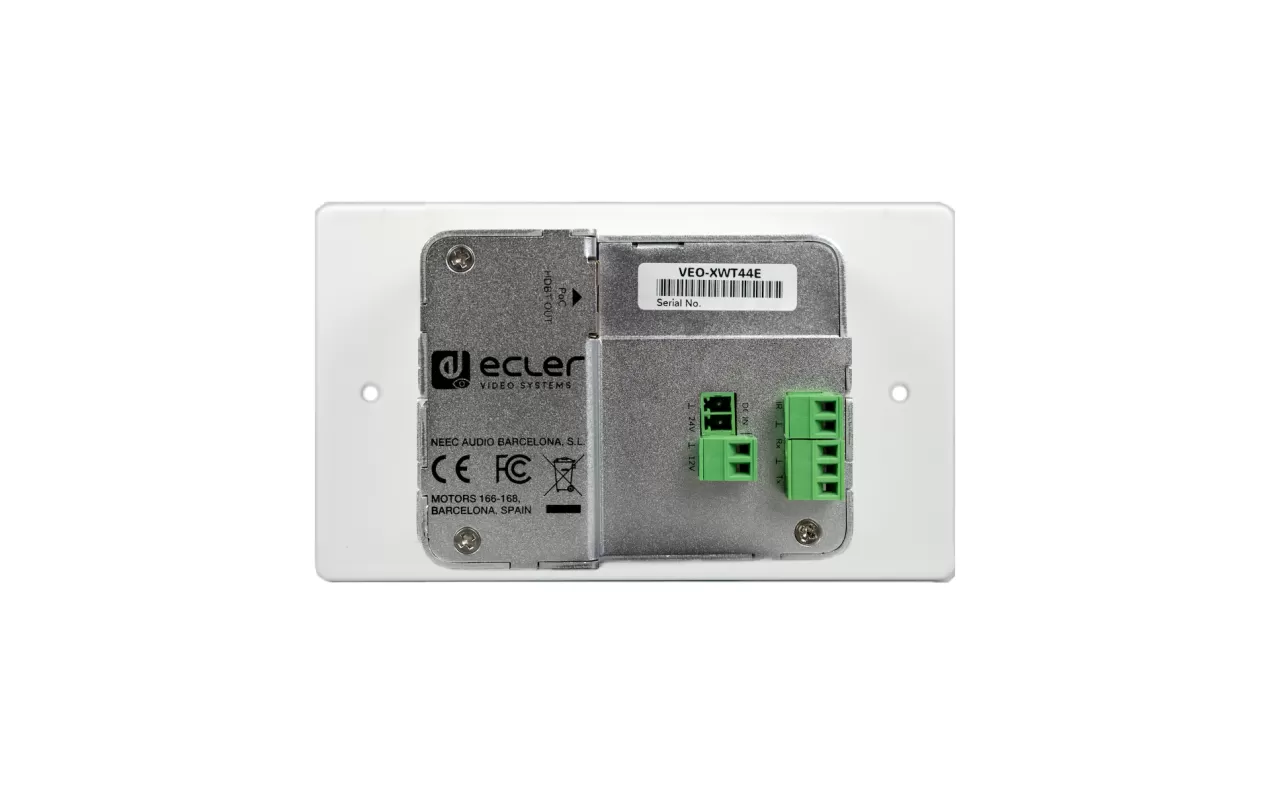

• 4K HDMI wall-plate transmitter with 2 HDMI IN, and 1 USB-C IN
• Supports HDMI 2.0, 4Kx2K/60Hz/4:4:4
• HDCP 2.2 compliant
• Video source auto-switching
• Video lossless compression for HDBaseT technology, transmission up to 40m@4K and 70m@1080p over CATx cable
• Displays can be turned ON/OFF via CEC & RS-232 commands by ‘DISPLAY ON/OFF’ button
• RS-232 and IR pass through
• IR learning to control display on/off.
• EDID pass through and smart managing
• Two-way PoC Supports CEC pass-through.
• Provides LEDs to indicate the current operating status.
• Firmware upgrade by Micro-USB port.
• ESD protection

• Operating temperature

  Min: -10°C ; 14°F
  Max: 55°C ; 131°F

  Operating humidity

  10 - 90% RH (no condensation)

  Installation options

  Wall

  Included accessories

  Surface mount box EU, 2x Mounting screws, 3-pin Euroblock, 3x 2-pin Euroblock, Power Adapter (24V DC 1.25A), Quick guide and warranty


  Dimensions

  146 × 86 × 42 mm / 5.75 x 3.39 x 1.65 in. (WxHxD)

  Weight

  0.294 kg / 0.648 lb


  Shipping dimensions

  183 x 105 x 133 mm / 7.2 x 4.13 x 5.24 in. (WxHxD)

  Shipping weight

  0.8 kg / 1.76 lb

  Chassis material

  Plastic

  Finished colour

  White
