SPECIFIKACIJE

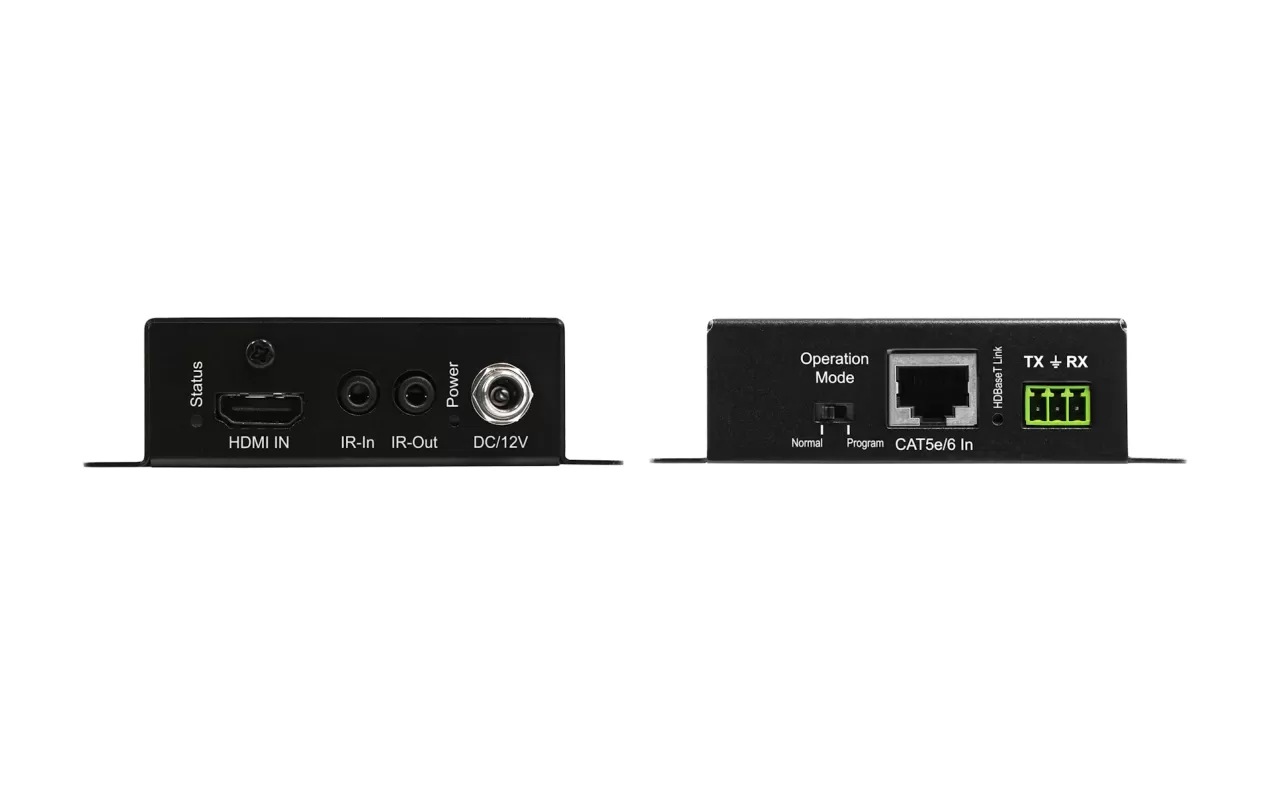

• Complete extender kit, no settings needed
• Full HD support: 1080p@60Hz
• 4K/UHD support: up to 4096x2160@30Hz (or 60Hz with YUV 4:2:0)
• Transmission distances up to 70 meters under 1080p and 40 meters under 4K
• Bi-directional IR and RS-232 pass-through
• Use single UTP/STP category cable (CAT.5e/6/7) to substitute HDMI cable to achieve long distance transmission
• UTP/STP cable termination follows the standard of IEEE-568B
• POC (RX powered by TX)
• HDCP2.2/1.4 compliant
• Mounting ears supplied

• Operating temperature

  Min: -5°C ; 41°F
  Max: 35°C ; 95°F

  Operating humidity

  5 to 90 % RH (no condensation)

  Installation options

  Desktop, VEO-RACK19

  Included accessories

  1 x 12V DC International power supply (One PSU for both units), 2 x IR Blaster unit, 2 x IR Receiver unit, 2 x Phoenix plugs

  Dimensions

  71 x 105 x 25 mm / 2.79 x 4.13 x 0.98 in. (WxHxD)

  Weight

  0.7 kg / 1.54 lb (Pair)

  Shipping dimensions

  320 x 60 x 250 mm/

  Shipping weight

  1.0 kg /

  Chassis material

  Metal

  Finished colour

  Black
