SPECIFIKACIJE

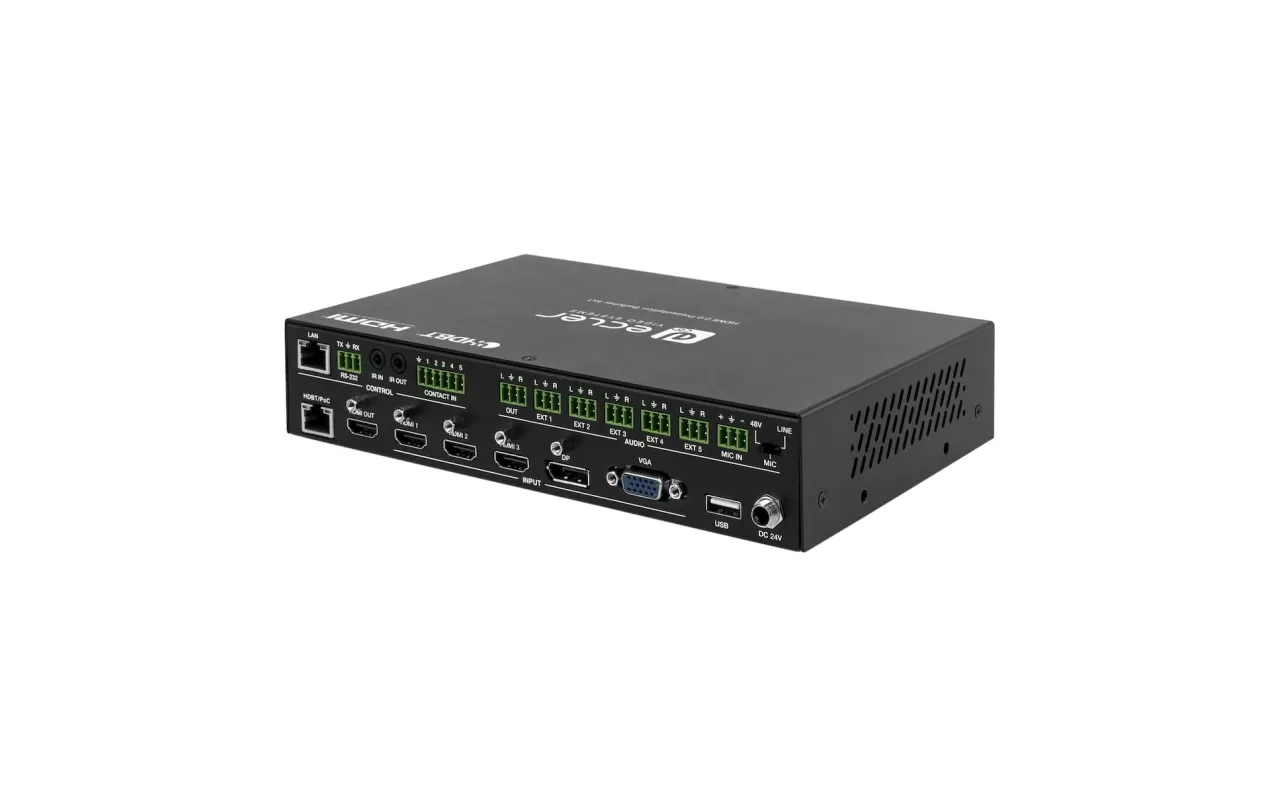

• Ultra High Definition source selector with presentation features and integrated scaler
• Three HDMI 2.0 Inputs, one VGA (YPbPr/CVBS) and one DisplayPort video input
• Five Unbalanced Stereo and one Balanced Microphone/Line Inputs with 48V phantom power
• Digital input video resolutions up to 4Kx2K (4096x2160@60Hz YUV 4:4:4)
• VGA resolution up to 1920x1200@60Hz
• Output resolutions up to 4096x2160@30Hz
• Mirrored HDBaseT output for extension up to 70m
• HDBaseT Receiver included
• HDCP 2.2 Compliant
• Supports automatic and manual switching options
• Supports EDID management
• Supports PCM stereo pass-through
• Touch Panel buttons, Embedded Web GUI, IR Remote, Logic contacts, RS-232 control and TCP/IP control (EclerNet Manager and third party remote control compatible)

• Operating temperature

  Min: 0°C ; 32°F
  Max: 40°C ; 104°F

  Operating humidity

  20 - 90% RH (no condensation)


  Installation options

  Desktop, VEO-RACK19 - TBC

  Included accessories

  1 x HDBaseT Receiver, 2 x Mounting Ears, 1 x Remote Control, 2 x IR Receiver Cable, 2 x IR Blaster Cable, 1 x 24V/1A International Power Supply, 1 x 3RCA (Female) to D-SUB (Male) Adapter

  Dimensions

  220 x 44 x 150 mm / 8.66 x 1.73 x 5.9 in. (WxHxD)

  Weight

  1.25 kg / 2.75 lb

  Shipping dimensions

  320 x 100 x 310 mm / 12.6 x 3.94 x 12.2 in. (WxHxD)

  Shipping weight

  2.1 kg / 4.63 lb

  Chassis material

  Metal

  Finished colour

  Black
