IHOS
ŠIFRA PROIZVODA: L006199
Digitalno pojačalo D klase, snage 4x1500W@8Ω / 4x2000W@4Ω ,Bridge 2x3200W@8Ω, Build-in DSP processor.
PEQ, matrix mixer, delay, FIR function, support 4x2048 Taps, 4.3?IPS colorful capacitive ,zaslon osjetljiv na dodir, Ethernet, USB, RS485, RS232, ? Support constant pressure and resistance: 100V, 70V, 8Ω, 4Ω.
Fiksni tečaj konverzije: 1 € = 7,53450 kn
Za sve naše veleprodajne kupce unutar Zagrebačke županije vršimo BESPLATNU DOSTAVU na Vaš kućni prag !!!
iznad 66,36 € (500 Kn) dostava je besplatna na području CIJELE HRVATSKE!
š: x v: x d: x m: kg
Quadro 6.4, is a multi-functional network DSP digital power amplifier. It can monitor the status of amplifier and adjust the function of DSP in real time remotely. Built-in DSP functions with compressor, limiter, noise gate, PEQ, matrix mixer, delay etc. Mconsole software with its elegant interface provides with easy setup and nice operation experience. Variety of connection methods make it configurable and extensible. Suitable for various occasions in the PA project.
Suitable for: Performance & Art Centers, Theaters, Stadiums, Hotels, Meeting Rooms, Shopping Malls, Retail Stores, Restaurants.
Power: 4*1500W@8Ω, 4*2000W@4Ω.
Bridged Power: 2*3200W@8Ω
Input Audio Source: Analog, Sine wave, Pink noise, White noise, AES
Input Volume: Mute, Phase, Level detector
Input EQ: 31 bands EQ
Input Noise Gate: Attack time 1～2895ms, Release time 1～2895ms, Threshold level -120dBu～0dBu.
DSP Matrix: 4*4 matrix zone
Output EQ: 10 bands EQ
Frequency Divider: Butterworth, Bessel, Linkwitz-Riley
Delay Input delay: 4×80ms Output delay: 4×20ms
Output Compressor: Soft knee, Threshold level, Attack time, Compression ratio, Releasing time
Output Limiter: Voltage 0.01V～89.50V, Power 0.01W～1000W, Release time 1~2895ms
Output Volume: Mute, Phase, Level detector
DSP Preset: 80 packages
Control Mode: Ethernet, USB, RS485, RS232
Network Model: TCP/IP、1000base-T/100base-TX、RJ45
Channels: 4
Minimum output impedance: Each channel 4Ω, bridged mode 8Ω

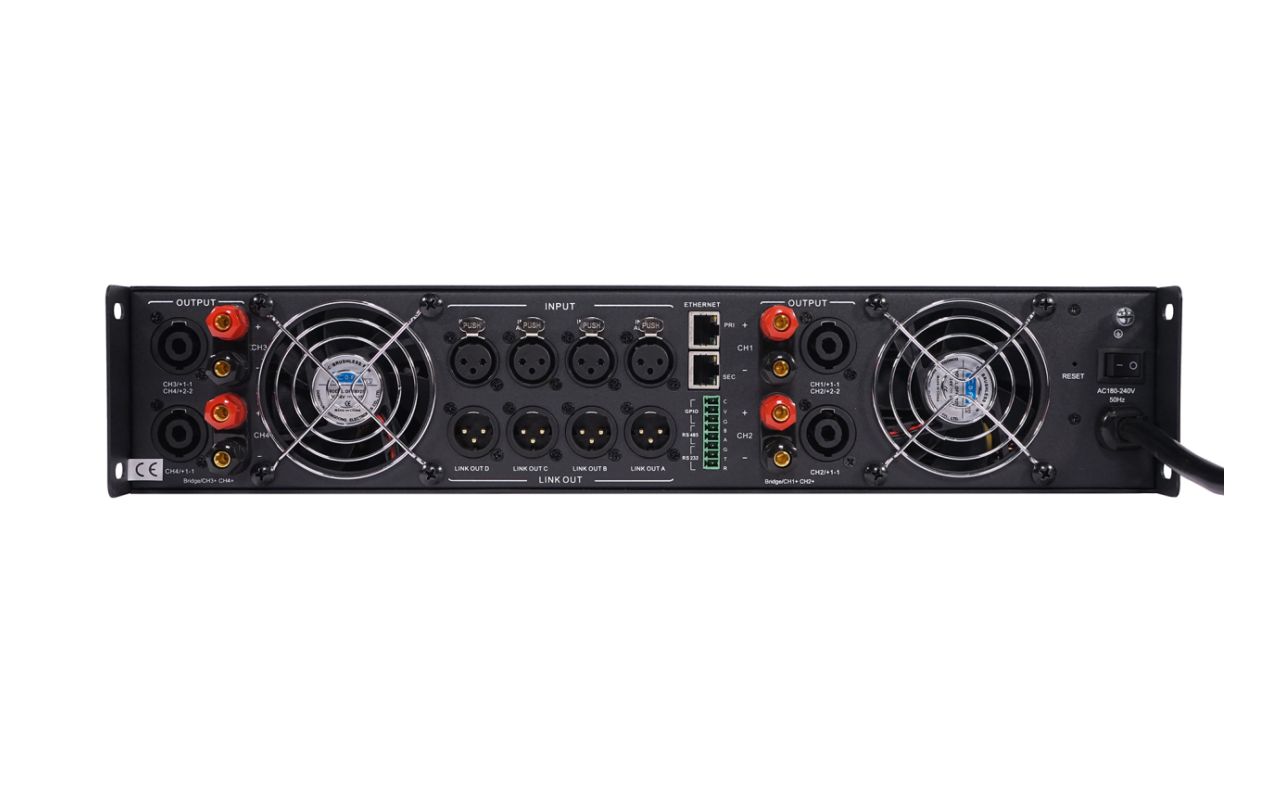

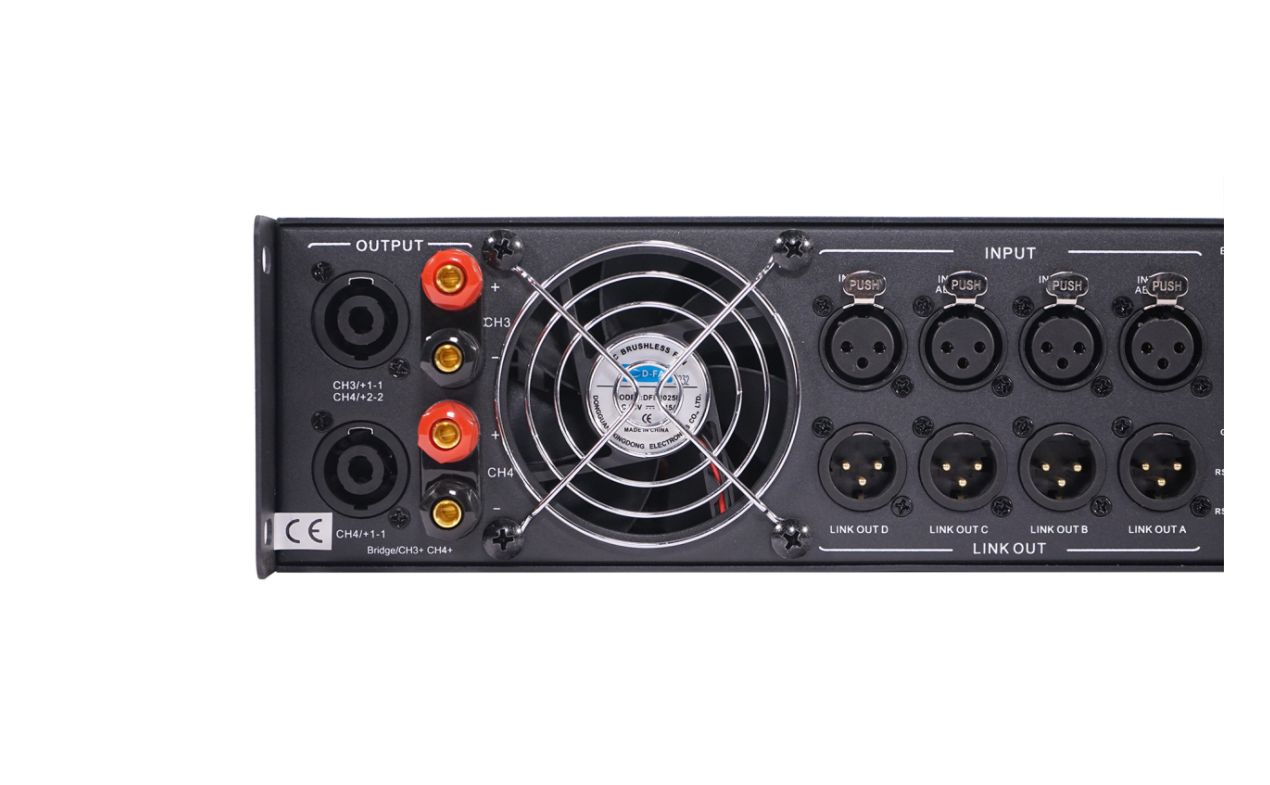

Input Interface: Balanced input 4×XLR
Output Interface: Spoken*4, XLR×4
Cooling System: Dual fans intelligent control
Gain: 6dB sensitivity: 30dB (×29.5); 0dB sensitivity: 36dB (×31.1)
Max input level: 20dB sensitivity: 20dBu (7.75V)
SNR: 12dB sensitivity: 94dB; 6dB sensitivity: 94dB; 0dB sensitivity: 94dB
Frequency Response: 20Hz～20kHz (±0.5dB)@1W, 8Ω
THD+N: <0.1%@1W to full power
Sampling: 48K/24bit
Channel Isolation: <-70dB
Operating Mode: Matrix, Bridge
Remotely Control: Remote boot, standby, DSP monitor
Amplifier Monitor: Temperature, Power, Voltage, Current
Constant Pressure and Resistance: 100V, 70V, 8Ω, 4Ω

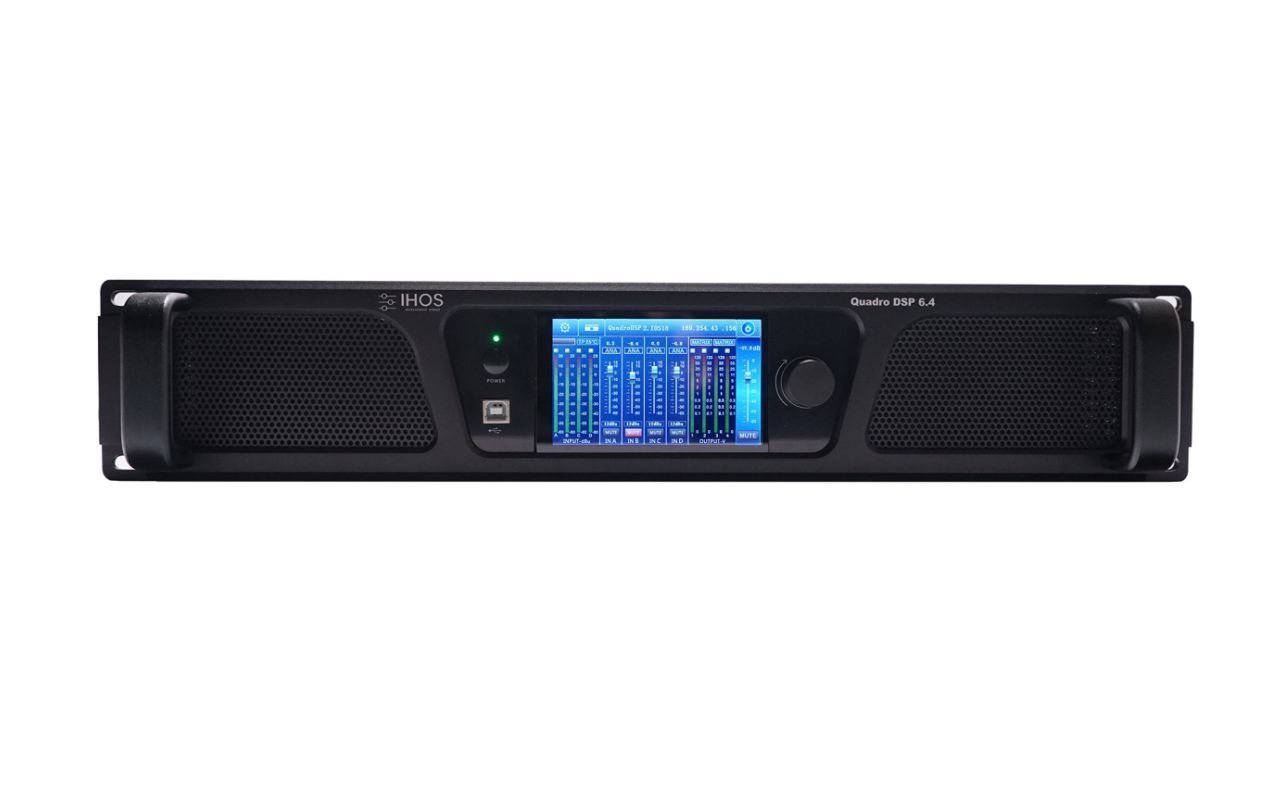

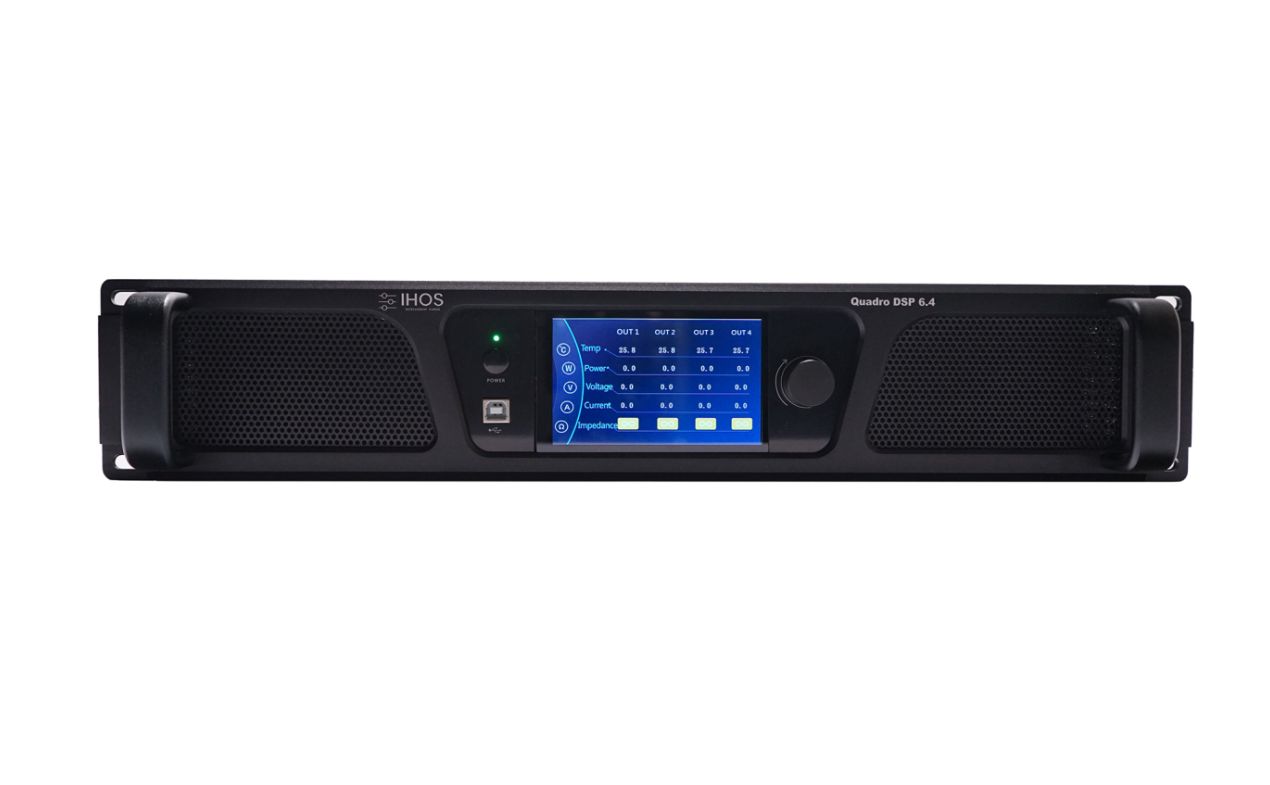

Display: 4.3”IPS colorful capacitive touch display.
Protection: Audio limiter, high temperature, DC, high frequency, short circuit, back electromotive force, peak current limiter, surge current limiter, start delay, power breaker protection, power supply overvoltage/undervoltage protection.
PC Software: Mconsole for controlling media matrix processor, audio processor, DSP power amplifier, DSP active amplifier module.
Net Weight: 12.35kg.
Packaged Weight: 16.15kg.
Products Dimensions: 483mm x 460mm x 89mm, 2U
Packaged Dimensions: 570mm x 550mm x 165mm.

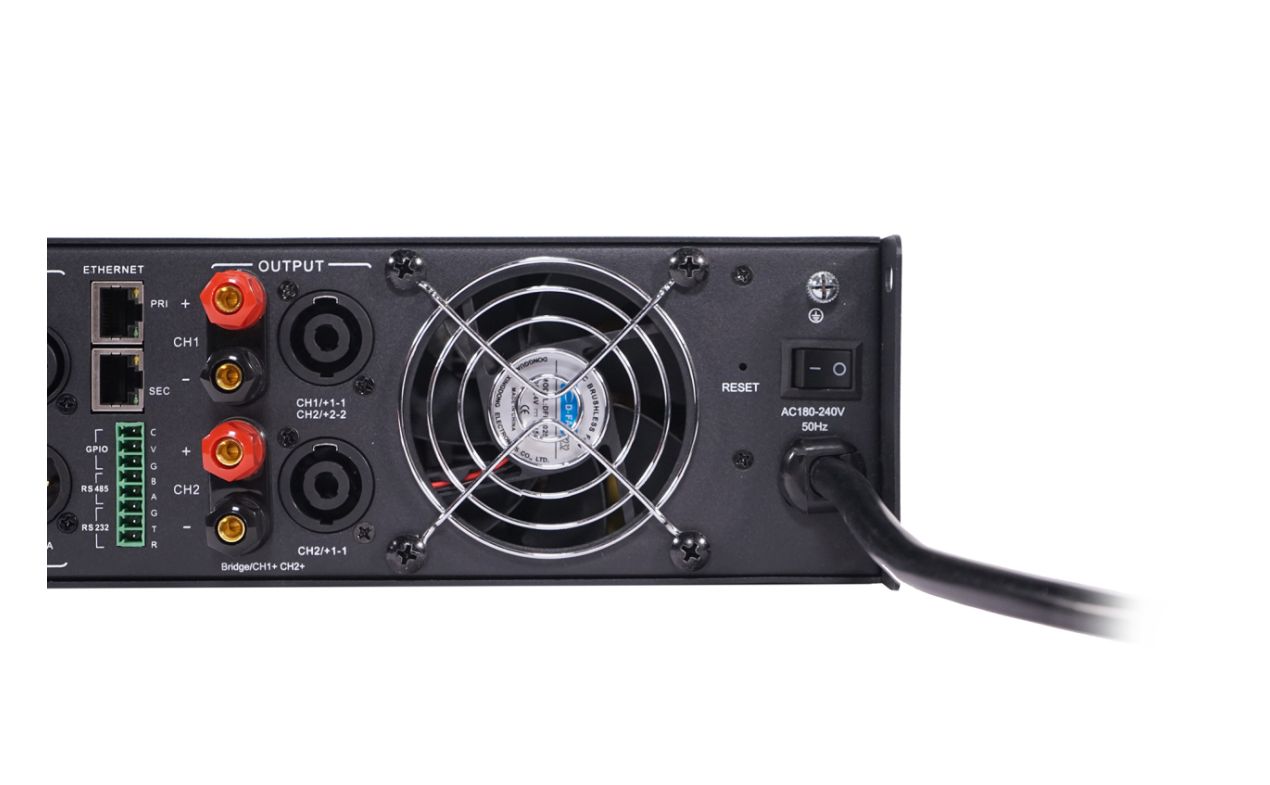

Power supply input: 180 to 264 Volt AC, 50/60 Hz.
