NEXT-PROAUDIO
ŠIFRA PROIZVODA: NC00209

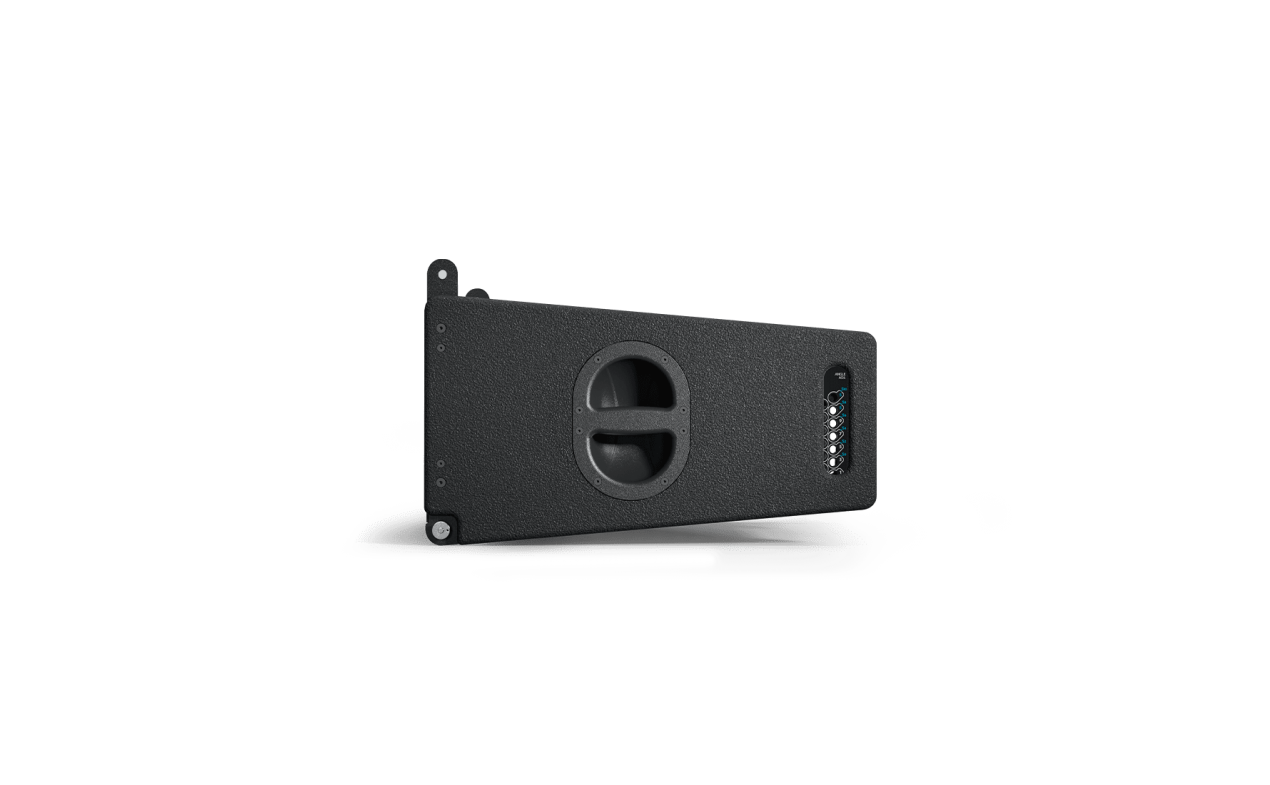

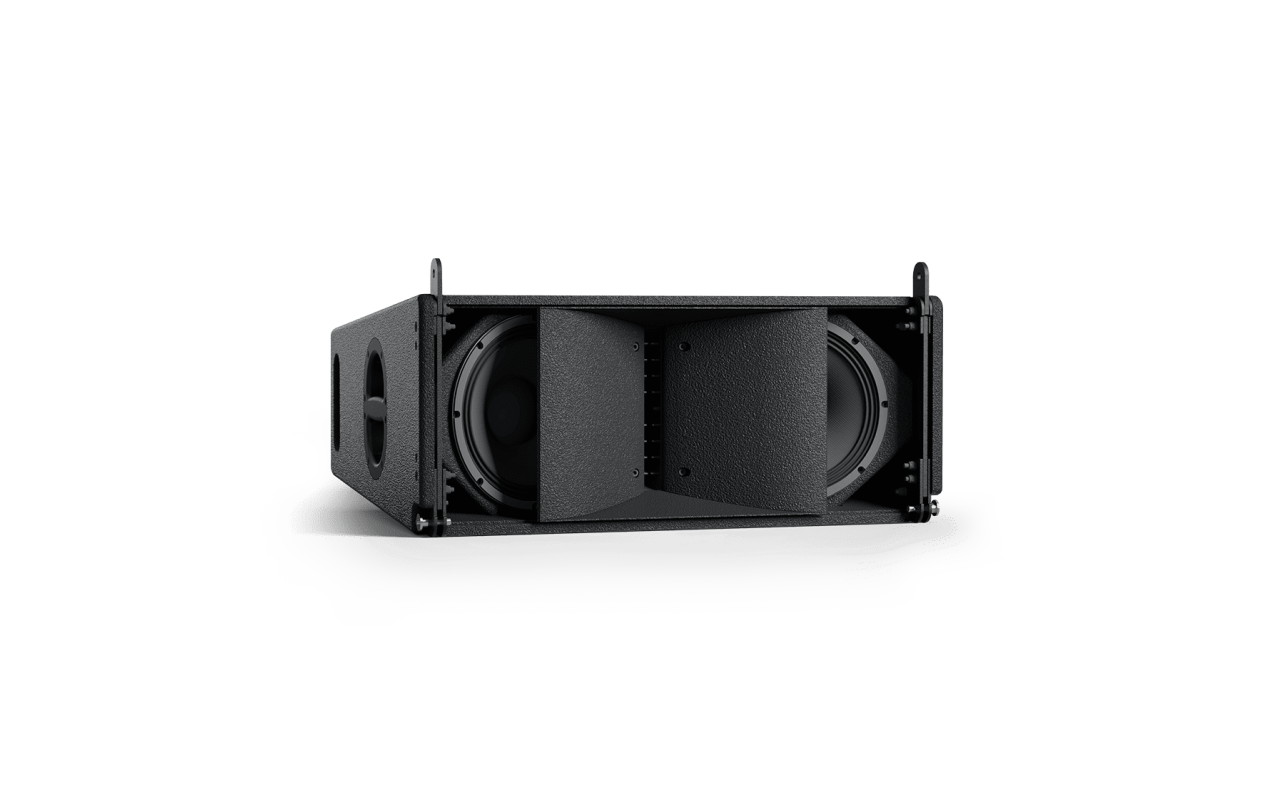

LA210X je 3-way element aktivnog linijskog niza srednjeg formata dizajniran za podršku širokom rasponu srednjih do velikih touring aplikacija i instalacija gdje je jednostavno korištenje, od transporta do instalacije i opremanja.
Ugrađeni snažni DSP i pojačanje eliminiraju nosače pojačala, dugačke kabele zvučnika i osnovnu kalibraciju sustava.
Maksimalno optiminizirani akustični dizajn pruža izvrsnu vjernost zvuka na vrlo visokim razinama SPL-a.
Računalni softver s punim značajkama automatski identificira i omogućuje istovremenu kontrolu više uređaja putem mogućnosti grupiranja.
Sustav postavljanja u 3 točke omogućuje brzo i jednostavno postavljanje sustava. Sustav će se automatski zaključati na unaprijed definirane kutove prilikom podizanja niza.
Fiksni tečaj konverzije: 1 € = 7,53450 kn
Za sve naše veleprodajne kupce unutar Zagrebačke županije vršimo BESPLATNU DOSTAVU na Vaš kućni prag !!!
iznad 66,36 € (500 Kn) dostava je besplatna na području CIJELE HRVATSKE!
š: x v: x d: x m: kg
Product Type
3-Way Active Line Array Element
Frequency Response (-6dB)
58Hz - 19.000Hz
Low Frequency Extension (-10dB)
54Hz
Nominal Coverage (-6dB)
100º (300Hz - 16kHz) x 10º
RMS Power
2000W (LF:1000W | MF:500W | HF:500W)
Amplifier Technology
3-Channel UMAC Class D - Full Bandwidth PWM Modulator With Ultra-Low Distortion
DSP Technology
96kHz / 40 bit SHARC DSP
Latency
1.5ms or 0.5ms with "Low Latency Mode"
DSP Adjustable Parameters
Filters: PEQ, FIR, hi/lo-shelving, all-pass, band-pass, hi/lo-pass | Limiters: RMS Voltage, Peak Voltage | Groups: Mute, Delay, Level, Polarity, EQ
DSP Presets
24
Delay Adjustment
500ms (172m)
Control Type
Control via LCD and Encoder on the Back Panel | Control via Software Using Ethernet (RJ45)
Maximum SPL (calculated)
RMS: 136dB | Peak: 142dB (Full-Space)
Low Frequency Driver
2 x 10" / 3" VC, Neodymium, B&C Custom Speaker
High Frequency Driver
1 x 1.4" Neodymium Coaxial Ring Radiator Driver (MF: 3" VC | HF: 2" VC)
Audio Signal Inputs
Analog | AES (AESOP)
Input Connectors
1 x XLR | 1 x Neutrik EtherCON
Audio Signal Outputs
Analog | AES (AESOP) 32kHz - 196kHz
Output Connectors
1 x XLR | 1 x Neutrik EtherCON®
Protections
Clip Limiter | Temperature | Over Current | DC Protection | HF Protection
Cooling Type
Convection with External Aluminum Heat Sink
Power Supply
UREC Universal Mains Switch Mode Power Supply (SMPS) with Power Factor Correction (PFC) and Standby Converter
Power Input
AC 100V - 240V 50Hz/60Hz
Mains Connector
Dual (IN/OUT) Neutrik powerCON TRUE1 TOP®
Power Consumption
500W
Recommended Subwoofer
LAs518A
Fittings
3-Point Adjustable Rigging System (0º to 10º with 1º Step)
Handles
1 on Each Side, 2 on the Back
Grille
Black Perforated Steel
Construction
15mm Multi-Laminate Birch Plywood
Finish
Semi-Matte Black Textured Coating
Dimensions (WxHxD)
720 x 350 x 550 mm (28.3 x 13.8 x 21.7 in)
Net Weight
33kg (72.8lb)
