NEXT-PROAUDIO
ŠIFRA PROIZVODA: NC00126

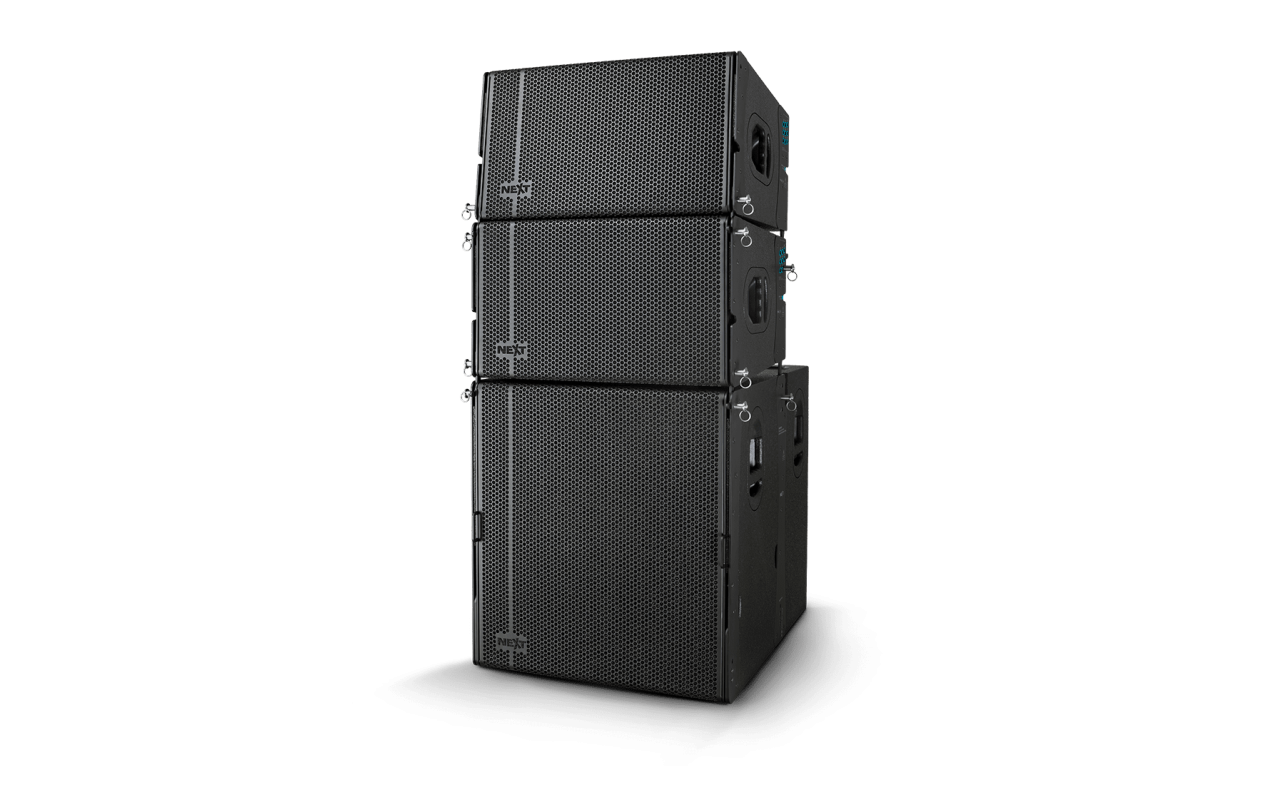

LA122 je 2-way 12" Line Array sustav koji uključuje napredne neodymium zvučnike, izrađene po narudžbi B and C s vrlo visokim akustičnim tlakom za srednje do velike primjene.
Ovaj sustav dizajniran je za korištenje u trajnim instalacijama, kao i touring sustav koji se sastoji od dva modela, dva linijska elementa niza - LA122 i LA122W (široka verzija), s različitim kutovima pokrivanja.
Fiksni tečaj konverzije: 1 € = 7,53450 kn
Za sve naše veleprodajne kupce unutar Zagrebačke županije vršimo BESPLATNU DOSTAVU na Vaš kućni prag !!!
iznad 66,36 € (500 Kn) dostava je besplatna na području CIJELE HRVATSKE!
š: x v: x d: x m: kg
Product Type
Passive 2-Way Line Array Element
Frequency Response (-6dB)
58Hz - 19.000Hz
Low Frequency Extension (-10dB)
48Hz
Nominal Coverage (-6dB)
90º x 8º
LF Nominal Impedance
8Ω
HF Nominal Impedance
16Ω
Frequency / Type of X-Over
1150Hz Linkwitz-Riley 48dB/oct
Recommended High-Pass Filter
45Hz, 18dB/oct Butterworth
LF Sensitivity (1W, 1m)
100dB (Full-Space)
HF Sensitivity (1W, 1m)
108dB (Full-Space)
Maximum SPL (calculated)
129dB / 135dB (Full-Space)
LF Maximum SPL (calculated)
129dB / 135dB (Full-Space)
HF Maximum SPL (calculated)
133dB / 139dB (Full-Space)
Low Frequency Driver
1 x 12" (300mm)/3" (76mm) VC, Neodymium, B&C custom speaker
High Frequency Driver
2 x 1.4" (36mm) exit/2.5" (65mm) VC, B&C custom compression driver
Low Frequency Driver Power
Program: 800W / Peak: 1600W (10ms)
High Frequency Driver Power
Program: 320W / Peak: 640W (10ms)
Input Connectors
2 x Neutrik NL4
Recommended Amplifier
N-RAK
Fittings
Adjustable (0º to 8º) rigging system
Handles
1 on each side
Grille
Black Perforated Steel
Construction
15mm Multi-Laminate Birch Plywood
Finish
Semi-Matte Black Textured Coating
Dimensions (WxHxD)
602 x 350 x 465mm
Net Weight
33kg
Shipping Weight
35.3kg
