SPECIFIKACIJE
Product Type

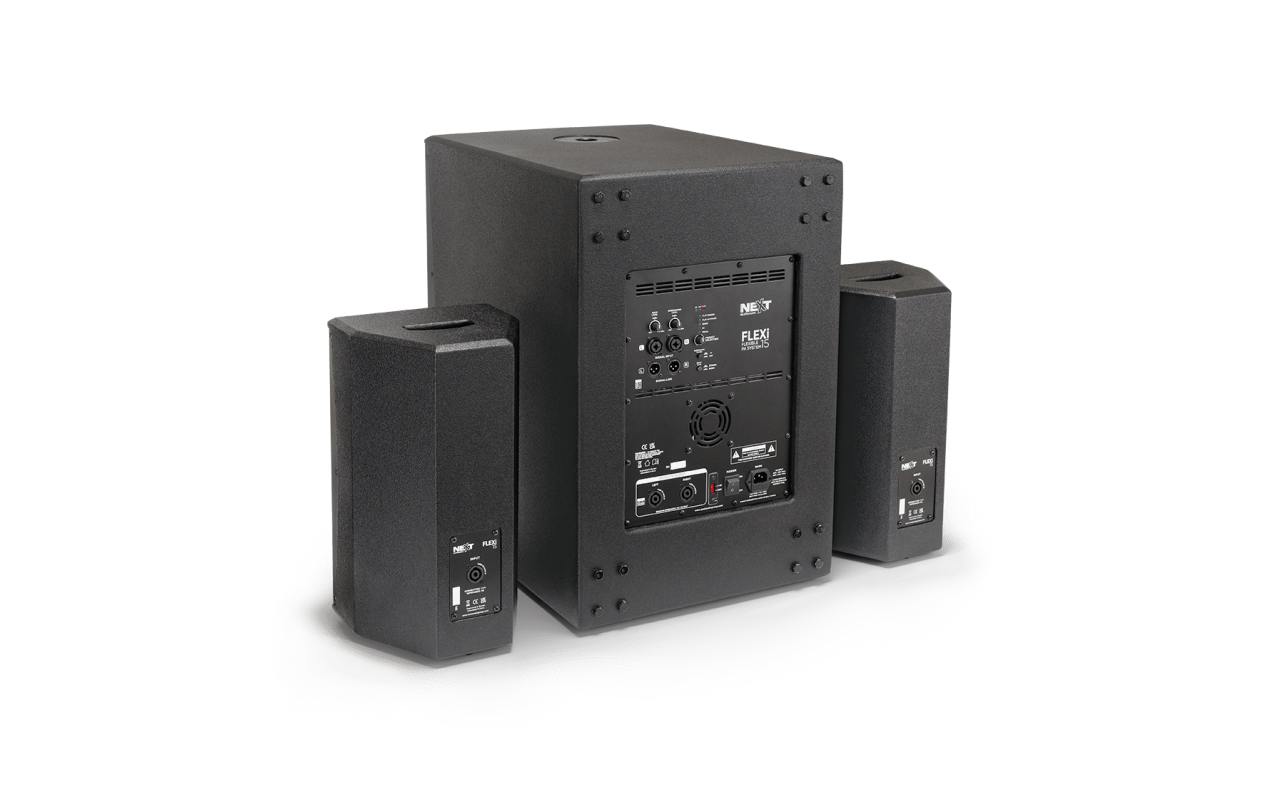

Flexible Active PA System - 1 x 15" + 2 x 8"
Frequency Response (-6dB)
40Hz - 19kHz
Nominal Coverage (-6dB)
50-100° H x 55º V (User Rotatable)
Amplifier Technology
Class D with DSP
Amplifier Power
RMS: 1000W | PGM: 2000W
DSP Technology
24bit | 48kHz DSP
DSP Presets
Flat Indoor, Flat Outdoor, Music, DJ, Vocal
Control Type
Parameters Controlled on the Subwoofer Panel
FR Maximum SPL (calculated)
121dB
SW Maximum SPL (calculated)
127dB
Subwoofer Driver
15" Woofer | 3" Voice Coil
Low Frequency Driver
8" Woofer | 1.5" Voice Coil
High Frequency Driver
1.4" Driver | 1.35" Voice Coil
Audio Signal Inputs
Mono / Stereo Analog Audio
Input Connectors
2 x XLR / TRS Combo
Audio Signal Outputs
Mono / Stereo Analog Audio
Output Connectors
2 x XLR
Speakers Output Connectors
2 x NL4 (1+/1-)
Protections
Overload and Overcurrent
Operating Temperature Range
0ºC - 45ºC (32ºF - 113ºF)
Cooling Type
Speed Controlled Fan
Power Supply
Switching Mode Power Supply (SMPS)
Power Input
AC 110V - 120V | AC 220V - 240V 50Hz/60Hz
Mains Connector
Standard IEC socket
Power Consumption
280W (1/8 Max. Power)
Special Features
Subwoofer Phase (0º / 180º) | Input Type (Mono / Stereo) | Main Level Adjust. | Subwoofer Level Adjust.
Fittings
35mm Pole Mount Socket
Handles
Subwoofer: One on Each Side | Satellite: One on Top
Grille
Powder Coated Steel Grille with Acoustical Foam
Construction
12mm and 15mm Multi-Laminate Plywood
Finish
Poliurea Coating
Dimensions (WxHxD)
Subwoofer: 440 x 655 x 583mm (17.3 x 25.8 x 23 in) | Satellite: 250 x 440 x 238mm (9.8 x 17.3 x 9.4 in)
Accessories
Speaker Cables and Subwoofer Wheels are included
