SPECIFIKACIJE

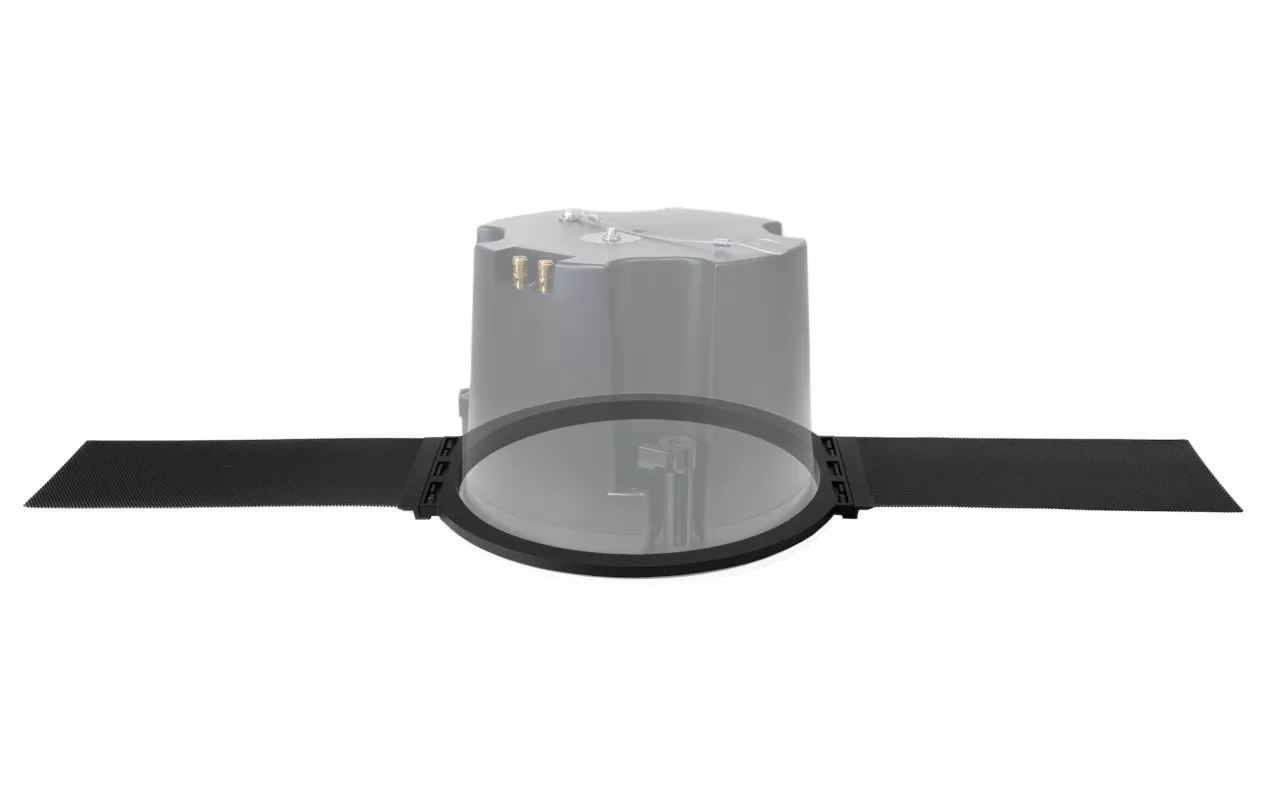

• False Ceiling Subwoofer Unit
• 8” polypropylene woofer
• 80WRMS @ 8 ohm
• 100V/70V in-line connection: 60 / 30 / 15 / 7.5 W @ 100V
• Sensitivity (1W/1m): 87 dB SPL
• Crossover included
• Plastic back cover (back can) included
• Includes tile bridge anchors for false ceiling mounting
• Dimensions (ØxD): 282x200mm
• Available in white (RAL9010) finish
• Weight: 3.9 kg

• Effective Freq. Range

  35Hz – 2kHz (-10dB) (with crossover)

  Power handling

  80 W RMS / 320 W Peak

  Sensitivity

  87 dB (1W/1m)

  Maximum SPL

  TBC

  Power options (Hi Z Multi-tap)

  100V: 60W / 30W / 15W / 7.5W / 8Ω
  70V: 60W / 30W / 15W / 7.5W / 3.75W / 8Ω

  Recommended amplifier power

  160 W RMS

• Installation options

  Ceiling

  Grille material

  Paintable aluminium

  Operating temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Operating humidity

  <85% HR

  Storage temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Storage humidity

  <90% HR

  External diameter

  282 mm / 11.10 in

  Internal diameter

  245 mm / 9.64 in

  Recommended cut out diameter

  246 mm/ 9.69"

  Required depth

  200 mm / 7.87 in

  Ceiling thickness

  10mm / 0.39" min
  50mm / 1.97" max

  Included accessories

  Tile bridge and Back can

  Finished colour

  White (RAL 9010)

  Dimensions

  282 x 200 mm /11.1 x 7.9 in. (ØxD)

  Weight

  3.9 kg / 8.59 lb

  Pieces per box

  Unit

  Shipping dimensions

  300 x 240 x 585 mm / 11.81 x 9.45 x 23.03 in. (WxHxD)

  Shipping weight

  8.5 kg / 18.74 lb
