KATEGORIJA

• Ozvučenje
• Zvučne Kutije
• Instalacijski zvučnici

DIMENZIJE

š: x v: x d: x m: kg

TAGOVI

Zvučnici

Ugradbeni Zvučnici

ecler

SPECIFIKACIJE

• 2-way false ceiling loudspeaker
• 8” polypropylene woofer
• 0,5” steerable tweeter
• Output 60WRMS @ 8 ohm
• 100V/70V line power selector: 60 / 30 / 15 / 7,5 / 3,75W
• Sensitivity (1W/1m): 90 dB SPL

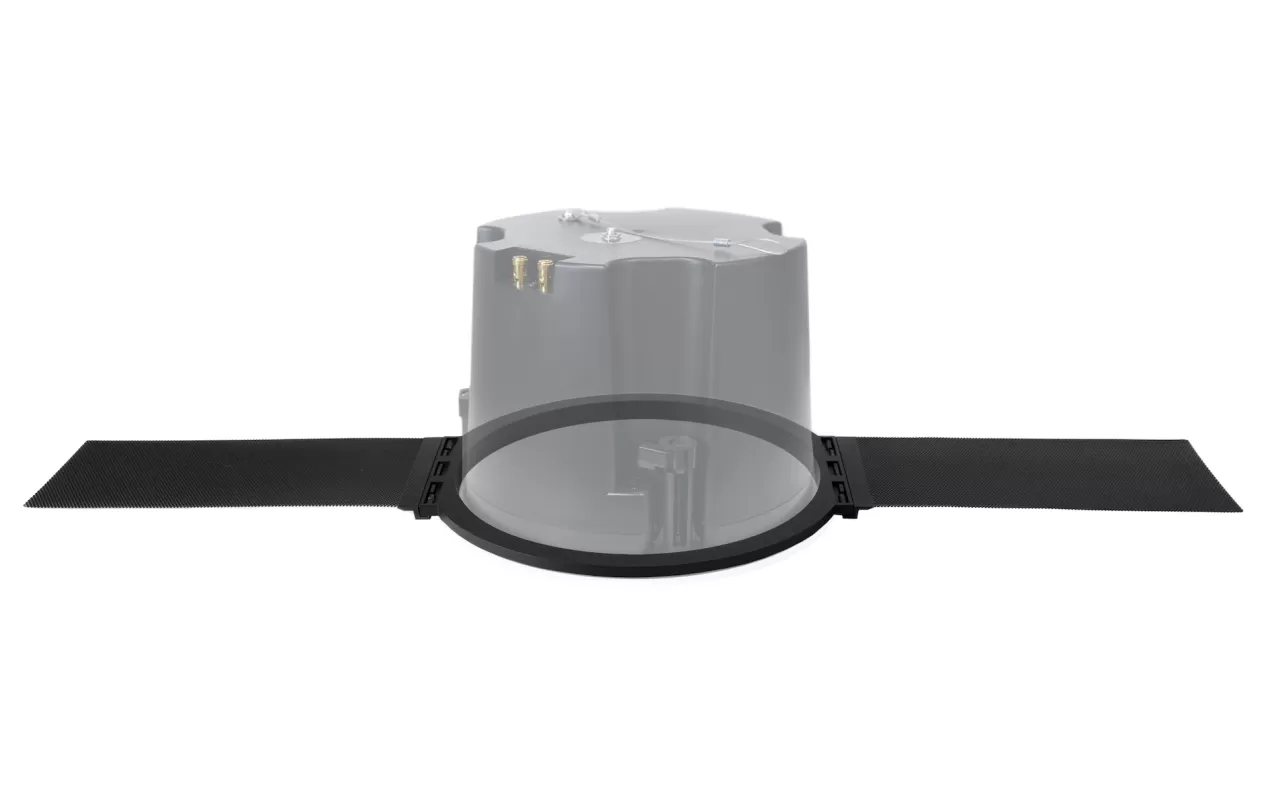

• Plastic back cover (back can) included
• Includes tile bridge anchors for false ceiling mounting
• Dimensions (ØxD): 282x200mm
• Available in white (RAL9010) finish
• Weight: 3.1 kg

• Effective Freq. Range

  59 Hz-20 kHz (-10dB)

  Coverage angle / Dispersion

  120° conical

  Power handling

  60 W RMS / 240 W Peak

  Sensitivity

  90 dB (1W/1m)

  Maximum SPL

  108 dB continuous / 114 dB peak

  Power options (Hi Z Multi-tap)

  100: 60W / 30W / 15W / 7,5W / 8Ω
  70: 60W / 30W / 15W / 7,5W / 3,75W / 8Ω

  Recommended amplifier power

  120 W RMS

• Installation options

  Ceiling

  Grille material

  Paintable aluminium

  Operating temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Operating humidity

  <85% HR

  Storage temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Storage humidity

  <90% HR

  External diameter

  282 mm / 11.10"

  Internal diameter

  245 mm / 9.64"

  Recommended cut out diameter

  246 mm/ 9.69"

  Required depth

  200 mm / 7.9"

  Ceiling thickness

  10mm / 0.39" min
  50mm / 1.97" max

  Included accessories

  Back-can and tile bridge

  Finished colour

  White (RAL 9010)

  Dimensions

  282 x 200 mm / 11.1 x 7.9 in. (ØxD)

  Weight

  3.1 kg / 6.8 lb

  Pieces per box

  Pair

  Shipping dimensions

  300 x 240 x 585 mm / 11.81 x 9.45 x 23.03 in. (WxHxD)

  Shipping weight

  7.0 kg / 15.43 lb
