SPECIFIKACIJE

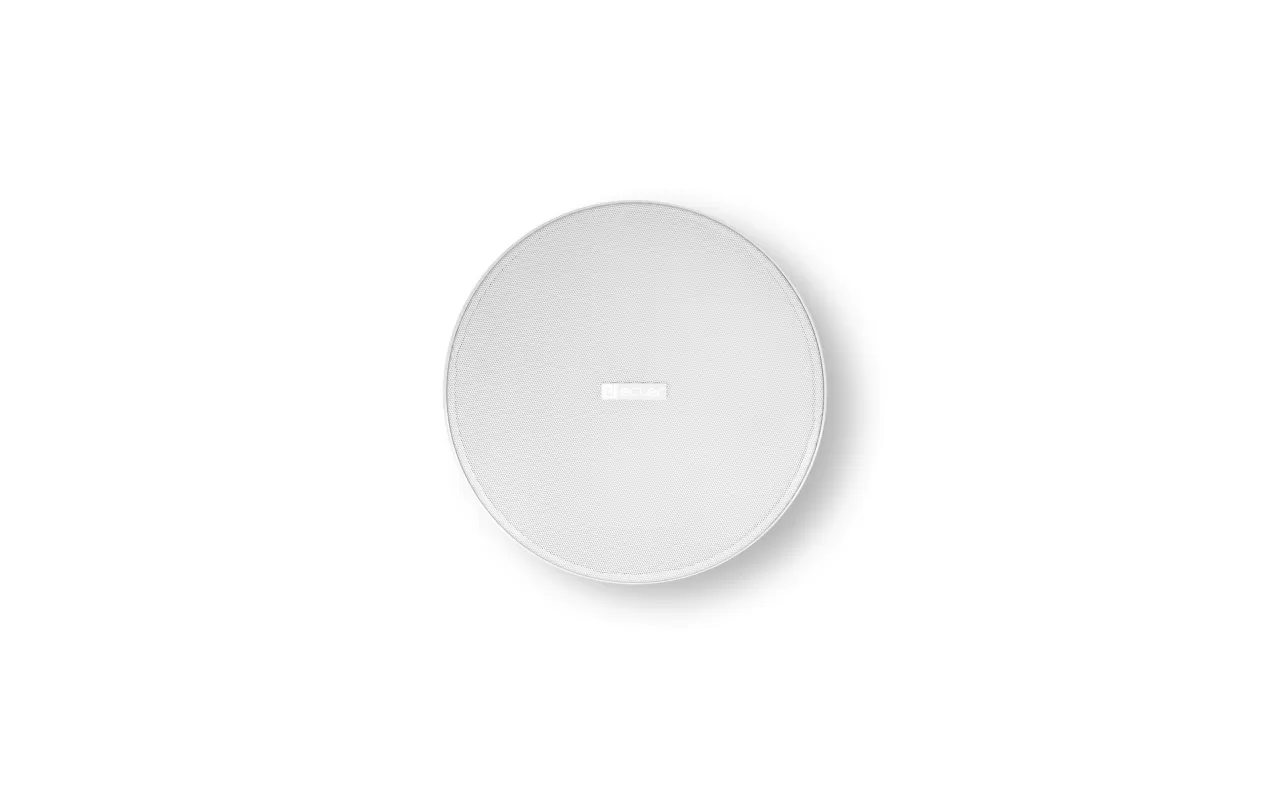

• 2-way false ceiling loudspeaker
• 6” polypropylene woofer
• 0,5” steerable tweeter
• 40WRMS @ 8 ohm
• 100V/70V in-line connection: 40 / 20 / 10 / 5 / 2,5W
• Sensitivity (1W/1m): 89 dB SPL
• Plastic back cover (back can) included
• Includes tile bridge anchors for false ceiling mounting
• Dimensions (ØxD): 232 x 170 mm
• Available in white (RAL9010) finish
• Weight: 2.3kg

• Effective Freq. Range

  61 Hz-20 kHz (-10dB)

  Coverage angle / Dispersion

  124°conical

  Power handling

  40 W RMS / 160 W Peak

  Sensitivity

  89 dB (1W/1m)

  Maximum SPL

  105 dB continuous / 111 dB peak

  Power options (Hi Z Multi-tap)

  100V: 40W / 20W / 10W / 5W / 8Ω
  70V: 40W / 20W / 10W / 5W / 2,5W / 8Ω

  Recommended amplifier power

  80 W RMS

• Installation options

  Ceiling

  Grille material

  Paintable aluminium

  Operating temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Operating humidity

  <85% HR

  Storage temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Storage humidity

  <90% HR

  External diameter

  232 mm / 9.13 in

  Internal diameter

  205 mm / 8.07 in

  Recommended cut out diameter

  206 mm / 8,11"

  Required depth

  170 mm / 6.69"

  Ceiling thickness

  10mm / 0.39" min
  50mm / 1.97" max

  Included accessories

  Back-can and tile bridge

  Finished colour

  White (RAL 9010)

  Dimensions

  232 x 170 mm / 9.1 x 6.7 in. (ØxD)

  Weight

  2.3 kg / 5 lb

  Pieces per box

  Pair

  Shipping dimensions

  285 x 225 x 555 mm / 11.22 x 8.86 x 21.85 in. (WxHxD)
