KATEGORIJA

• Ozvučenje
• Zvučne Kutije
• Instalacijski zvučnici

DIMENZIJE

š: x v: x d: x m: kg

TAGOVI

Zvučnici

Ugradbeni Zvučnici

ecler

SPECIFIKACIJE

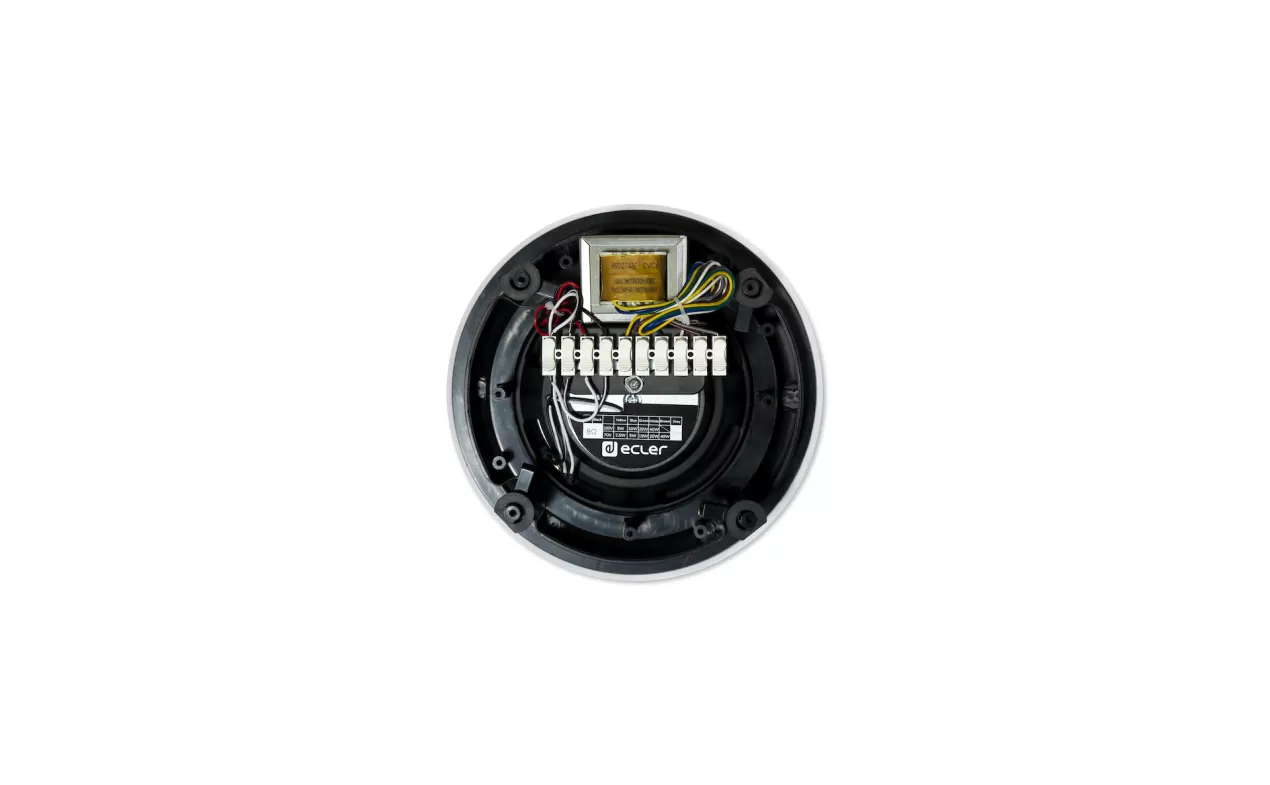

• 2-way false ceiling loudspeaker
• 6” polypropylene woofer
• 0,5” steerable tweeter
• 40WRMS @ 8 ohm
• 100V/70V in-line connection: 40 / 20 / 10 / 5 / 2,5W
• Sensitivity (1W/1m): 89 dB SPL
• Dimensions (ØxD): 232x105mm
• Available in white (RAL9010) finish
• Weight: 1.8 kg

• Effective Freq. Range

  61 Hz-20 kHz (-10dB)

  Coverage angle / Dispersion

  124° conical

  Power handling

  40 W RMS / 160 W Peak

  Sensitivity

  89 dB (1W/1m)

  Maximum SPL

  105 dB continuous / 111 dB peak

  Power options (Hi Z Multi-tap)

  100V: 40W / 20W / 10W / 5W / 8Ω
  70V: 40W / 20W / 10W / 5W / 2,5W / 8Ω

  Recommended amplifier power

  80 W RMS

• Installation options

  Ceiling

  Grille material

  Paintable aluminium

  Operating temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F


  Operating humidity

  <85% HR


  Storage temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F


  Storage humidity

  <90% HR


  External diameter

  232 mm / 9.13"

  Internal diameter

  205 mm / 8.07"

  Recommended cut out diameter

  206 mm / 8,11"

  Required depth

  110 mm / 4.33"

  Ceiling thickness

  10mm / 0.39" min
  50mm / 1.97" max

  Finished colour

  White (RAL 9010)

  Dimensions

  232 x 105 mm / 8.07 x 4.13 in. (ØxD)

  Weight

  1.8 kg / 3.97 lb

  Pieces per box

  Pair

  Shipping dimensions

  250 x 260 x 250 mm / 9.84 x 10.24 x 9.84 in. (WxHxD)

  Shipping weight

  4.0 kg / 8.82 lb
