SPECIFIKACIJE

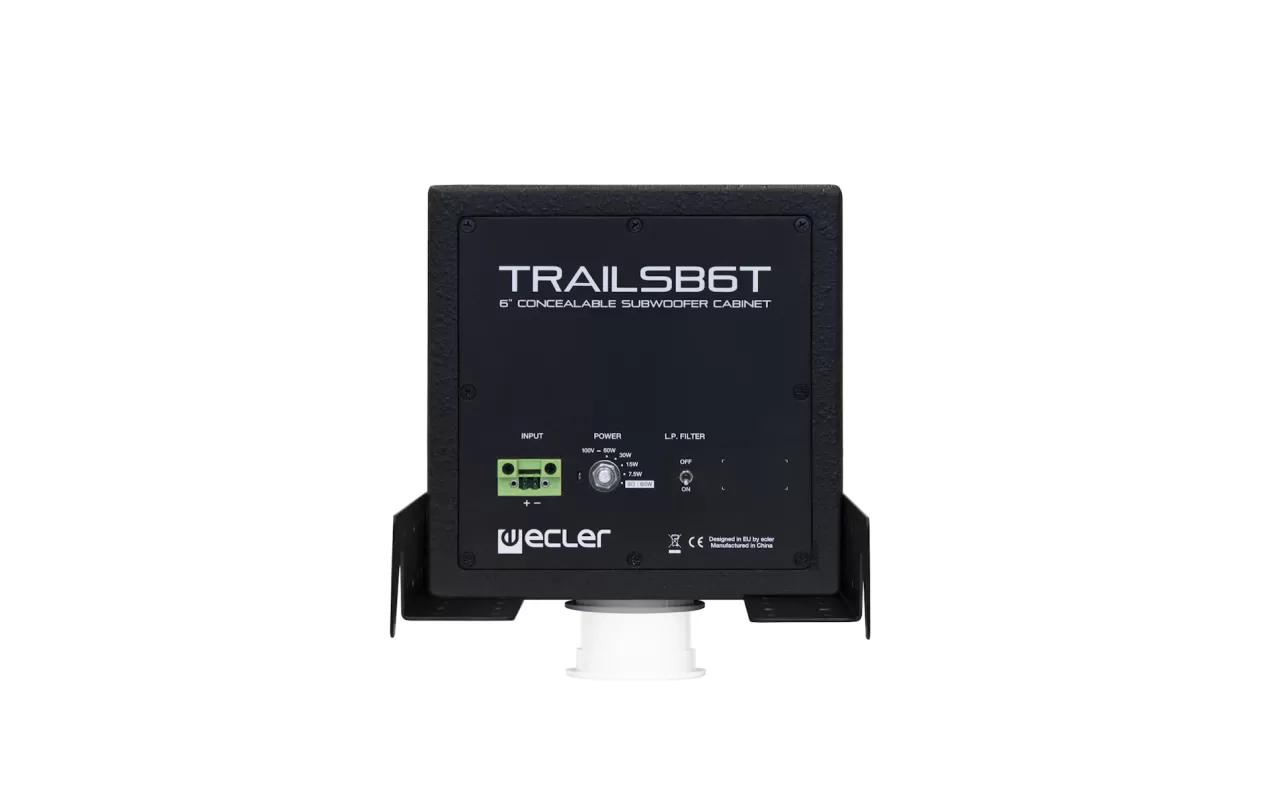

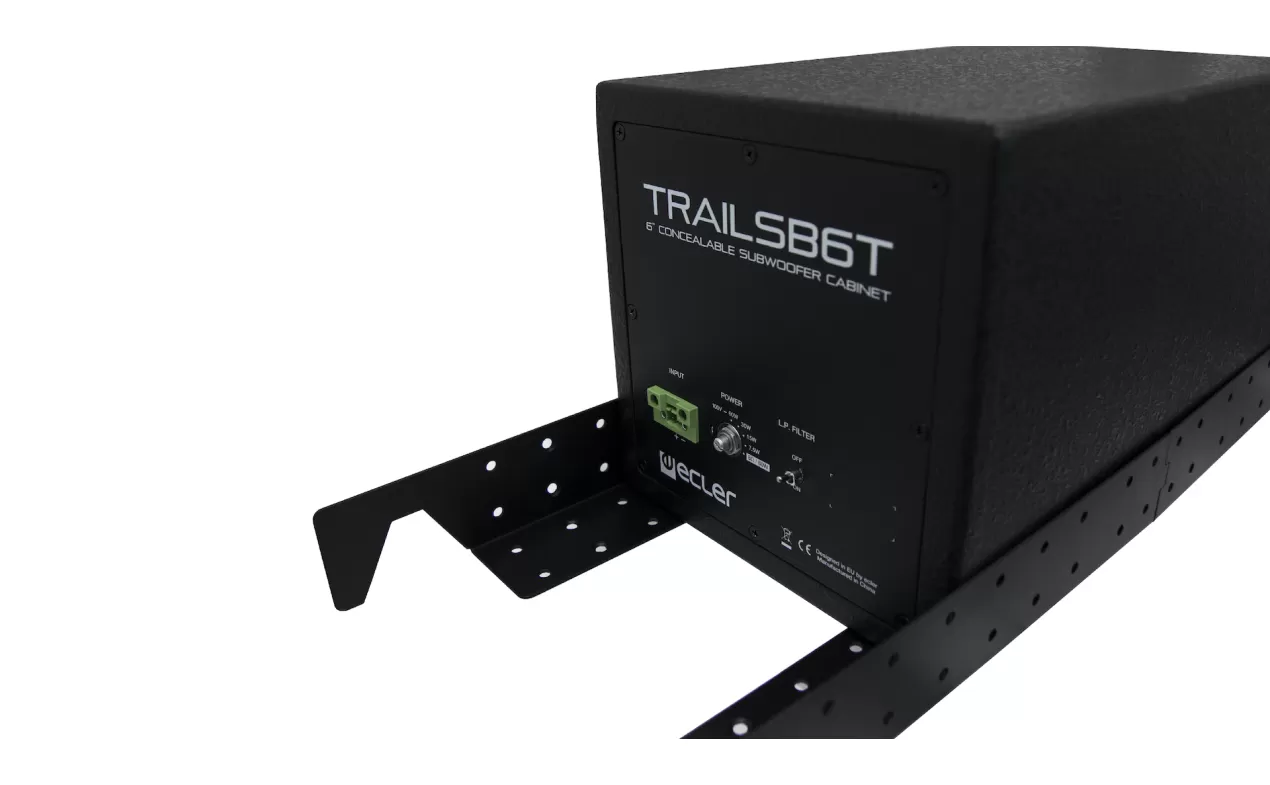

• Wooden subwoofer reinforcement for TRAIL103-type cabinets, in-ceiling loudspeakers or small surface-mount cabinets
• Concealed in false ceilings or partition walls, on walls’ surface, etc
• Coupling pipe for false ceilings and grid included
• Installation accessories included
• Available in black

• Effective Freq. Range

  50-260Hz (-10dB)

  Power handling

  60 W RMS / 240 W Peak

  Sensitivity

  86 dB (1W/1m)

  Maximum SPL

  106 dB continuous / 112 dB peak

  Power options (Hi Z Multi-tap)

  100V: 60W / 30W / 15W / 7,5W / 8Ω
  70V: 30W / 15W / 7,5W / 3,75W / 8Ω

  Recommended amplifier power

  120 W RMS

• Connection type

  Euroblock input connector

  Power type selector

  Rear panel selector

  Installation options

  Concealed in false ceilings or partition walls, on walls’ surface, etc

  Enclosure material

  Wooden - TBC

  Mounting system

  Cabinet

  Operating temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Operating humidity

  <85% HR

  Storage temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Storage humidity

  <90% HR

  Included accessories

  Coupling pipe for false ceiling and grill, installation accessories included

  Finished colour

  Black (RAL 9005)

  Dimensions

  200 x 200 x 320 mm / 7.9 x 7.9 x 12.6 in. (WxHxD)

  Weight

  6.5 kg / 14.3 lb

  Pieces per box

  Unit

  Shipping dimensions

  360 x 260 x 400 mm / 14.17 x 10.24 x 15.75 in. (WxHxD)

  Shipping weight

  8.9 kg / 19.62 lb
