SPECIFIKACIJE

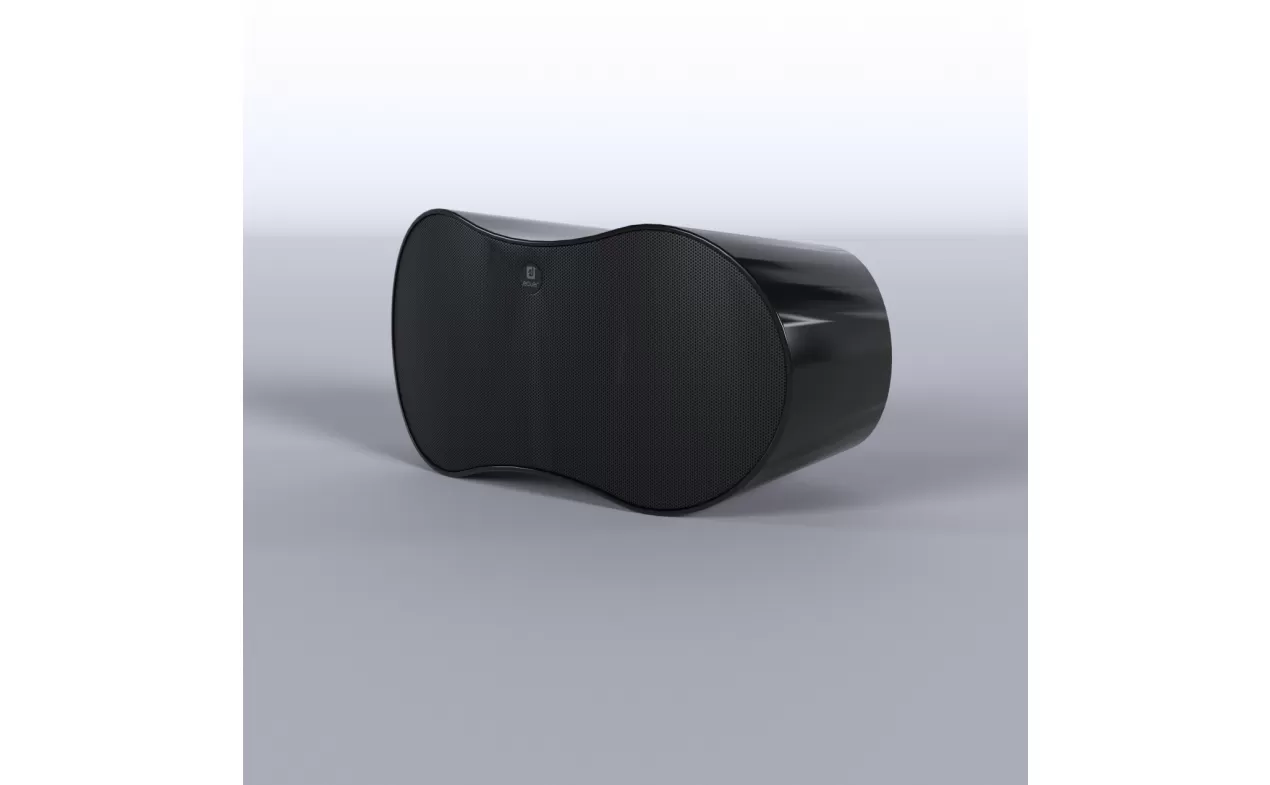

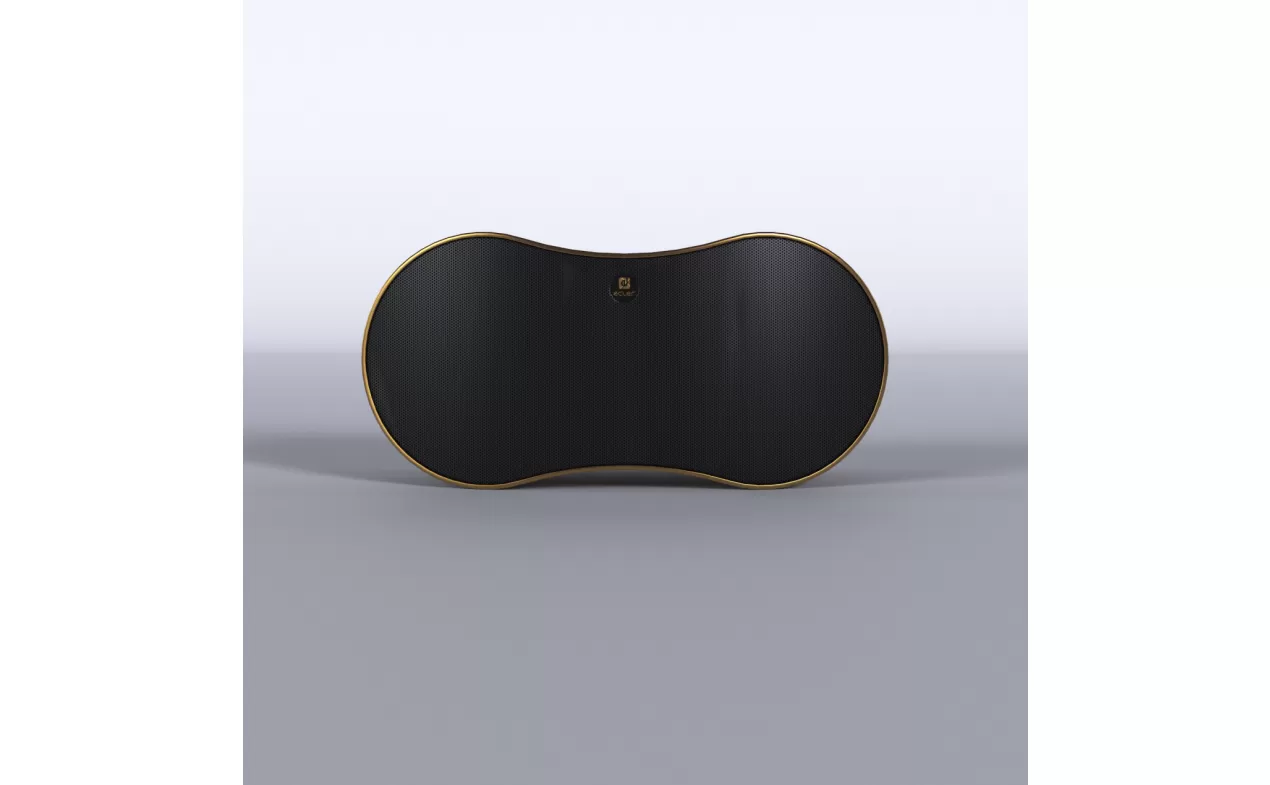

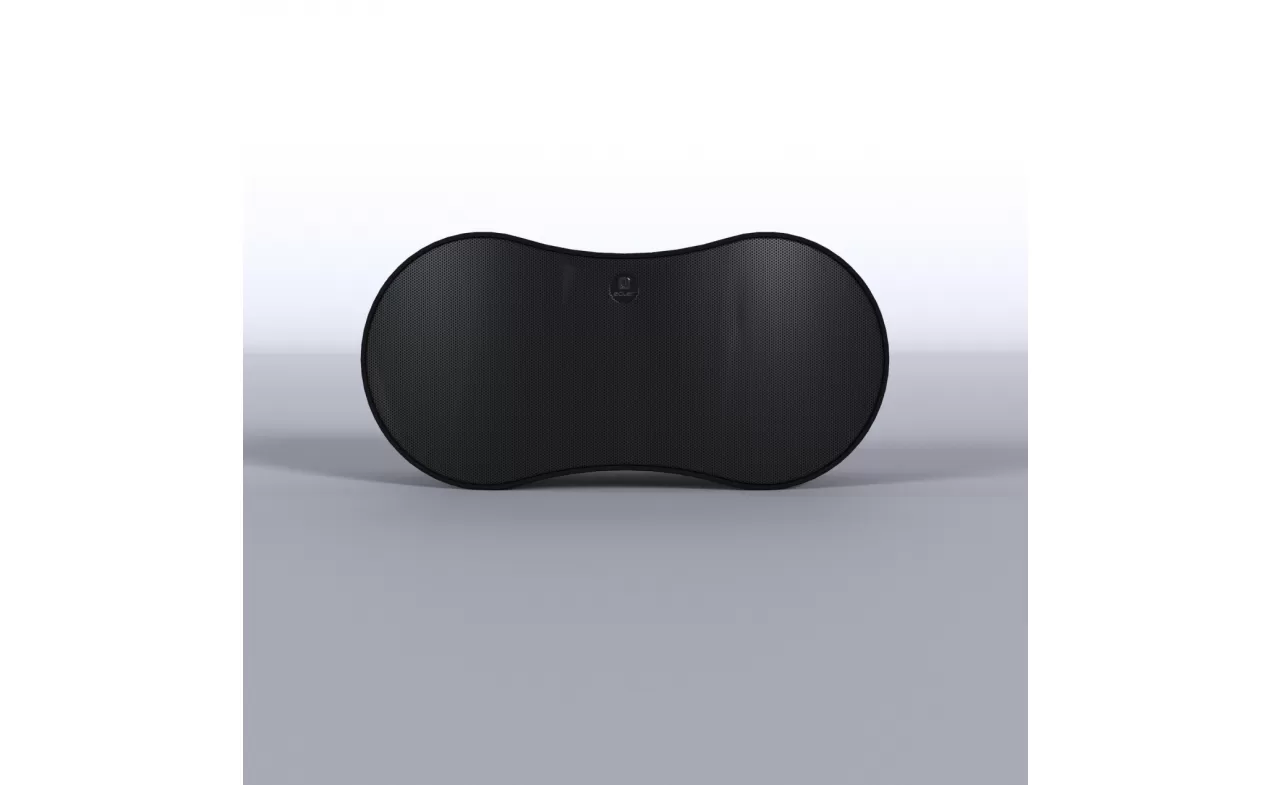

• 2-way passive loudspeaker for surface mounting
• 2x 6.5" woofers with 4-layer voice coil improves power handling and low frequency response
• 1" silk tweeter with neodymium magnet and ferrofluid
• Bass reflex port
• ABS reinforced with fiberglass non resonant compact enclosure
• Wide dispersion pattern
• Stack Output
• VEASY bracket compatible with VESA 100 included. Quick and easy to install, including jumps and markings for repeating speaker orientation.
• Weather-protected with an IP-44 rating
• Available in white (RAL9003), black (RAL9005) or gold colour (RAL1036, approx.)
• RAL paint customization available
• Ease files available

• Effective Freq. Range

  60Hz-20kHz (-10dB)

  Coverage angle / Dispersion

  210° x 228° (HxV)

  Power handling

  140W RMS / 560 W Peak

  Sensitivity

  92 db (1W/1m)

  Maximum SPL

  113 dB continuous / 119 dB peak

  Recommended amplifier power

  280W RMS

• Connection type

  Double INPUT/LINK connector, Euroblock type

  Power type selector

  Front selection by toggle switch

  Installation options

  Surface / Wall mounting

  Environmental

  IP44

  Enclosure material

  ABS reinforced with fibreglass

  Grille material

  Aluminium

  Grille fixing system

  Pressure mount system

  Mounting system

  Stainless Steel VEASY bracket

  Operating temperature

  Min: 0°C ; 32°F
  Max: 35°C ; 95°F

  Operating humidity

  <85% HR

  Storage temperature

  Min: -10°C ; 14°F
  Max: 50°C ; 122°F

  Storage humidity

  <90% HR

  Included accessories

  Wall-mount bracket, 2x Euroblock connector

  Finished colour

  White (RAL9003), Black (RAL9005), or Gold (RAL1036 approx.)

  Dimensions

  542.5 x 261 x 269 mm / 21.36 x 10.28 x 10.59 in. (WxHxD)

  Weight

  8.5 Kg / 18.74 lb

  Pieces per box

  Shipping dimensions

  640 x 445 x 390 mm / 25.20 x 17.52 x 15.35 in. (WxHxD)

  Shipping weight

  12.6 Kg / 27.78 lb
