SPECIFIKACIJE

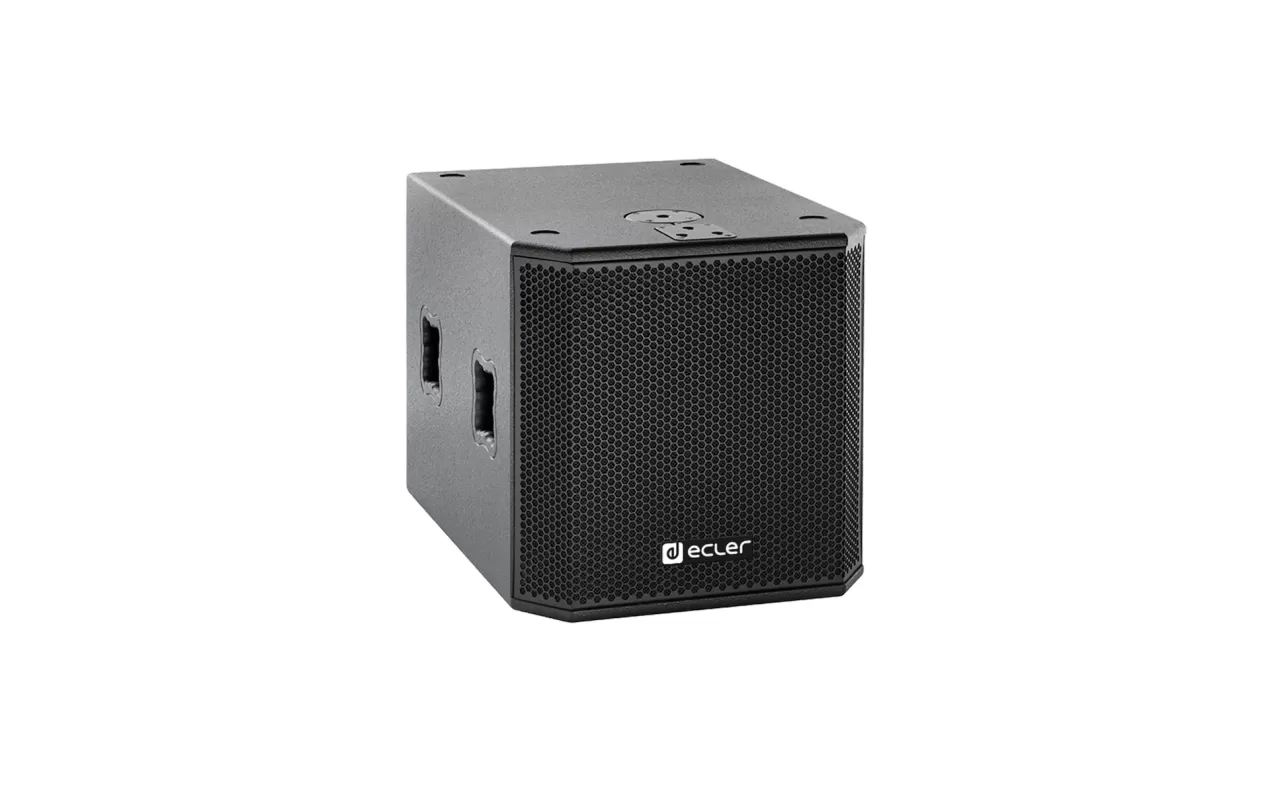

• 18” passive subwoofer with a compact design
• 500W AES
• Frequency range (-10dB): 38Hz – 250Hz
• Max. SPL: 132 dB
• 1 x input connector:
• 1 x stack output connector: Speakon®
• User control interface with LCD
• Black finish available

• Effective Freq. Range

  38Hz – 250Hz (-10dB)

  Power handling

  500 W AES / 2000 W Peak

  Sensitivity

  98dB (1W/1m)

  Maximum SPL

  132 dB

  Recommended amplifier power

  1000 W

• Connection type

  2 x Speakon (1x stack output)

  Installation options

  fixed installations and portable applications (external amplification required).

  Environmental

  IP20 rated

  Enclosure material

  15mm premium birch plywood with polyurea coating

  Operating temperature

  Min: 0°C ; 32°F
  Max: 35°C ; 95°F

  Operating humidity

  <85% HR

  Storage temperature

  Min: -10°C ; 14°F
  Max: 50°C ; 122°F

  Storage humidity

  <90% HR


  Optional accessories

  LABI1-SAC, LABI1-SWK, LABI1-SPC

  Finished colour

  Black (RAL 9005)

  Dimensions

  513 x 513 x 704 mm / 20.2 x 20.2 x 27.7 in. (WxHxD)

  Weight

  37.1 kg / 81.8 lb

  Pieces per box

  Unit

  Shipping dimensions

  540 x 550 x 740 mm / 21.26 x 21.65 x 29.13 in. (WxHxD)

  Shipping weight

  40.7 kg / 89.73 lb
