KATEGORIJA

• Ozvučenje
• Zvučne Kutije
• Instalacijski zvučnici

DIMENZIJE

š: x v: x d: x m: kg

TAGOVI

Zvučnici

Ugradbeni Zvučnici

ecler

SPECIFIKACIJE

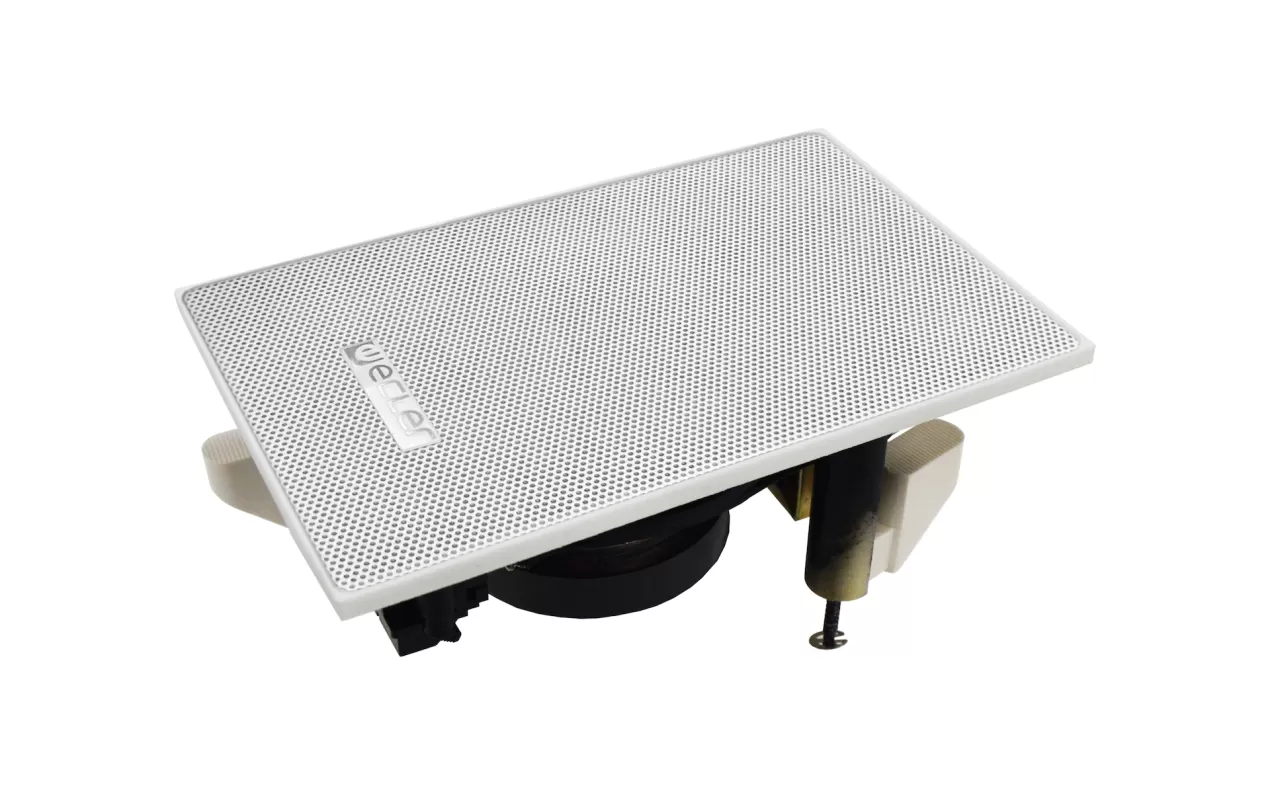

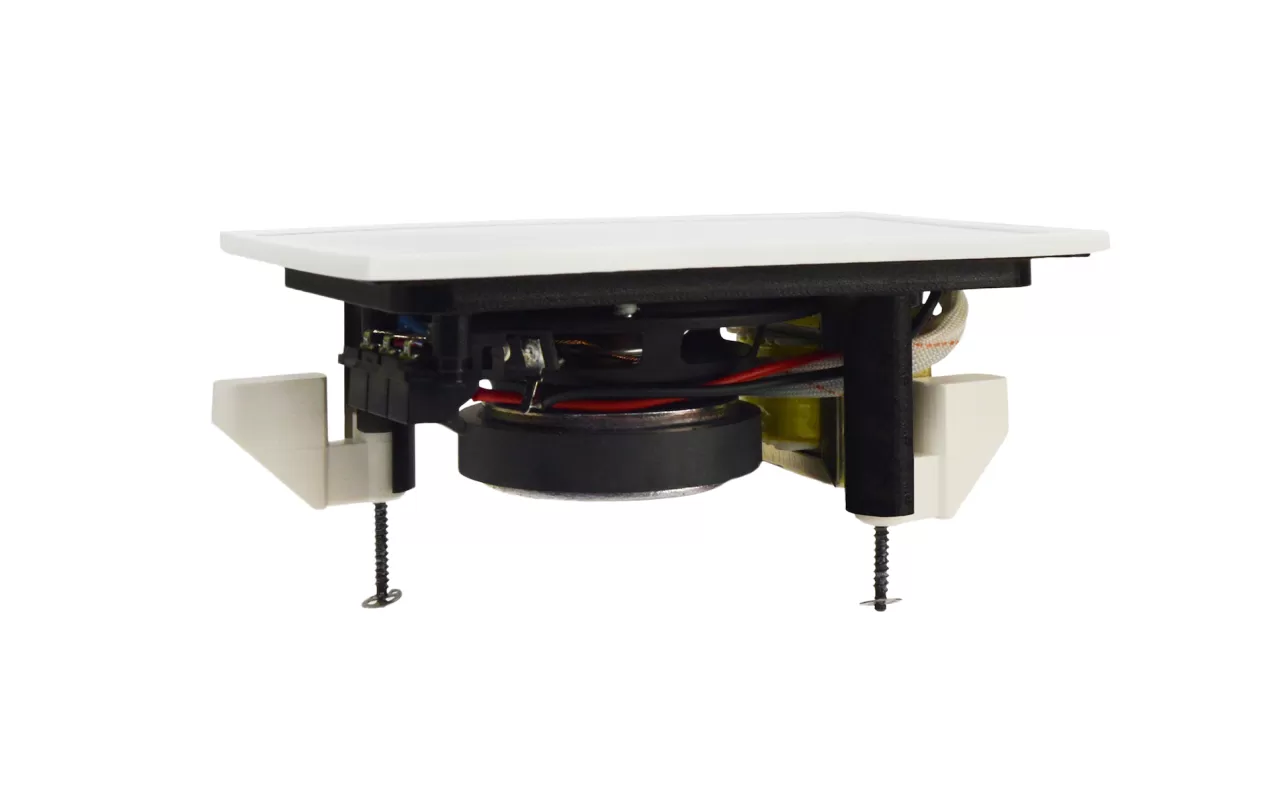

• Rectangular shaped loudspeaker for in-ceiling/in-wall installation
• 3” woofer
• 15W/30W @ 100V selector
• Spring loaded input terminals
• White finish
• EASE files available

• Effective Freq. Range

  83 Hz-20 kHz (-10dB)

  Coverage angle / Dispersion

  158°x158° (HxV)

  Power handling

  30 W RMS / 120 W Peak

  Sensitivity

  84 dB (1W/1m)

  Maximum SPL

  99 dB continuous / 105 dB peak

  Power options (Hi Z Multi-tap)

  100V: 30W / 15W

  Recommended amplifier power

  60 W RMS

• Connection type

  Spring terminals

  Power type selector

  Changing the position of the terminals

  Installation options

  Wall or false ceiling

  Enclosure material

  ABS

  Grille material

  Aluminium, paintable

  Operating temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Operating humidity

  <85% HR

  Storage temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Storage humidity

  <90% HR

  Recommended cut out diameter

  147 x 95 mm / 5.79"x3.74"

  Required depth

  80 mm / 3,14”

  Ceiling thickness

  2mm / 0.078” min
  40mm / 1.57” max

  Finished colour

  White (RAL 9003)

  Dimensions

  110 x 165 x 80 mm / 4.33 x 6.5 x 3.15 in. (WxHxD)

  Weight

  0.9 kg / 1.98 lb

  Pieces per box

  8 units

  Shipping dimensions

  120 x 100 x 180 mm / 4.72 x 3.94 x 7.07 in. (WxHxD)

  Shipping weight

  1.0 kg / 2.2 lb
