KATEGORIJA

• Ozvučenje
• Zvučne Kutije
• Instalacijski zvučnici

DIMENZIJE

š: x v: x d: x m: kg

TAGOVI

Zvučnici

Ugradbeni Zvučnici

ecler

SPECIFIKACIJE

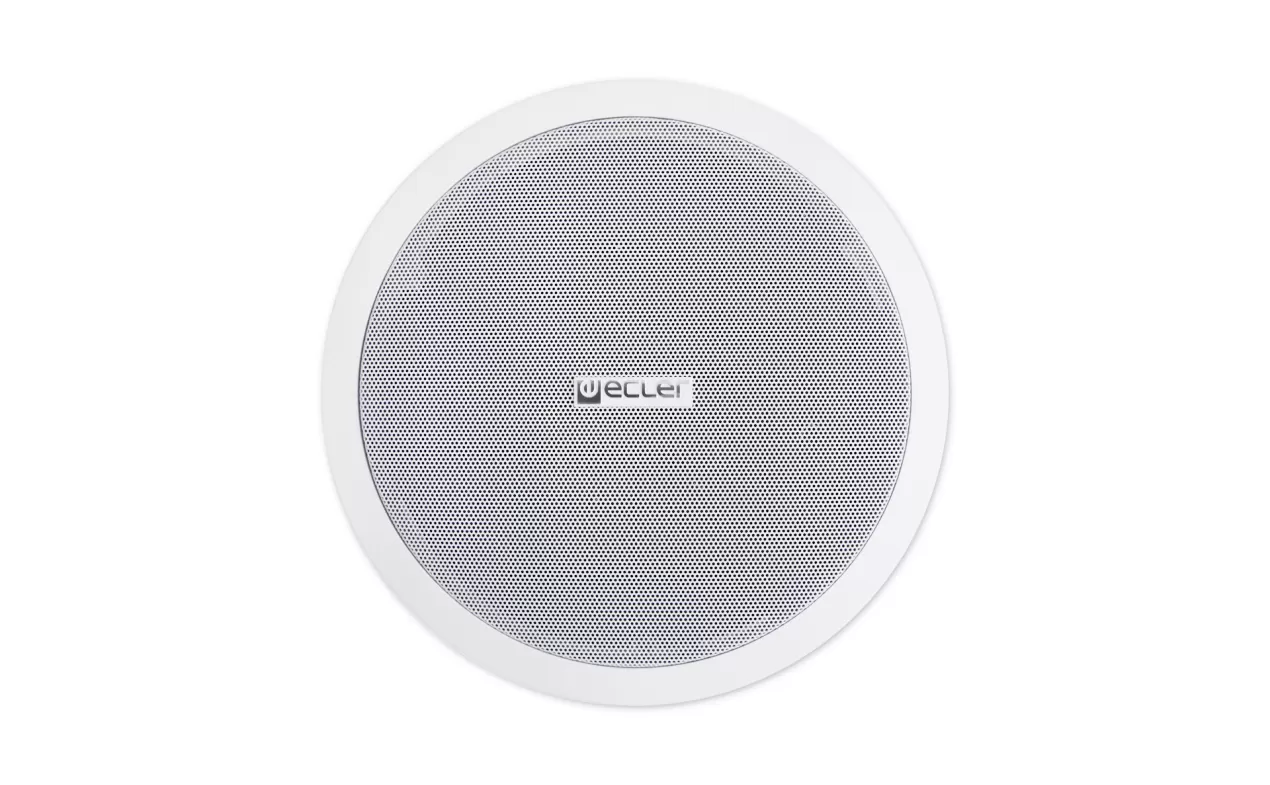

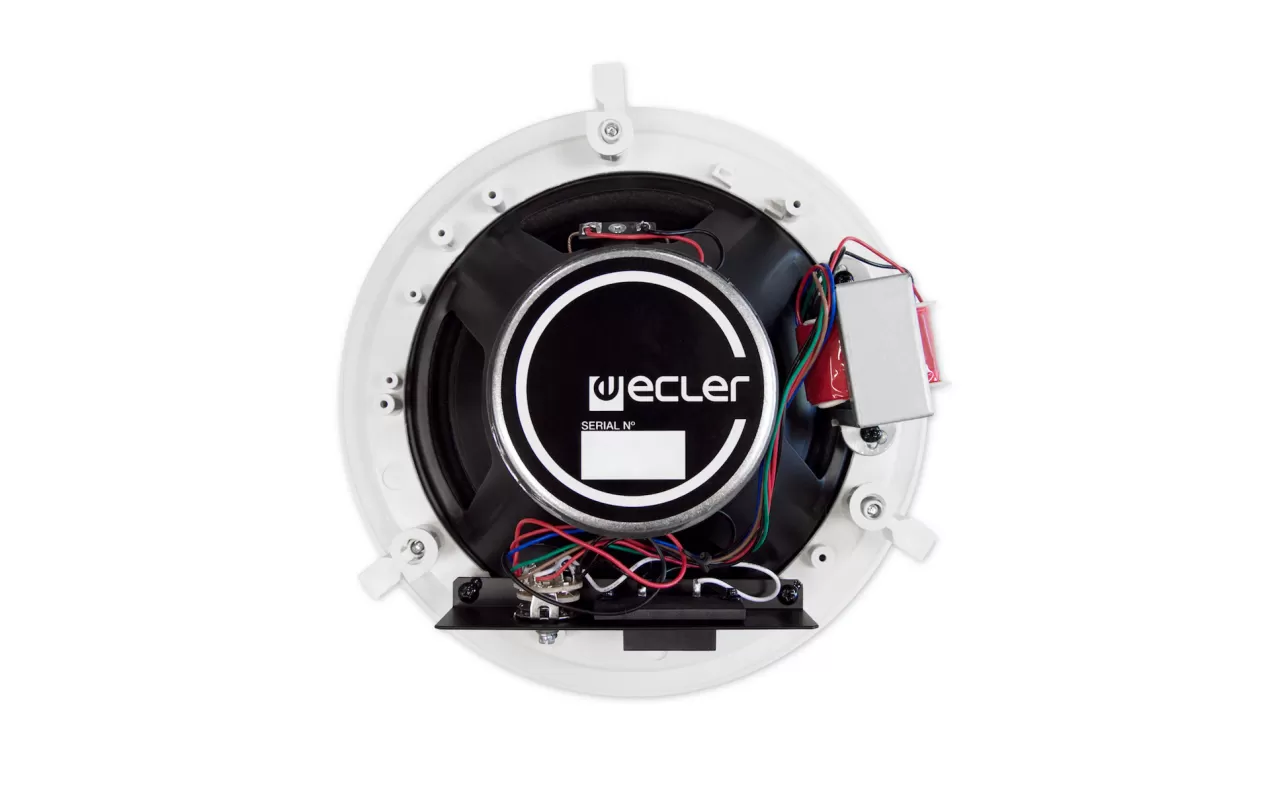

• 2 way speaker for false ceilings
• 8” polypropylene woofer
• 25mm tweeter
• Power: 60W RMS @ 8 ohm
• Sensitivity (1W/1m): 94 dB SPL
• Built-in transformer
• External diameter: 245mm
• Cut out diameter: 222mm
• Available in white (RAL9010) finish
• Installation system: Three revolving fasteners

• Effective Freq. Range

  65 Hz-20 kHz (-10dB)

  Coverage angle / Dispersion

  135°

  Power handling

  60 W RMS / 240 W Peak

  Sensitivity

  94 dB (1W/1m)

  Maximum SPL

  112 dB continuous / 118 dB peak

  Power options (Hi Z Multi-tap)

  100V: 30W / 15W / 7,5W / 5W / 8Ω
  70V: 15W / 7,5W / 3,75W / 2,5W / 8Ω

  Recommended amplifier power

  120 W RMS

• Connection type

  Clip-type input terminals

  Installation options

  In-ceiling, in-wall

  Enclosure material

  ABS

  Grille material

  Aluminium rust proof

  Mounting system

  3 rotating tabs

  Operating temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Operating humidity

  <85% HR

  Storage temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Storage humidity

  <90% HR

  External diameter

  245 mm / 9.64"

  Internal diameter

  219 mm / 8.62"

  Recommended cut out diameter

  222 mm / 8.74"

  Required depth

  91 mm / 3.58"

  Ceiling thickness

  5mm / 0.19” min
  20mm / 0.78” max


  Included accessories

  Cutting and painting templates included

  Finished colour

  White (RAL 9010)

  Weight

  2.3 kg / 5.07 lb

  Pieces per box

  2 units

  Shipping dimensions

  290 x 290 x 260 mm / 11.41 x 11.41 x 10.23 in. (WxHxD)

  Shipping weight

  2.60 kg / 5.73 lb
