Name: ECLER - IC6 - 2-stazni zvučnik
Brand: ECLER

+385916396531

ECLER

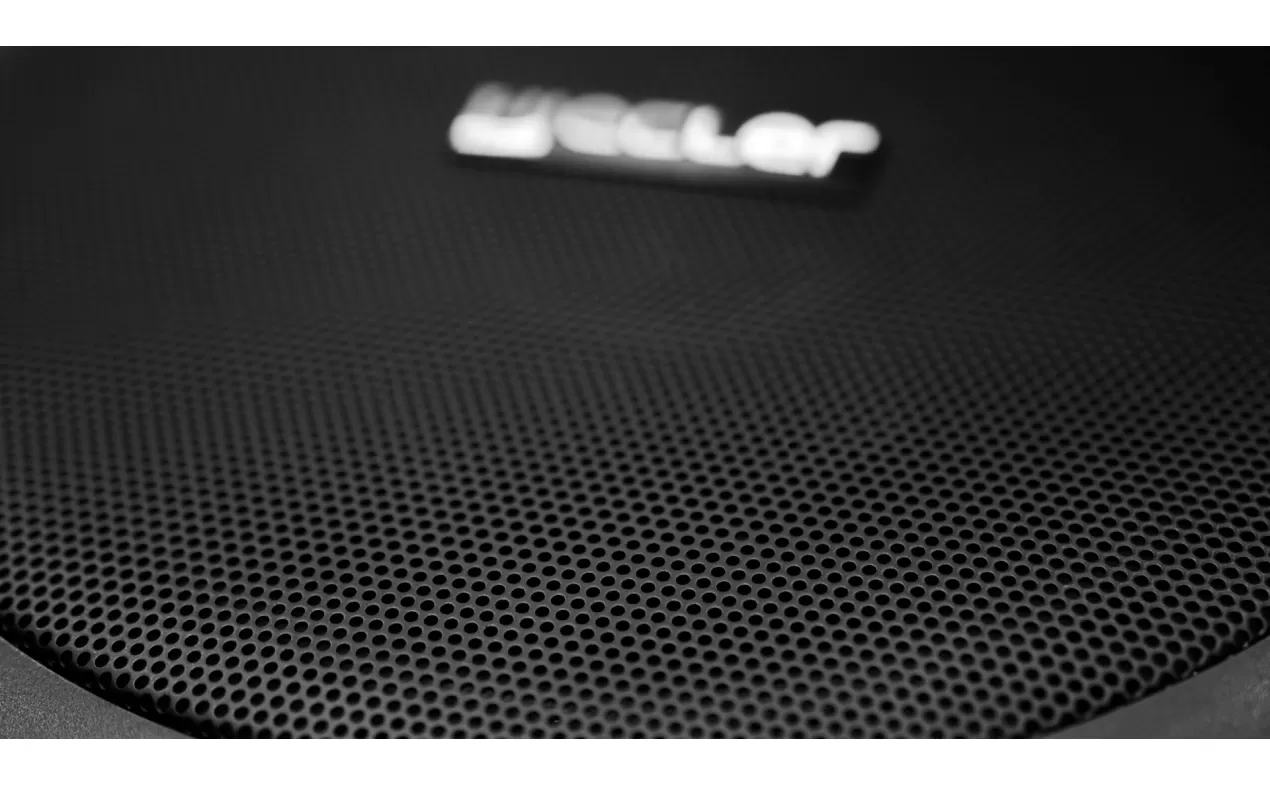

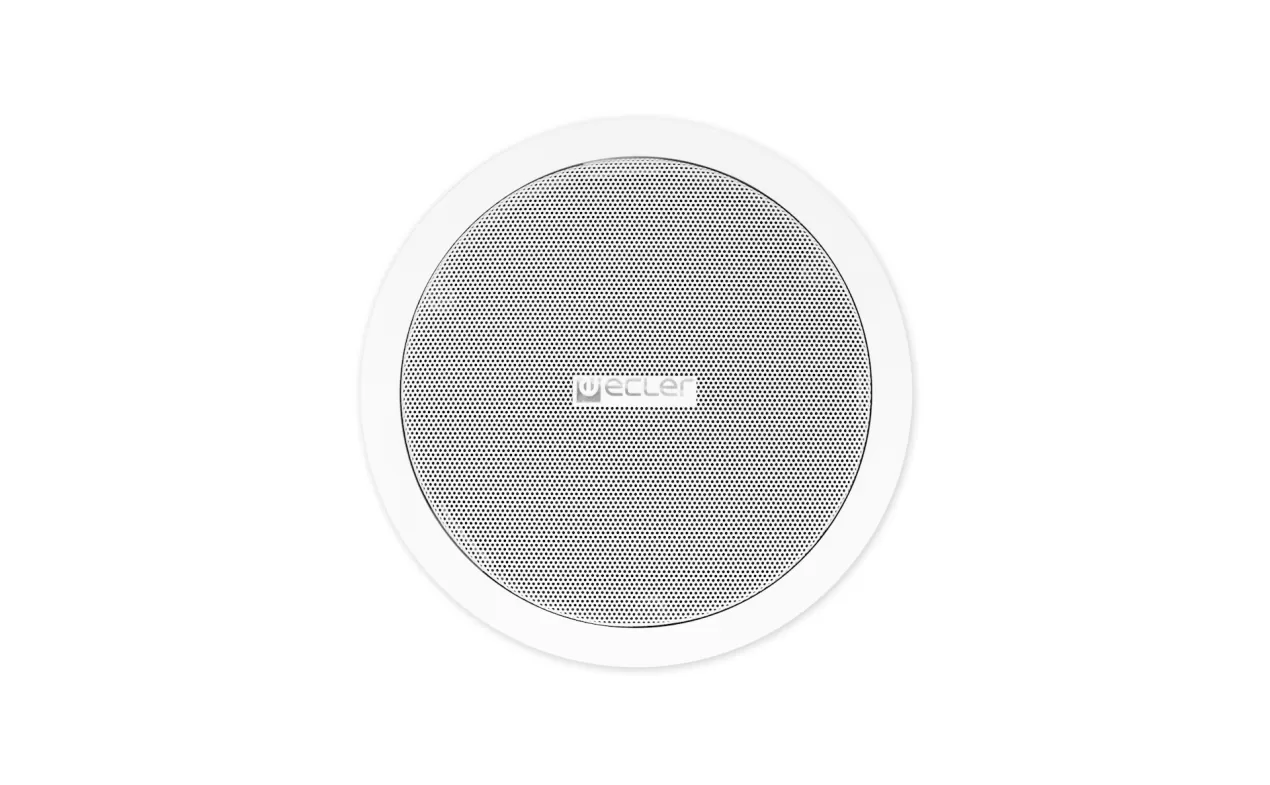

ECLER - IC6 - 2-stazni zvučnik

ŠIFRA PROIZVODA: CIC6

2-stazni zvučnik koji je savršena opcija za 70/100V i zvučna rješenja niske impedancije.

Serija IC pruža izvrsnu kvalitetu zvuka zahvaljujući svojoj filozofiji beskonačnog odbijanja i visokofrekventnom pretvaraču vrhunskih performansi.

85.00 €

Fiksni tečaj konverzije: 1 € = 7,53450 kn

Za sve naše veleprodajne kupce unutar Zagrebačke županije vršimo BESPLATNU DOSTAVU na Vaš kućni prag !!!

iznad 66,36 € (500 Kn) dostava je besplatna na području CIJELE HRVATSKE!

Zatražite ključ u ruke

Specifikacije proizvoda

KATEGORIJA

Ozvučenje
Zvučne Kutije
Instalacijski zvučnici

DIMENZIJE

š: x v: x d: x m: kg

TAGOVI

Zvučnici

Ugradbeni Zvučnici

ecler

SPECIFIKACIJE

2 way speaker for false ceilings
6” polypropylene woofer
25mm tweeter
Power: 40W RMS @ 8 ohm
Sensitivity (1W/1m): 93 dB SPL
Built-in transformer
External diameter: 204mm
Cut out diameter: 180mm
Available in black (RAL9005) or white (RAL9010) finish
Installation system: Three revolving fasteners
Effective Freq. Range
75 Hz- 20 kHz (-10dB)
Coverage angle / Dispersion
145°x145° (HxV)
Power handling
40 W RMS / 160 W Peak
Sensitivity
93 dB (1W/1m)
Maximum SPL
109 dB continuous / 115 dB peak
Power options (Hi Z Multi-tap)
100V: 15W / 7,5W / 5W / 2,5W / 8Ω
70V: 7,5W / 3,75W / 2,5W / 1,25W / 8Ω
Recommended amplifier power
80 W RMS
Connection type
Clip-type input terminals
Power type selector
Rotary power tap selector
Installation options
In-ceiling, in-wall
Enclosure material
ABS
Grille material
Aluminium rust proof
Mounting system
3 rotating tabs
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity
<90% HR
External diameter
204 mm / 8.03"
Internal diameter
178 mm / 7.00"
Recommended cut out diameter
180 mm / 7.40"
Required depth
> 73 mm / 2.87"
Ceiling thickness
5mm / 0.19" min
20mm / 0.78" max
Included accessories
Cutting and painting templates included
Finished colour
White (RAL 9010) or Black (RAL 9005)
Weight
1.5 kg / 3.30 lb
Pieces per box
2 units
Shipping dimensions
240 x 250 x 220 mm / 9.4 x 9.8 x 8.66 in. (WxHxD)
Shipping weight
1.90 kg / 4.18 lb
