Name: ECLER - IC3 - stropni zvučnik
Brand: ECLER

ECLER

ECLER - IC3 - stropni zvučnik

ŠIFRA PROIZVODA: CIC3BK

Stropni zvučnik s izvrsnim zvučnim performansama unatoč svom kompaktnom dizajnu - oblik halogenog svjetla.

Serija IC pruža izvrsnu kvalitetu zvuka zahvaljujući svojoj filozofiji beskonačnog odbijanja i visokofrekventnom pretvaraču vrhunskih performansi.

60.00 €

Fiksni tečaj konverzije: 1 € = 7,53450 kn

Za sve naše veleprodajne kupce unutar Zagrebačke županije vršimo BESPLATNU DOSTAVU na Vaš kućni prag !!!

iznad 66,36 € (500 Kn) dostava je besplatna na području CIJELE HRVATSKE!

KATEGORIJA

Ozvučenje
Zvučne Kutije
Instalacijski zvučnici

DIMENZIJE

š: x v: x d: x m: kg

TAGOVI

Zvučnici

Ugradbeni Zvučnici

ecler

SPECIFIKACIJE

1 way speaker for false ceilings
3” polypropylene woofer
Power: 25W RMS @ 8 ohm
Sensitivity (1W/1m): 86 dB SPL

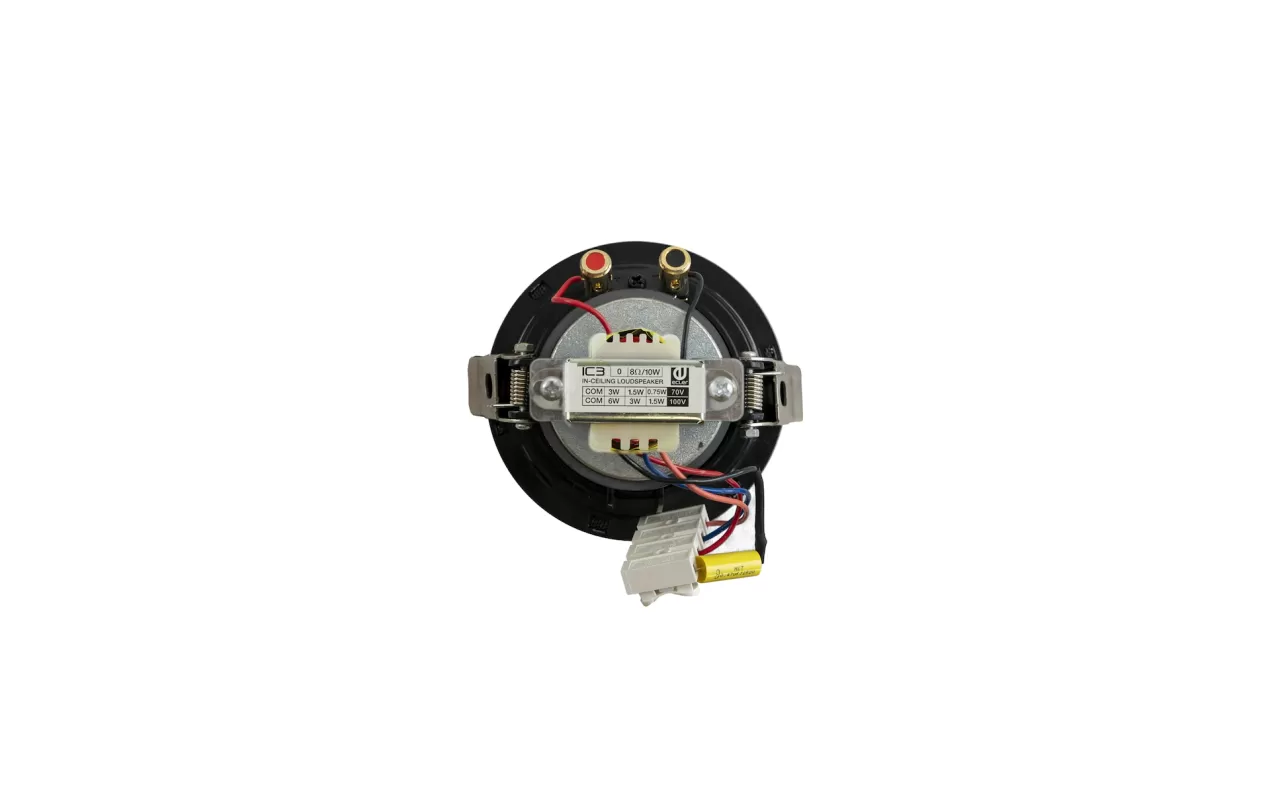

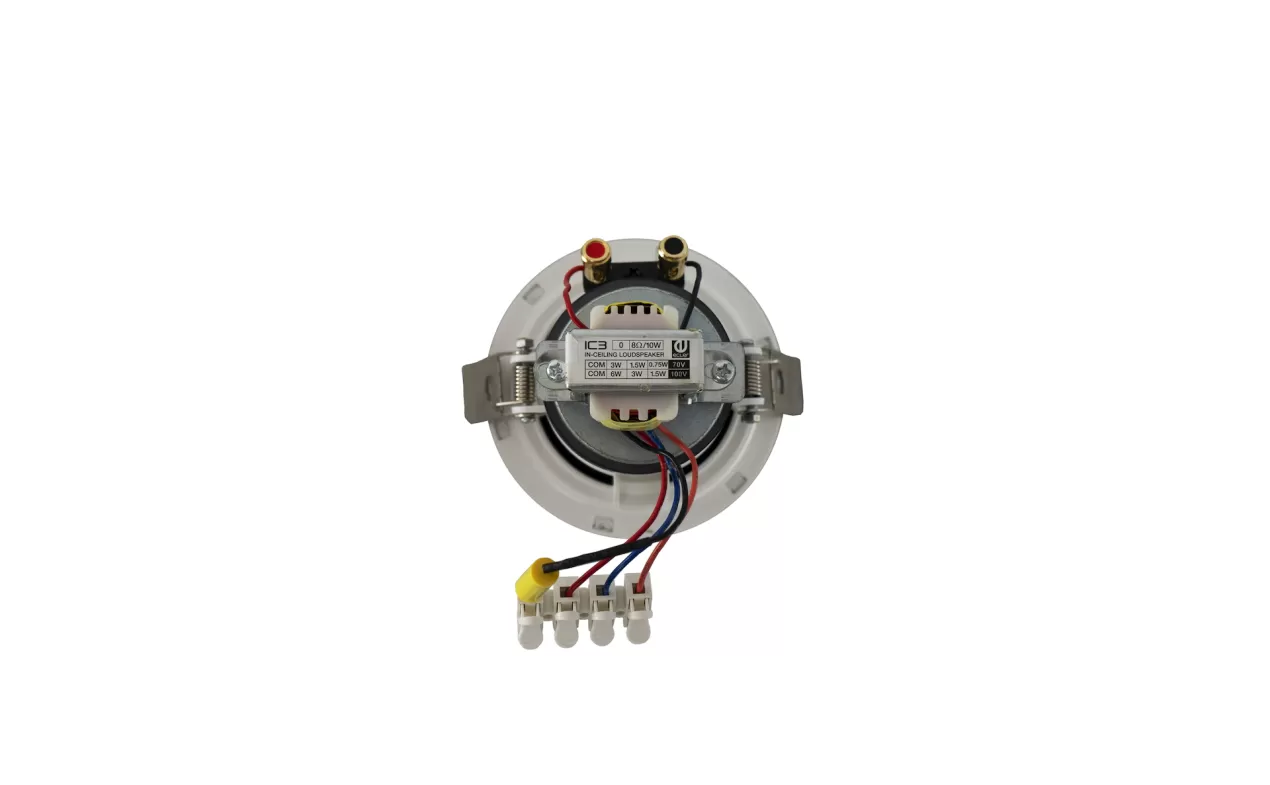

Built-in transformer
External diameter: 105mm
Cut out diameter: 90mm

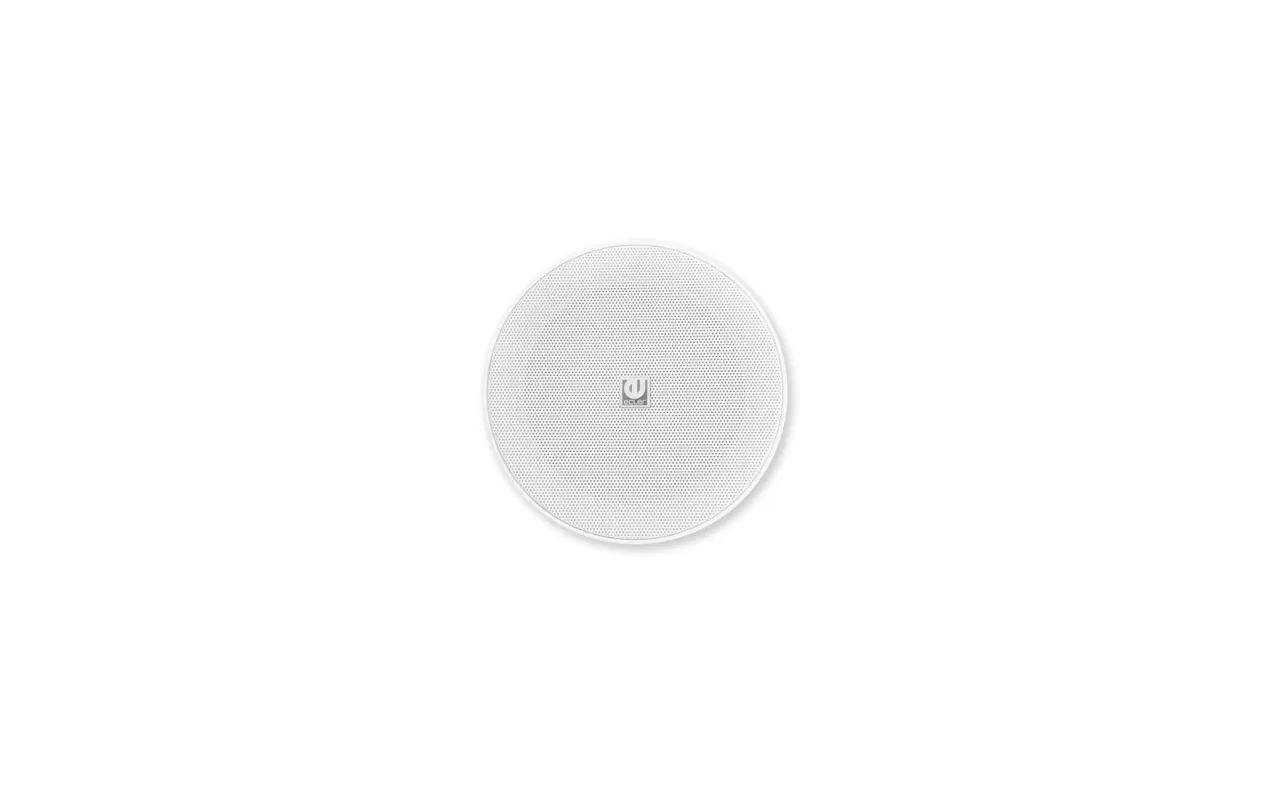

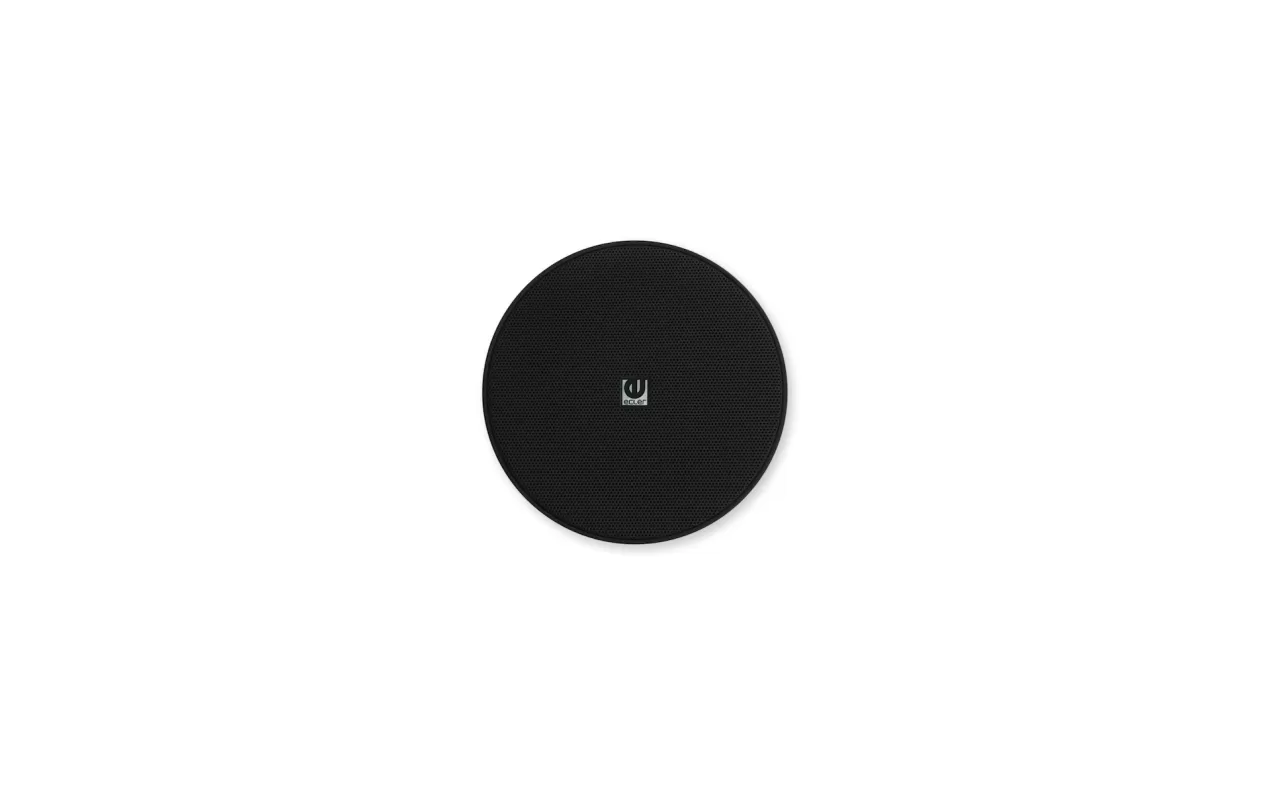

Available in black (RAL9004) or white (RAL9003) finish
Installation system: spring clips (installation without tools)
Effective Freq. Range
110 Hz-20 kHz (-10dB)
Coverage angle / Dispersion
147°x147° (HxV)
Power handling
10 W RMS / 40 W Peak
Sensitivity
86 dB (1W/1m)
Maximum SPL
96 dB continuous / 102 dB peak
Power options (Hi Z Multi-tap)
100V: 6W / 3W / 1,5W / 8Ω
70V: 3W / 1,5W / 0,75W / 8Ω
Recommended amplifier power
20 W RMS

Connection type

Terminal block

Power type selector

Built-in selector

Installation options

Ceiling, wall

Enclosure material

ABS

Grille material

Aluminium rust proof

Mounting system

Spring clips (installation without tools)

Operating temperature

Min: -10°C ; 14°F
Max: 40°C ; 104°F

Operating humidity

<85% HR

Storage temperature

Min: -10°C ; 14°F
Max: 40°C ; 104°F

Storage humidity

<90% HR

External diameter

100 mm / 3.94"

Internal diameter

85 mm / 3.35"

Recommended cut out diameter

85 mm / 3.35"

Required depth

95 mm / 3.74"

Ceiling thickness

No limit min
50mm / 1.96” max

Finished colour

White (RAL 9003) or black (RAL 9004)

Weight

0.5 kg / 1.10 lb

Pieces per box

2 units

Shipping dimensions

120 x 130 x 230 mm / 4.7 x 5.1 x 9.0 in. (WxHxD)

Shipping weight

0.6 kg. / 4.18 lb
