SPECIFIKACIJE

• 2 balanced microphone input mixable with the selected music program (MIC1 and MIC2/LINE ST inputs)
• 3 line inputs for music sources
• Integrated audio player (supporting mp3 format) with USB and SD CARD slots for media storage devices

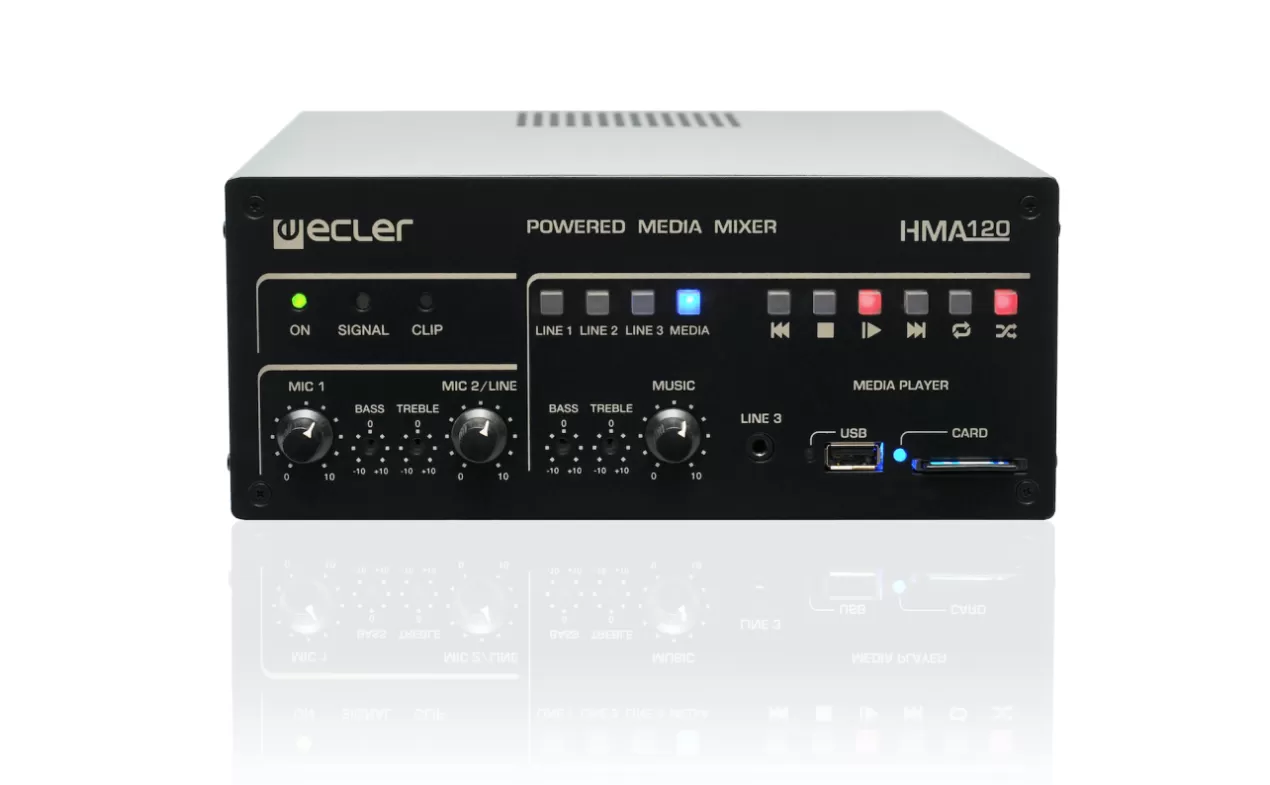

• Music program selector on the front panel: LINE1, LINE2, LINE3, MEDIA (integrated player)
• Noise gate and two-level priority system (Talkover 1 and Talkover 2) for MIC1 and MIC2/LINE inputs
• Independent level controls on the front panel for MIC1, MIC2/LINE and MUSIC signals
• 2-band EQ (BASS/TREBLE) for MIC1 and MIC2/LINE and 2-band EQ for program MUSIC signal

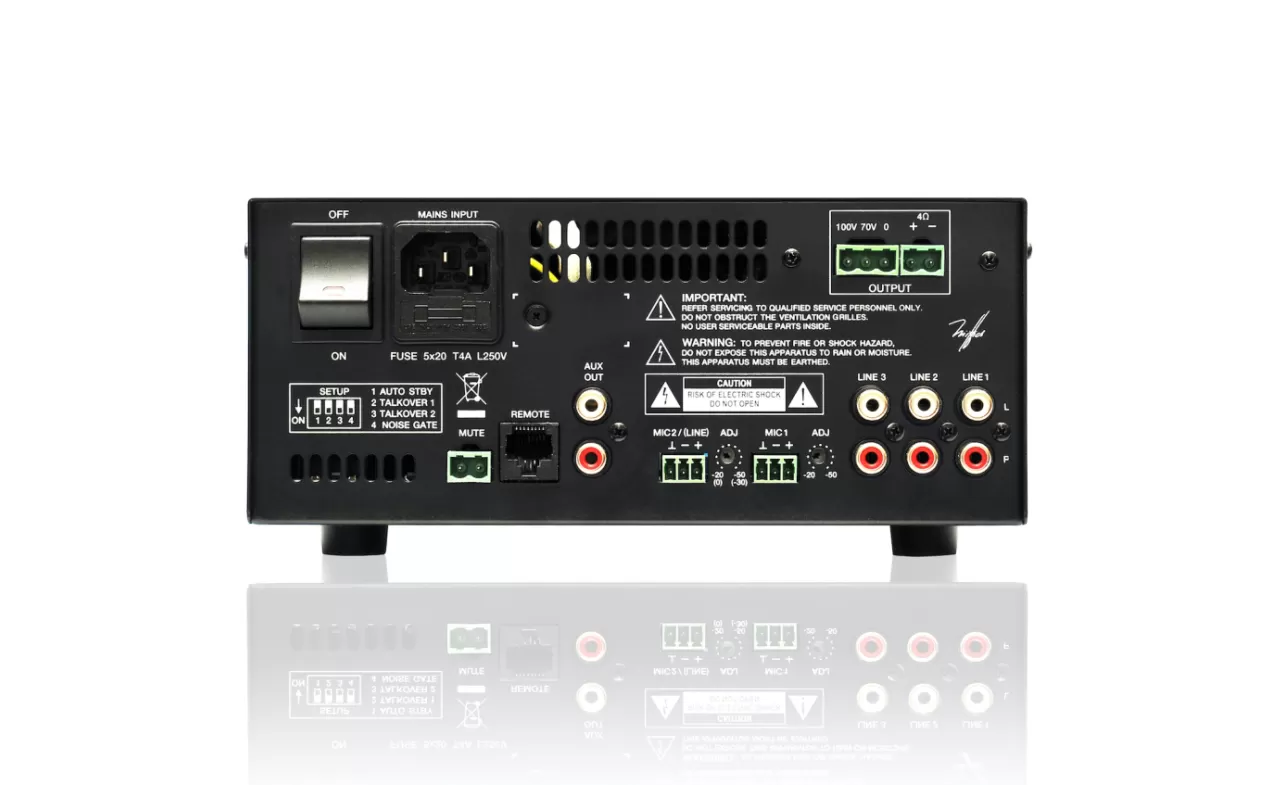

• REMOTE port for connecting WPa series wall panels, 0 - 10VDC (source selection and volume)
• MUTE port to remotely mute the unit from an external device, via dry contact closure
• Auxiliary Output
• Auto Stand-by function

• Number of output channels

  1 + 1 AUX

  Output connection type

  Euroblock

  Output configuration

  1 x 120W @ 4Ω or 70V/100V

  Number of input channels

  5

  Input connection type

  MIC: balanced Euroblock
  LINE: unbalanced double RCA (or minijack on duplicated LINE3)

  Input configuration

  1 MIC input
  1 MIC/LINE input
  3 LINE inputs

• Number of input ports

  5, MIC/LINE level

  Connection type

  Euroblock and double RCA

  Input sensitivity

  LINE1-2: 0dBV
  LINE3: -6dBV
  MIC1-2 (BAL): -20 to -50dBV

  Input impedance

  LINE1-3: >70kΩ
  MIC1-2:>4.5kΩ
  LINE (internally selectable): 4.5kΩ

  CMRR

  MIC1-2 (BAL): >70dB @ 1kHz

  Phantom power

  +15VDC / 8mA max (internally selectable)
