KATEGORIJA

• Ozvučenje
• Zvučne Kutije
• Instalacijski zvučnici

DIMENZIJE

š: x v: x d: x m: kg

TAGOVI

Zvučnici

ecler

SPECIFIKACIJE

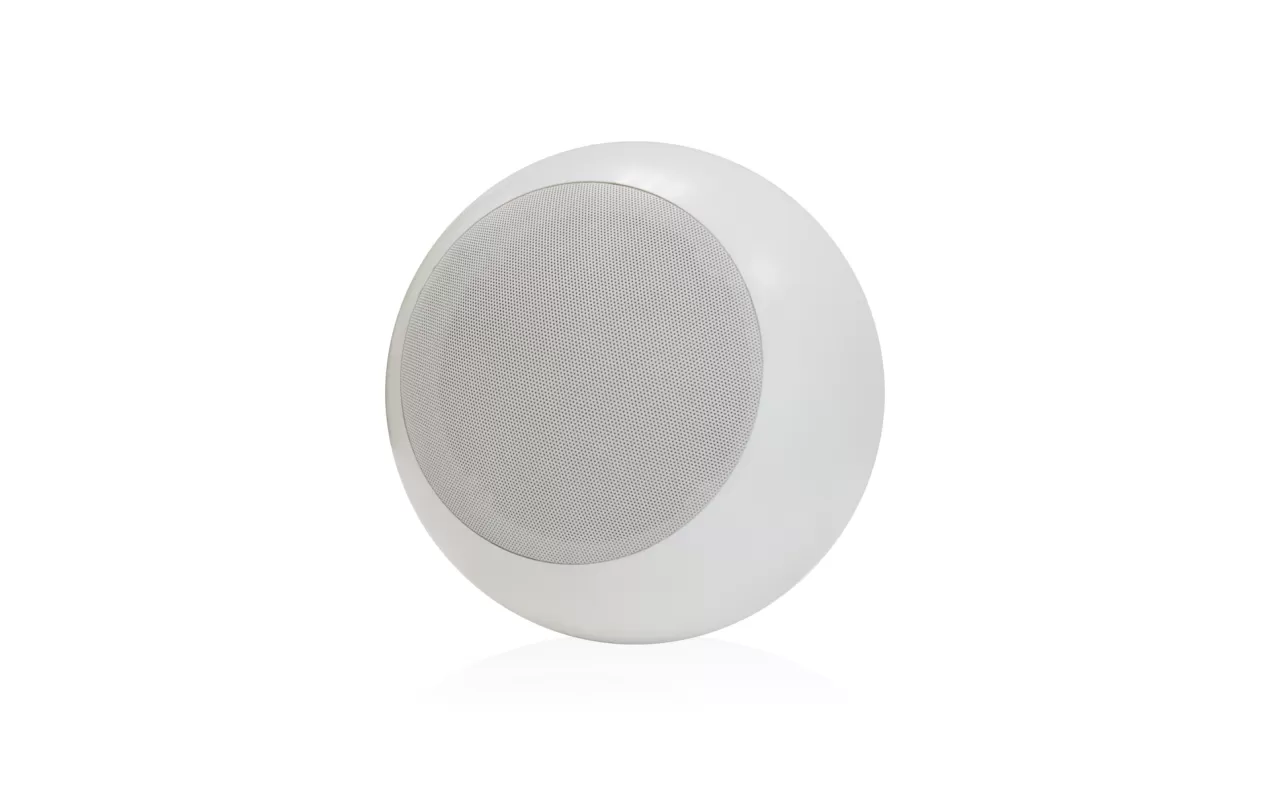

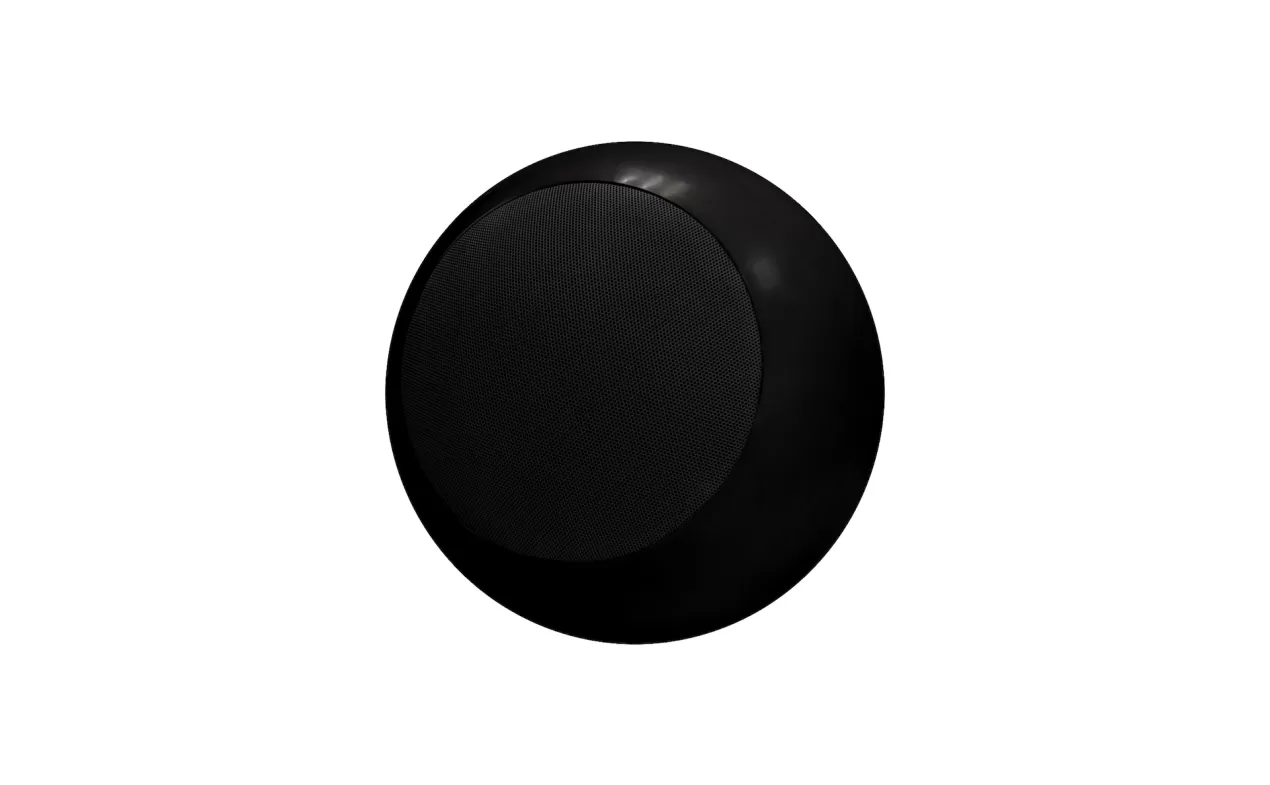

• Spherical pendant type loudspeaker
• 8 Ω and 70/100 V (40W RMS)
• 6.5” woofer + 1” tweeter
• Transformer selector: 32W-16W-8W-4W 100V / 16W-8W-4W-2W 70V - 8Ω
• Stripped wire connection (3m)
• Available in white (RAL9003) and black (RAL9005) finish
• EASE Win file available

• Effective Freq. Range

  74 Hz-20 kHz (-10dB)

  Coverage angle / Dispersion

  151°x151° (HxV)

  Power handling

  40 W RMS / 160 W Peak

  Sensitivity

  90 dB (1W/1m)

  Maximum SPL

  106 dB continuous / 112 dB peak

  Power options (Hi Z Multi-tap)

  100V: 32W / 16W / 8W / 4W / 8Ω
  70V: 16W / 8W / 4W / 2W / 8Ω

  Recommended amplifier power

  80 W RMS

• Connection type

  Stripped wire

  Installation options

  Ceiling (pendant)

  Enclosure material

  ABS

  Mounting system

  Cabinet

  Operating temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F


  Operating humidity

  <85% HR


  Storage temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F


  Storage humidity

  <90% HR


  Included accessories

  Mounting accessories

  Cable length

  3m

  Finished colour

  White (RAL 9003) or black (RAL 9005)

  Dimensions

  270 x 215 mm / 10.63 x 8.46 in. (ØxD)

  Weight

  3.0 kg / 6.61 lb

  Pieces per box

  Unit

  Shipping dimensions

  320 x 320 x 280 mm / 12.6 x 12.6 x 11.02 in. (WxHxD)

  Shipping weight

  3.5 kg / 7.72 lb
