SPECIFIKACIJE

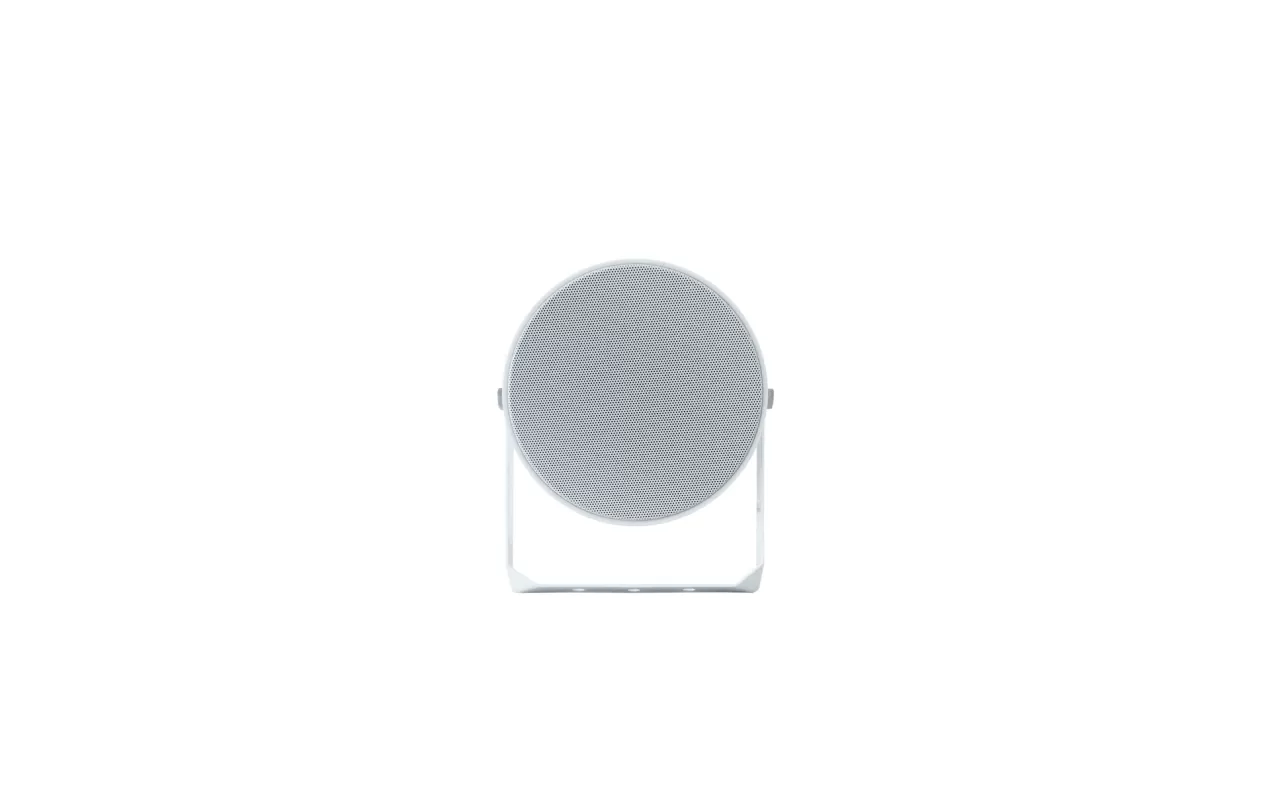

• Water-resistant ABS sound projector
• Suitable for outdoor applications
• Power tappings for 70V and 100V
• EASE Win file available
• Available in white (RAL9016)

• Effective Freq. Range

  170 Hz-19 kHz (-10dB)

  Coverage angle / Dispersion

  151°x151° (HxV)

  Power handling

  20 W RMS / 80 W Peak

  Sensitivity

  96 dB (1W/1m)

  Maximum SPL

  109 dB continuous / 115 dB peak

  Power options (Hi Z Multi-tap)

  100V: 20W / 10W / 5W
  70V: 10W / 5W / 2.5W

  Recommended amplifier power

  40 W RMS

• Connection type

  Bare wire

  Environmental

  IP55

  Certifications

  IEC60529 Certified

  Enclosure material

  ABS

  Grille material

  Aluminium

  Operating temperature

  Min: -20°C ; -4°F
  Max: 60°C ; 140°F


  Operating humidity

  <85% HR

  Storage temperature

  Min: -20°C ; -4°F
  Max: 60°C ; 140°F

  Storage humidity

  <90% HR

  Cable length

  350mm / 13.8"

  Finished colour

  White (RAL 9016)

  Dimensions

  170 x 303 mm / 6.7"x9.6" (ØxD)

  Weight

  Including accessories:
  1.8 kg / 3.97 lb

  Pieces per box

  Unit

  Shipping dimensions

  190 x 300 x 190 mm / 7.48 x 11.81 x 7.48 in. (WxHxD)

  Shipping weight

  2.1 kg / 4.63 lb
