SPECIFIKACIJE

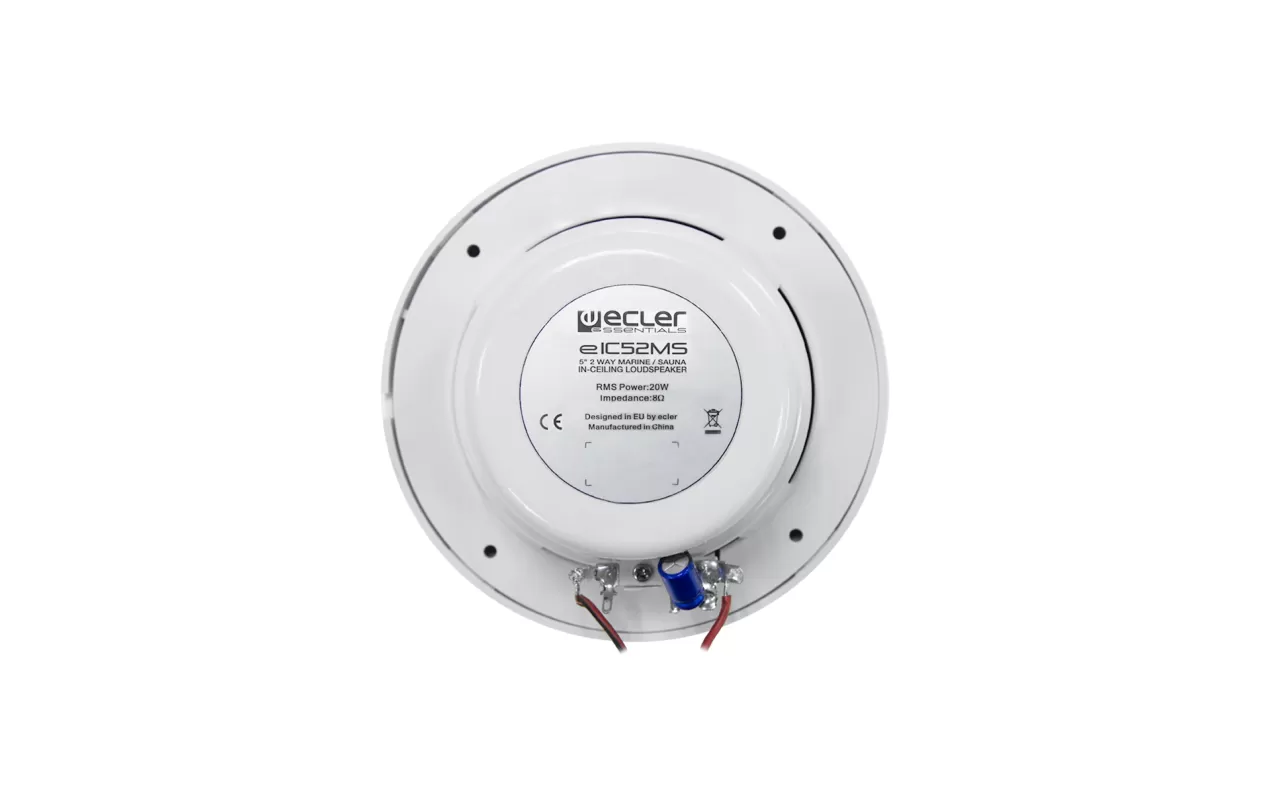

• Two-way speaker, 5 in woofer / 1 in tweeter
• 20 WRMS
• Faston male input terminals: 4.8mm (+) and 2.8mm (-)
• Suitable for installations exposed to extreme humidity and/or temperature
• EASE files available

• Effective Freq. Range

  83 Hz-20 kHz (-10dB)

  Coverage angle / Dispersion

  155°x155° (HxV)

  Power handling

  20 W RMS / 80 W Peak

  Sensitivity

  91 dB (1W/1m)

  Maximum SPL

  104 dB continuous / 110 dB peak

  Recommended amplifier power

  40 W RMS

• Connection type

  Faston male input terminals: 4.8mm (+) and 2.8mm (-)

  Installation options

  In-ceiling, in-wall

  Environmental

  IP54 rated

  Grille fixing system

  4 x Screw fixing system

  Operating temperature

  Min: -25°C ; -13°F
  Max: 70°C ; 158°F

  Operating humidity

  <90-95% HR

  Storage temperature

  Min: -25°C ; -13°F
  Max: 70°C ; 158°F

  Storage humidity

  <90-95% HR

  External diameter

  165 mm / 6.5"

  Internal diameter

  120 mm / 4.72"

  Required depth

  79 mm / 3.11"

  Finished colour

  White (RAL 9016)

  Weight

  0.70 kg / 1.54 lb

  Pieces per box

  Unit

  Shipping dimensions

  210 x 80 x 210 mm / 8.27 x 3.15 x 8.27 in. (WxHx)

  Shipping weight

  1.2 kg / 2.65 lb
