KATEGORIJA

• Ozvučenje
• Zvučne Kutije
• Instalacijski zvučnici

DIMENZIJE

š: x v: x d: x m: kg

TAGOVI

Zvučnici

ecler

SPECIFIKACIJE

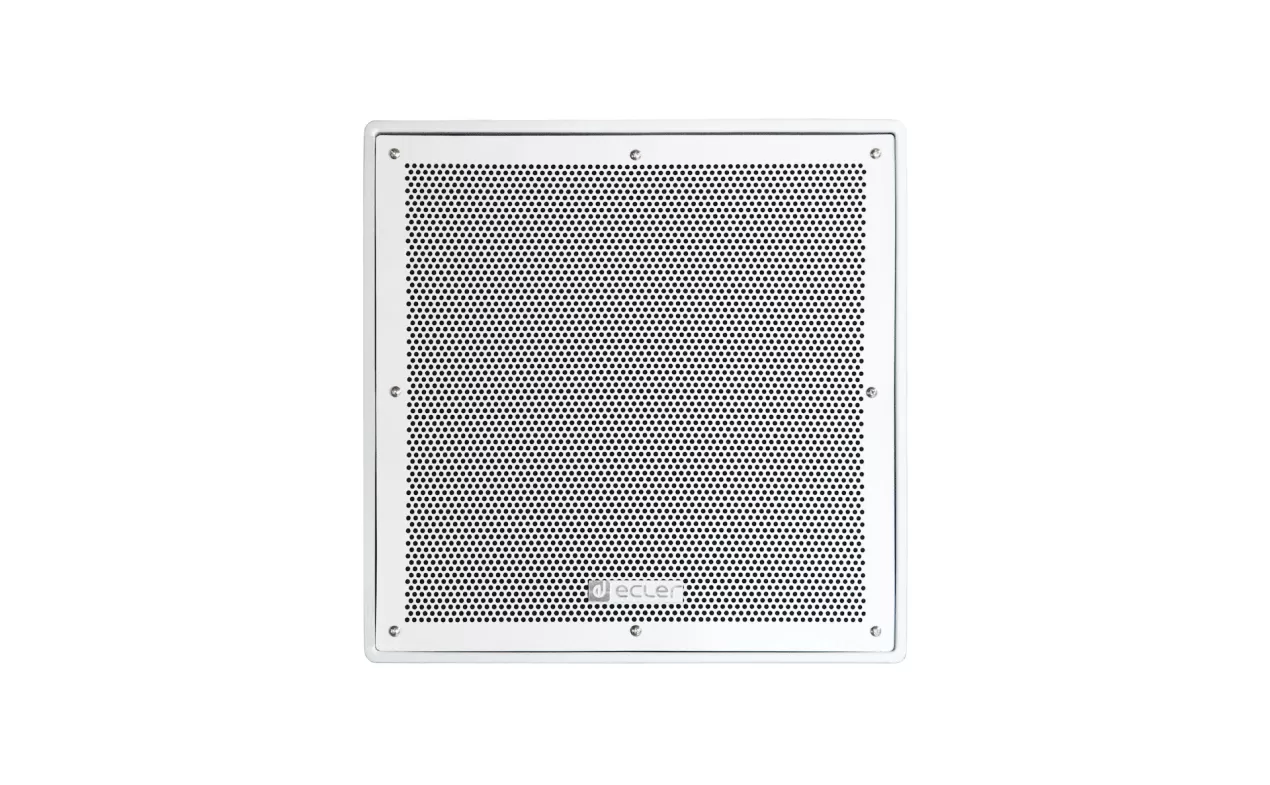

• Weatherproof 2-way music projector
• 300 W @ 8Ω
• Power options 100V: 50/100/200W/OFF and 8 Ω
• Power options 70V: 25/50/100W/OFF and 8 Ω
• Input and output connection via terminal block
• Dispersion (HxV): 107°x107°
• Material: Polypropylene, aluminium (grille), hot-dipped galvanized steel (U-bracket)
• Wheather-resistant IP56 rating

• Effective Freq. Range

  91 Hz-20 kHz (-10dB)

  Coverage angle / Dispersion

  107°x107° (HxV)

  Power handling

  300 W RMS / 1200 W Peak

  Sensitivity

  100 dB (1W/1m)

  Maximum SPL

  125 dB continuous / 131 dB peak

  Power options (Hi Z Multi-tap)

  100V: 200W / 100W / 50W / OFF and 8Ω
  70V: 100W / 50W / 25W / OFF and 8Ω

  Recommended amplifier power

  600 W RMS

• Connection type

  Terminal block (input+output)

  Environmental

  IP56 rated

  Enclosure material

  Polypropylene

  Grille material

  Aluminium

  Mounting system

  Hot-dipped galvanized steel U-bracket

  Operating temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Operating humidity

  <85% HR

  Storage temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Storage humidity

  <90% HR

  Finished colour

  Grey (RAL 538C)


  Dimensions

  407 x 410 x 378 mm / 16.0 x 16.1 x 14.9 in. (WxHxD)
  (If the mounting bracket is added the total depth will be 443mm/17.45")

  Weight

  20.0 kg / 44.1 lb

  Pieces per box

  Unit

  Shipping dimensions

  475 x 490 x 445 mm / 18.7 x 19.29 x 17.52 in. (WxHxD)

  Shipping weight

  21.3 kg / 46.96 lb
