SPECIFIKACIJE

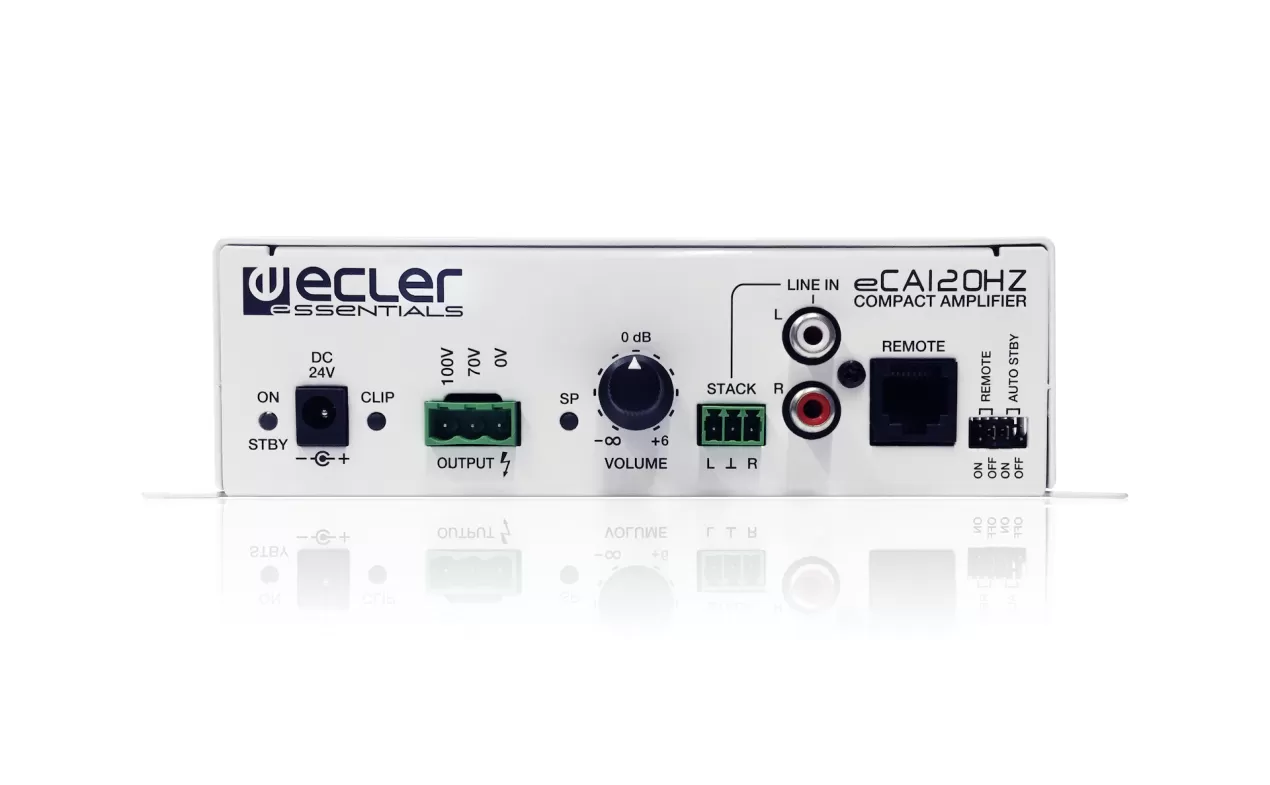

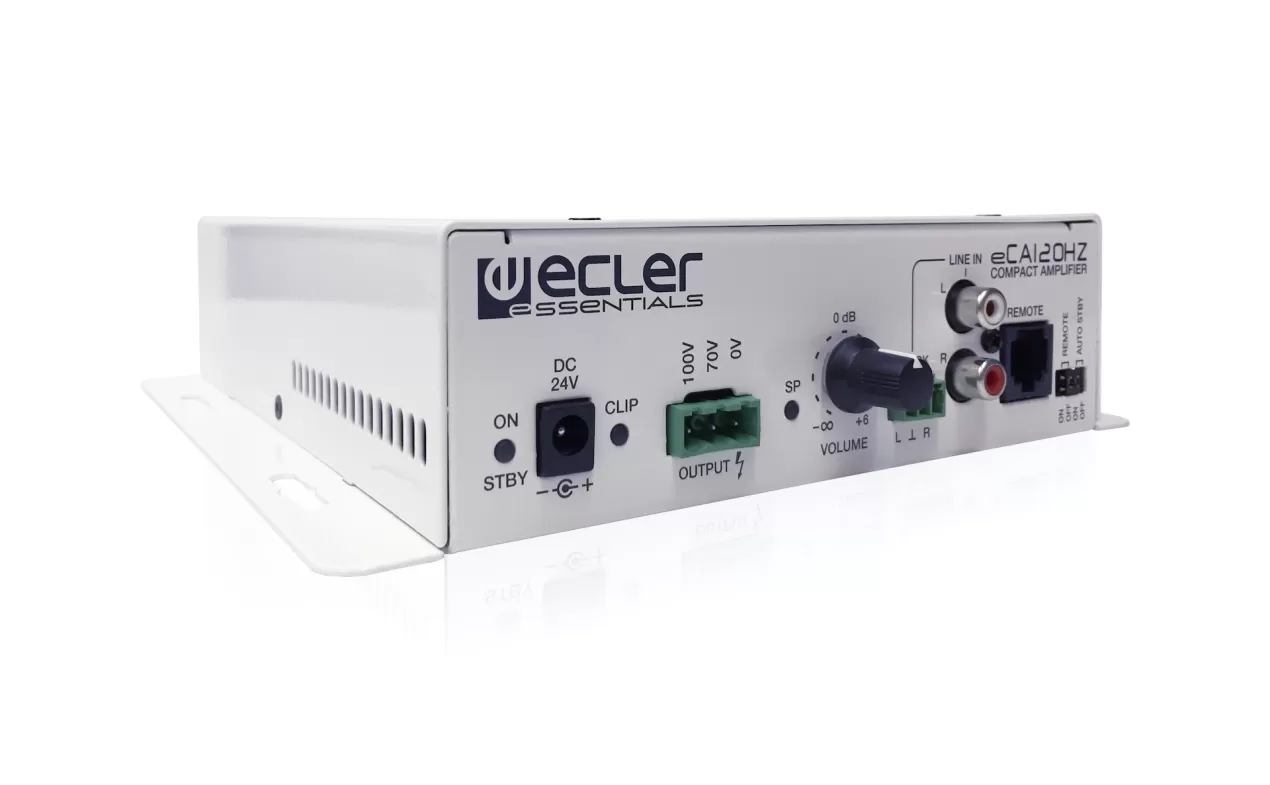

• 1 x 106W RMS @ 70V / 100V line level (high impedance) amplifier

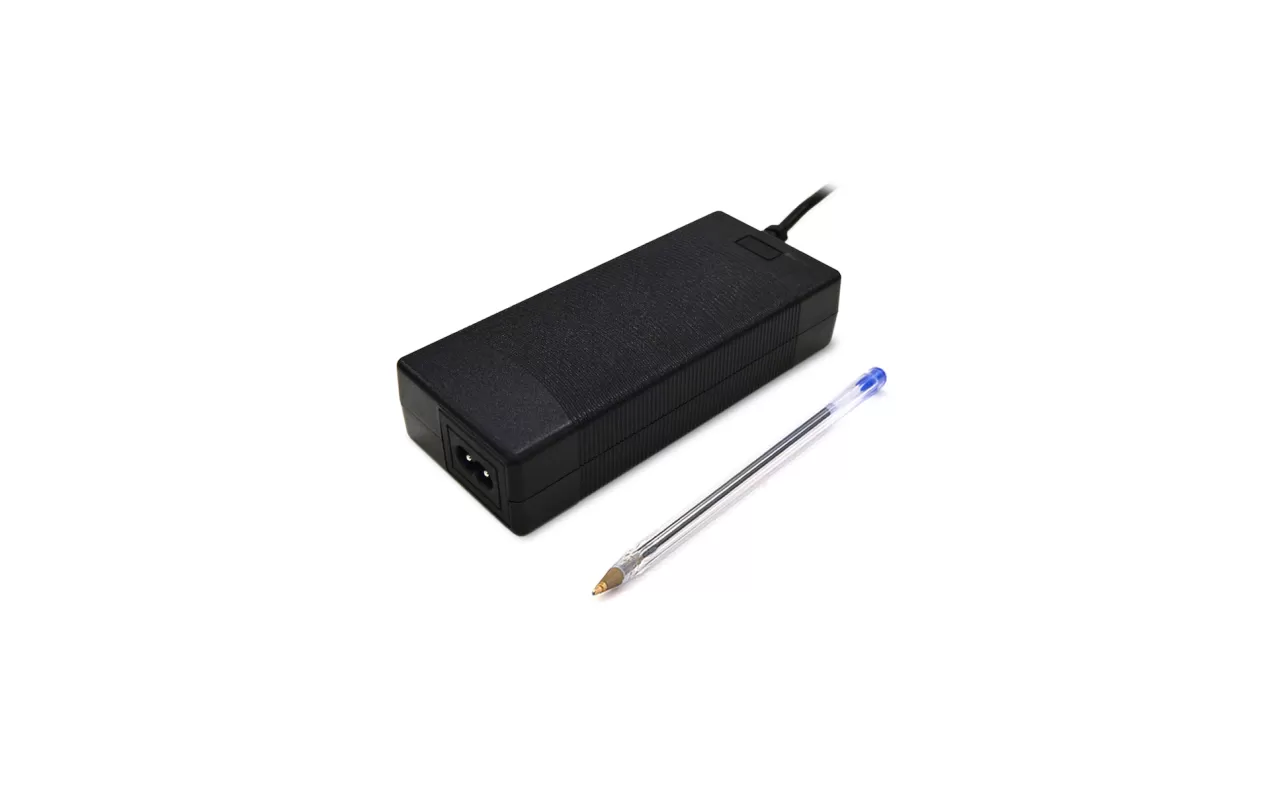

• External, universal power supply
• AUTO STANDBY function: in the absence of an audio signal the unit automatically goes into STANDBY mode, minimizing power consumption
• Light and silent (fanless) design
• 1 unbalanced stereo line input (LINE IN / STACK), with dual RCA connector and 3-pin Euroblock connector
• Local volume control by knob
• Remote volume control by WPa series wall panel (0-10VDC)

• Number of output channels

  1

  Output connection type

  Euroblock

  Output configuration

  1 x 106W RMS @ 70V / 100V line level (high impedance) amplifier

  Number of input channels

  1

  Input connection type

  Dual RCA and 3-pin Euroblock

  Input configuration

  LINE / STACK input

• Input sensitivity

  0dBV

  Input impedance

  >20kΩ

  Frequency response

  70Hz - 30kHz (-3dB)

  THD + Noise

  SPKR OUT < 0.07% @ 1kHz

  SNR

  >85dB (VOLUME at 0dB)

  Crosstalk

  >65dB @ 1kHz
