SPECIFIKACIJE

• Two-way full-range pendant loudspeaker
• 75 W RMS @ 8 Ω
• 6,5" woofer / 1" tweeter.
• Compatible for use in high impedance (70V or 100V line) and low impedance (8Ω)
• Power selector: 4 options of 60W/30W/15W/7.5W in high impedance or one 75W option in low impedance
• ABS reinforced with fibreglass

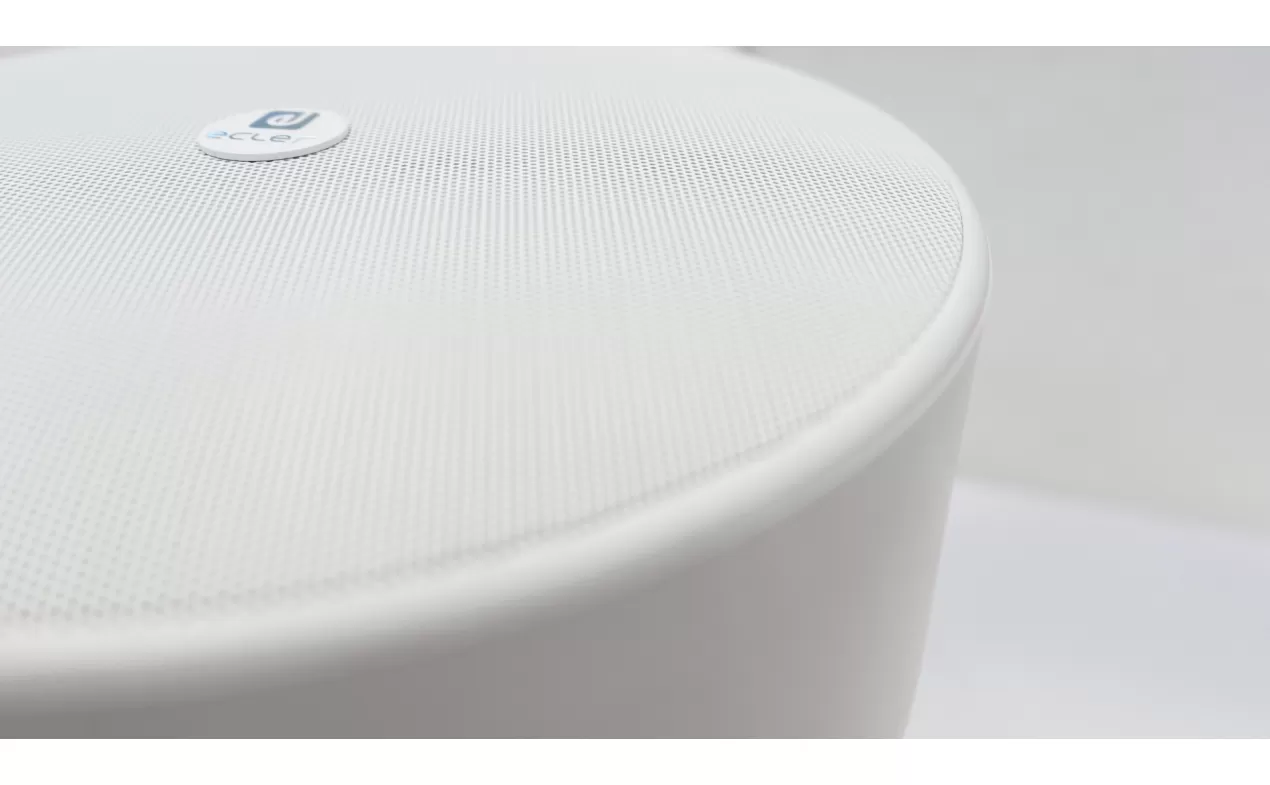

• Paintable grille and speaker (white)
• INPUT/LINK double connector, Euroblock type Cable length: 5m (includes 2 height adjustable steel cords)

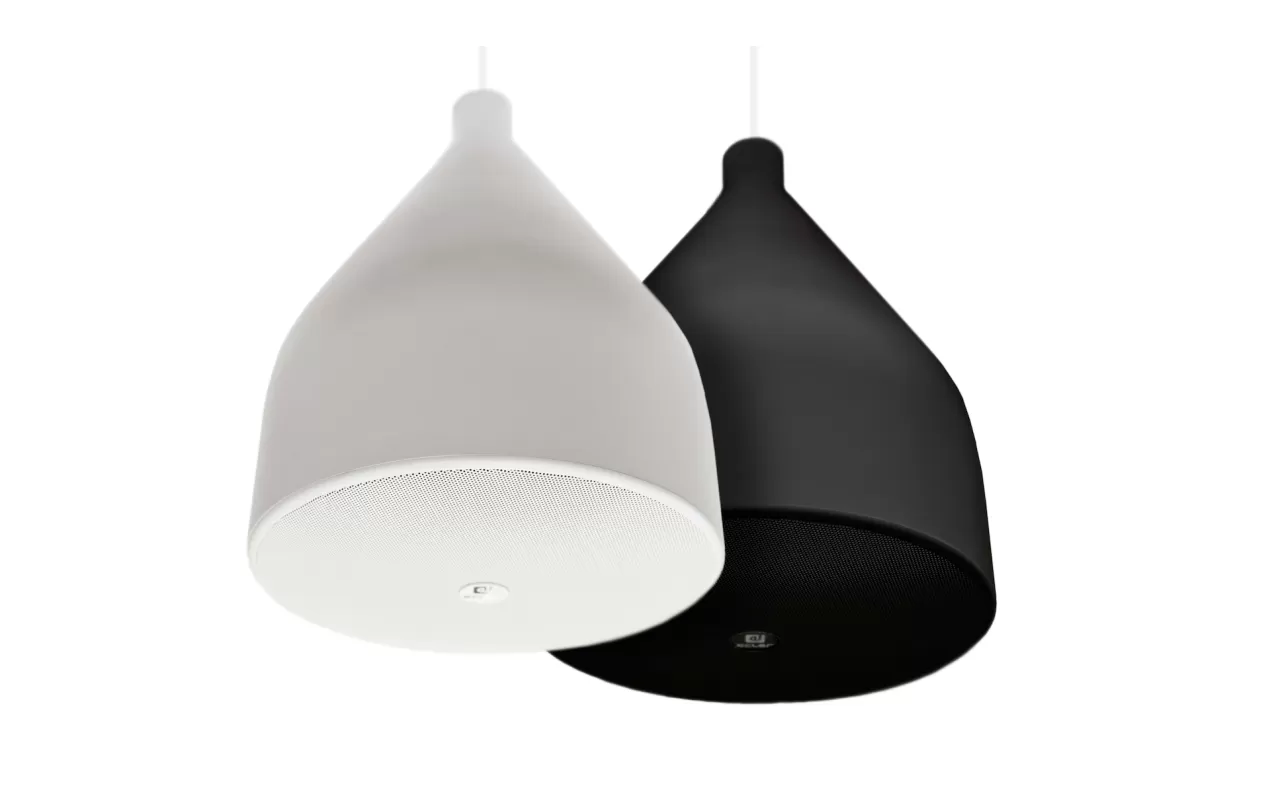

• Available in white (RAL9003) and black (RAL9005)

• Effective Freq. Range

  90 Hz-20 kHz (-10dB)

  Coverage angle / Dispersion

  112° Conical

  Power handling

  75 W RMS / 300 W Peak

  Sensitivity

  88 dB (1W/1m)

  Maximum SPL

  107 dB continuous / 113 dB peak

  Power options (Hi Z Multi-tap)

  70V/100V: 60W / 30W / 15W / 7.5W / 75W@8Ω

  Recommended amplifier power

  150 W RMS

• Connection type

  Double INPUT/LINK connector, Euroblock type

  Power type selector

  Back panel tap rotary selector

  Installation options

  Pendant

  Environmental

  IP53 rated

  Enclosure material

  ABS reinforced with fibreglass

  Grille material

  Aluminium

  Grille fixing system

  Bayonet mount system

  Mounting system

  Steel wire hanging

  Flying points

  2 x Steel wire hanging points

  Operating temperature

  Min: 0°C ; 32°F
  Max: 35°C ; 95°F

  Operating humidity

  <85% HR

  Storage temperature

  Min: -10°C ; 14°F
  Max: 50°C ; 122°F

  Storage humidity

  <90% HR

  Included accessories

  2 x Steel Wire for hanging 5 mts, 2 x 3C Euroblock connector

  Finished colour

  White (RAL9003) or Black (RAL9005)

  Dimensions

  270 x 355mm / 10.6" x 14" (ØxH)

  Weight

  4.2 kg / 9.26 lb

  Pieces per box

  1 unit

  Shipping dimensions

  380 x 325 x 370 mm / 14.9 x 12.8 x 15.5 in. (WxHxD)

  Shipping weight

  5.5 kg / 12.12 lb
