SPECIFIKACIJE

• Digital local control, encoder type

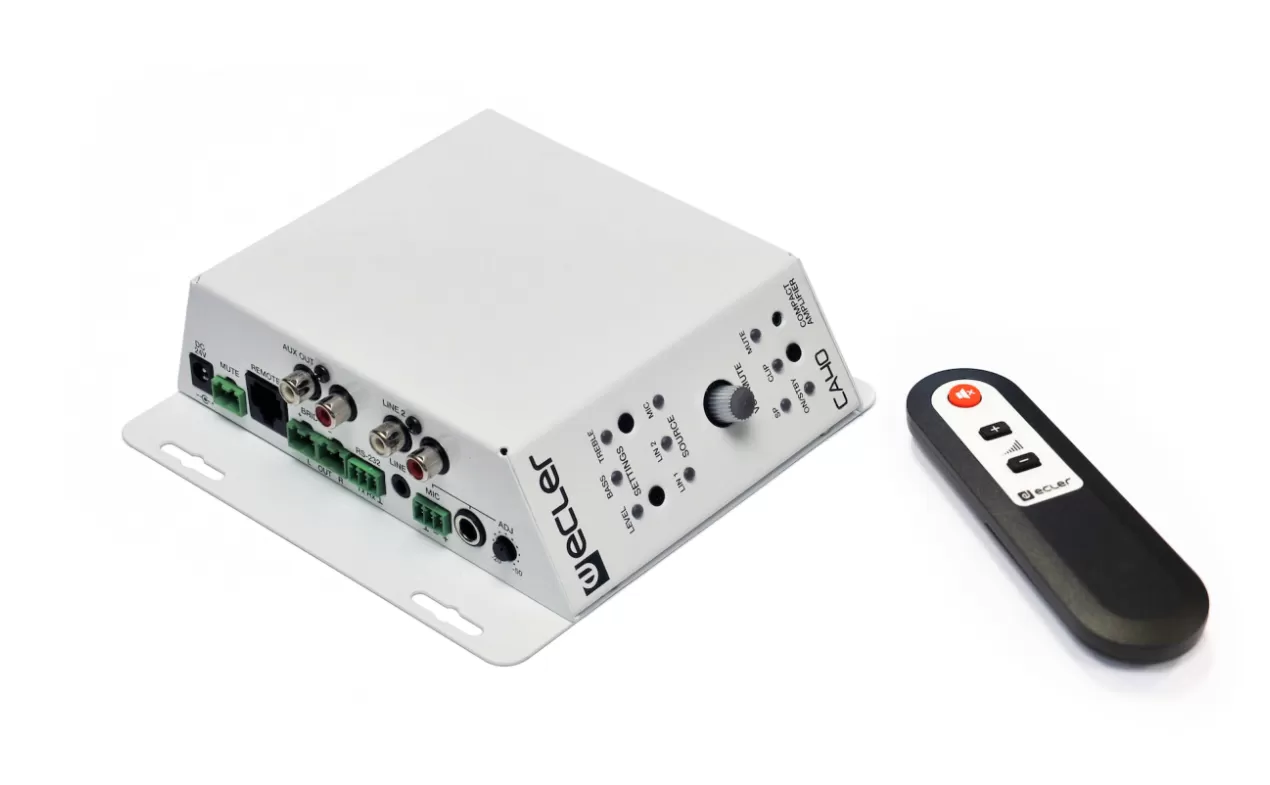

• Infrared remote control included
• Remote control compatible with WPaVOL and WPaVOLSR wall panels (0-10 VDC)
• RS-232 control port compatible with EclerCOMM software and CA-NET protocol
• MUTE port for external muting of the unit when an evacuation system must be activated
• Presets / sources management via RS-232 or 0-10 VDC remote control port
• AUTO STANDBY function
• Light and silent (fanless) design

• Number of output channels

  2 + 1 AUX

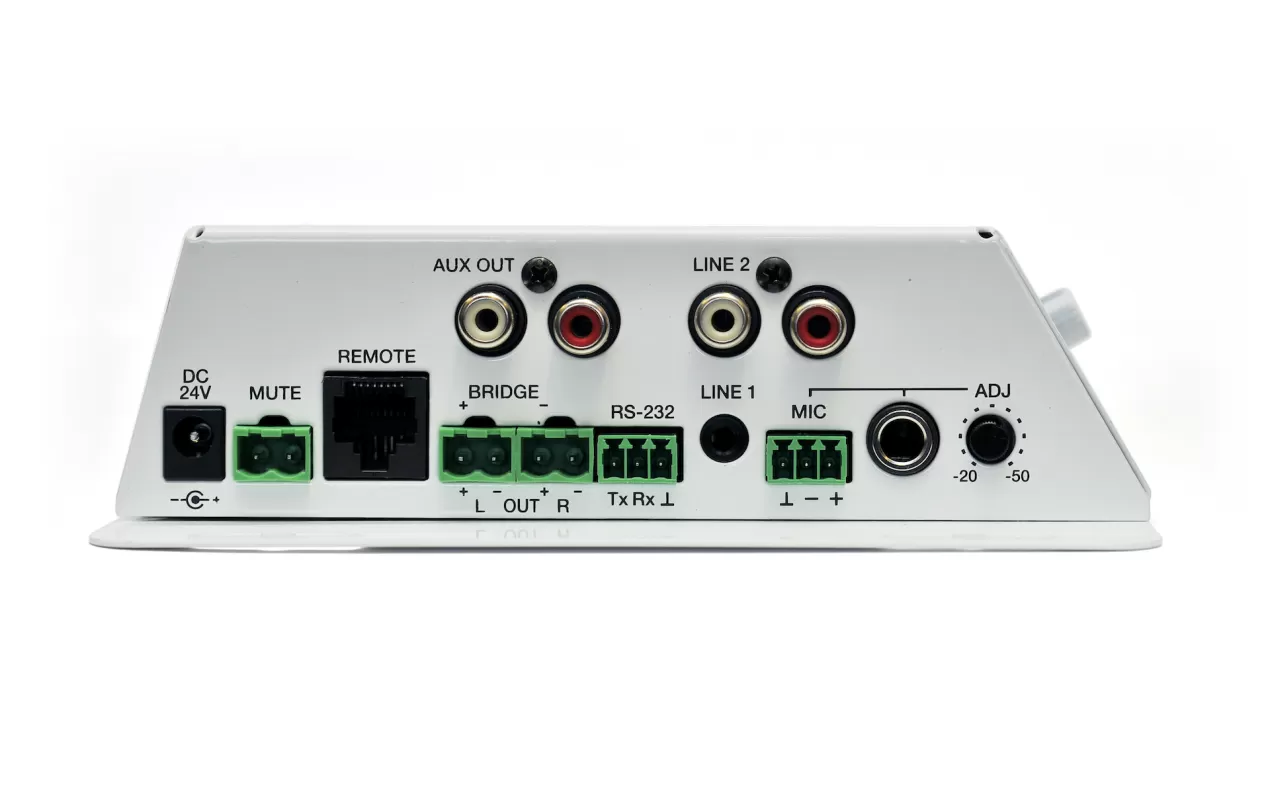

  Output connection type

  Euroblock

  Output configuration

  2 x 20 W RMS @ 4Ω amplifier

  Number of input channels

  3

  Input connection type

  MIC: balanced Euroblock or jack
  LINE: unbalanced minijack or double RCA

  Input configuration

  1 MIC input
  2 LINE inputs

• Input sensitivity

  LINE: 0dBV (-6dBV internally selectable)
  MIC: -20 to -50dBV

  Input impedance

  LINE: >8kΩ
  MIC: >1kΩ

  Frequency response

  20Hz - 50kHz (-3dB)

  THD + Noise

  SPRK OUT: < 0.15% @ 1kHz
  AUX OUT: < 0.02%

  SNR

  LINE: >85dB
  MIC (BAL): >65dB

  Crosstalk

  >55dB @ 1kHz

  CMRR

  MICRO (BAL): >65dB @ 1kHz
