SPECIFIKACIJE

• 1 x 96W RMS @ 70 / 100V amplifier

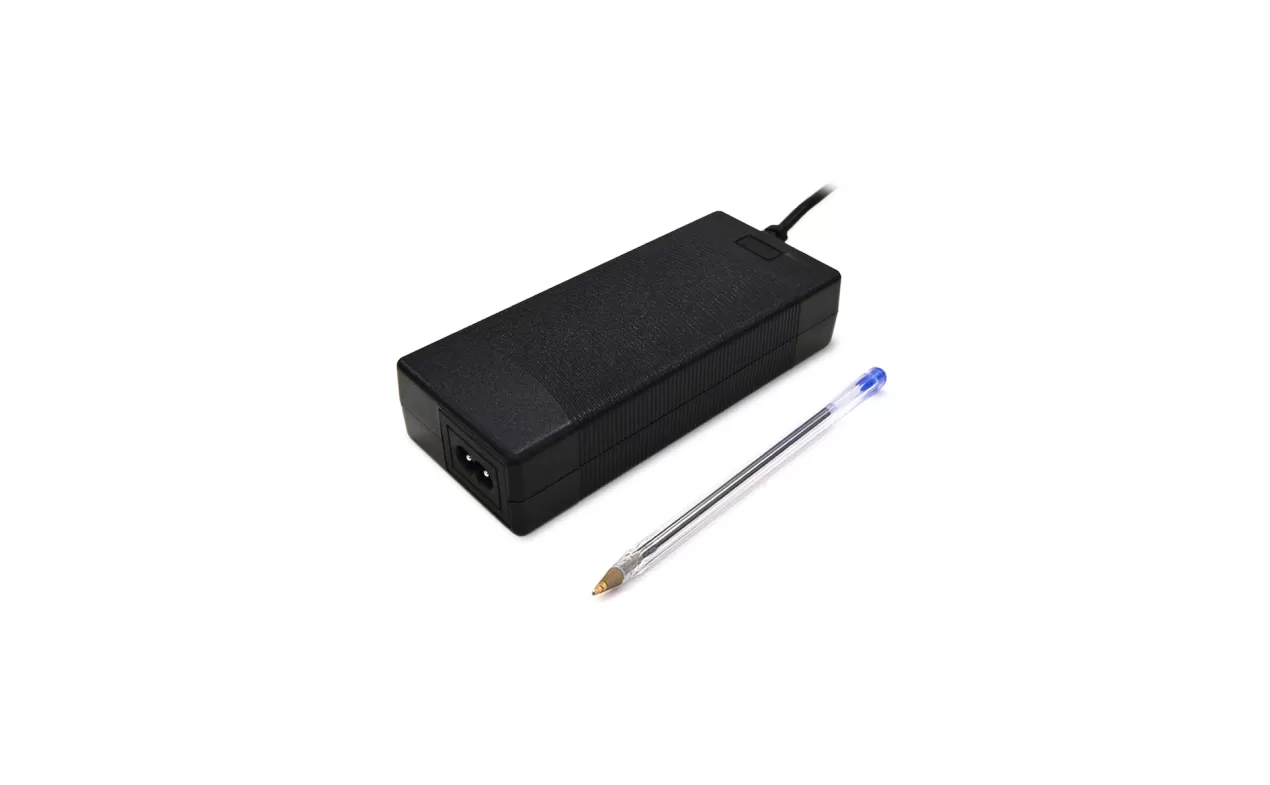

• Universal external power supply
• AUTO STANDBY function: in the absence of an audio signal the unit automatically goes into STANDBY mode, minimising power consumption
• Lightweight, silent, high-performance amplifier (fan-free convection cooling)
• 1 switchable balanced mic / unbalanced line input, with high quality microphone preamplifier, phantom power supply, noise gate and “talkover” function or priority over the rest of input
• 2 stereo lines (unbalanced)
• 2-band independent tone control (Bass, Treble) for the microphone / line 3 and line 1&2 input connection.
• Auxiliary output for liaison with other amplifiers or external audio devices

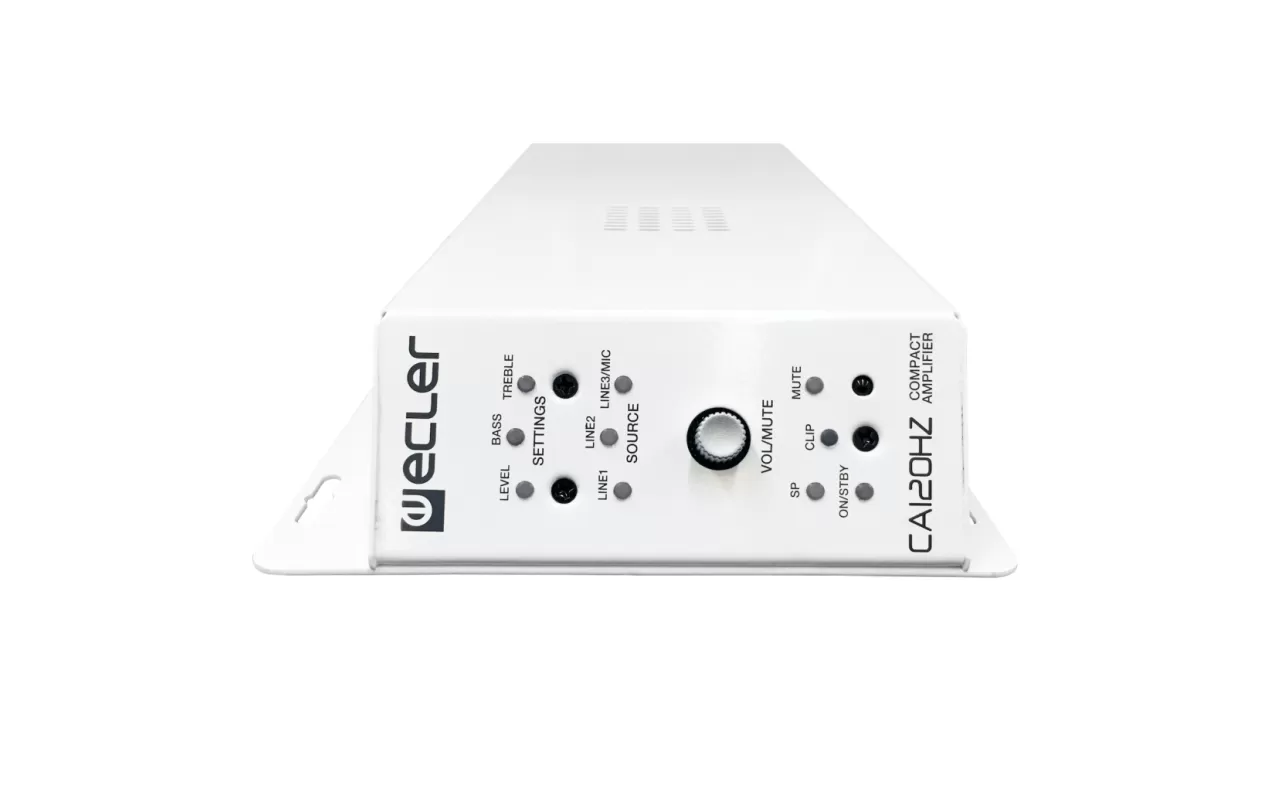

• Local control by digital rotary knob (“encoder”)
• Remote control by infrared remote control
• Remote control by WPaVOL or WPaVOL-SR (0-10 VDC) wall panel

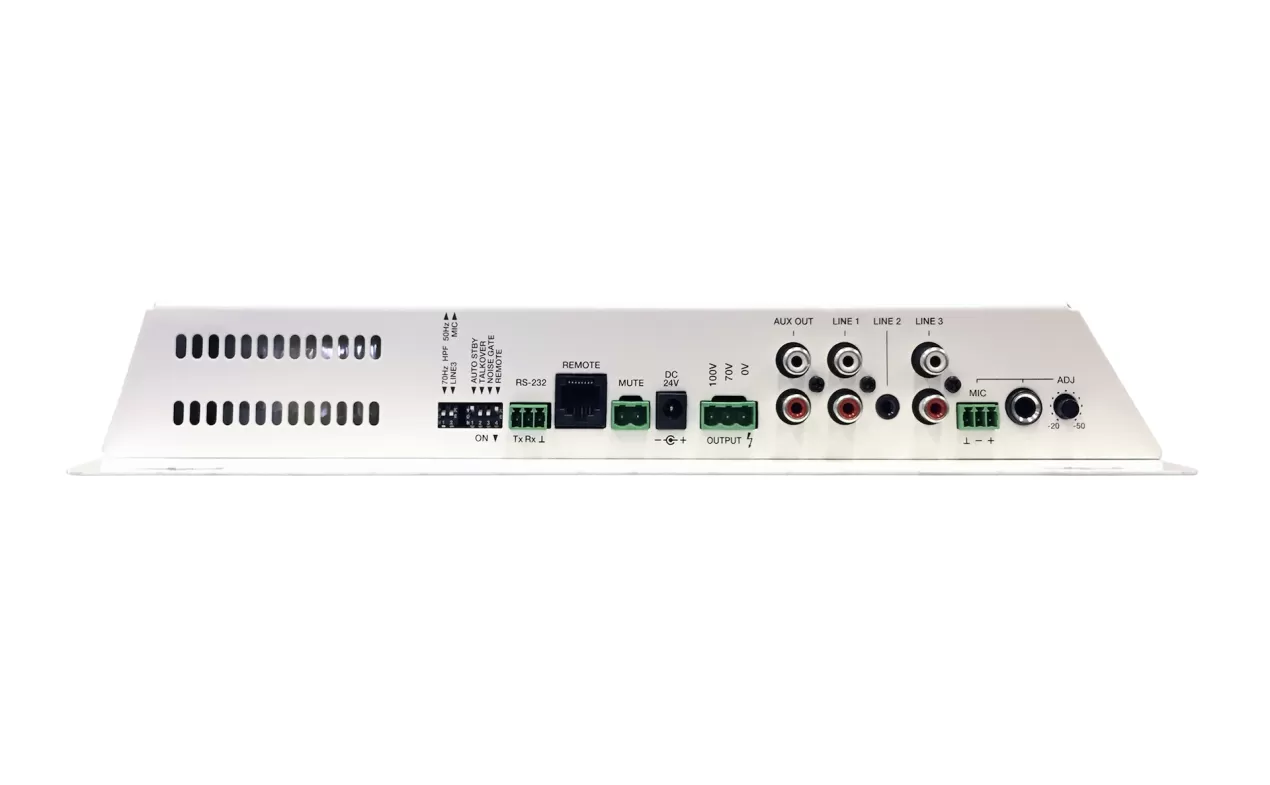

• RS-232 control port, compatible with EclerCOMM software (free) and control protocol CA-NET
• MUTE port to silence the entire unit by closing external contact

• Number of output channels

  1 + 1 AUX

  Output connection type

  Euroblock

  Output configuration

  1 x 96W RMS @ 70/100V

  Number of input channels

  3

  Input connection type

  MIC: balanced Euroblock or jack
  LINE: unbalanced minijack or double RCA

  Input configuration

  1 MIC/LINE input
  2 LINE inputs

• SIGNAL

  Input sensitivity

  LINE: 0dBV (-6dBV internally selectable)
  MIC: -20 to -50dBV

  Input impedance

  LINE: >8kΩ
  MIC: >1kΩ

  Frequency response

  50Hz - 30kHz (-3dB)

  THD + Noise

  SPKR OUT: <0.09%
  AUX OUT: < 0.02%

  SNR

  LINE: >70dB
  MIC (BAL): >50dB

  Crosstalk

  >65dB @ 1kHz

  CMRR

  MIC (BAL): >65dB @ 1kHz
