SPECIFIKACIJE

• 2 x 60 W RMS @ 4Ω amplifier
• Universal external power supply
• AUTO STANDBY function: in the absence of an audio signal the unit automatically goes into STANDBY mode, minimising power consumption
• Lightweight, silent, high-performance amplifier (fan-free convection cooling)
• Suitable for stereo and parallel (mono)
• 1 switchable balanced mic / unbalanced line input, with high quality microphone preamplifier, phantom power supply, noise gate and “talkover” function or priority over the rest of input
• 3 stereo lines (not balanced)
• 2-band independent tone control (Bass, Treble) for the microphone / line 3 and line 1&2 input connection.
• Auxiliary output for liaison with other amplifiers or external audio devices

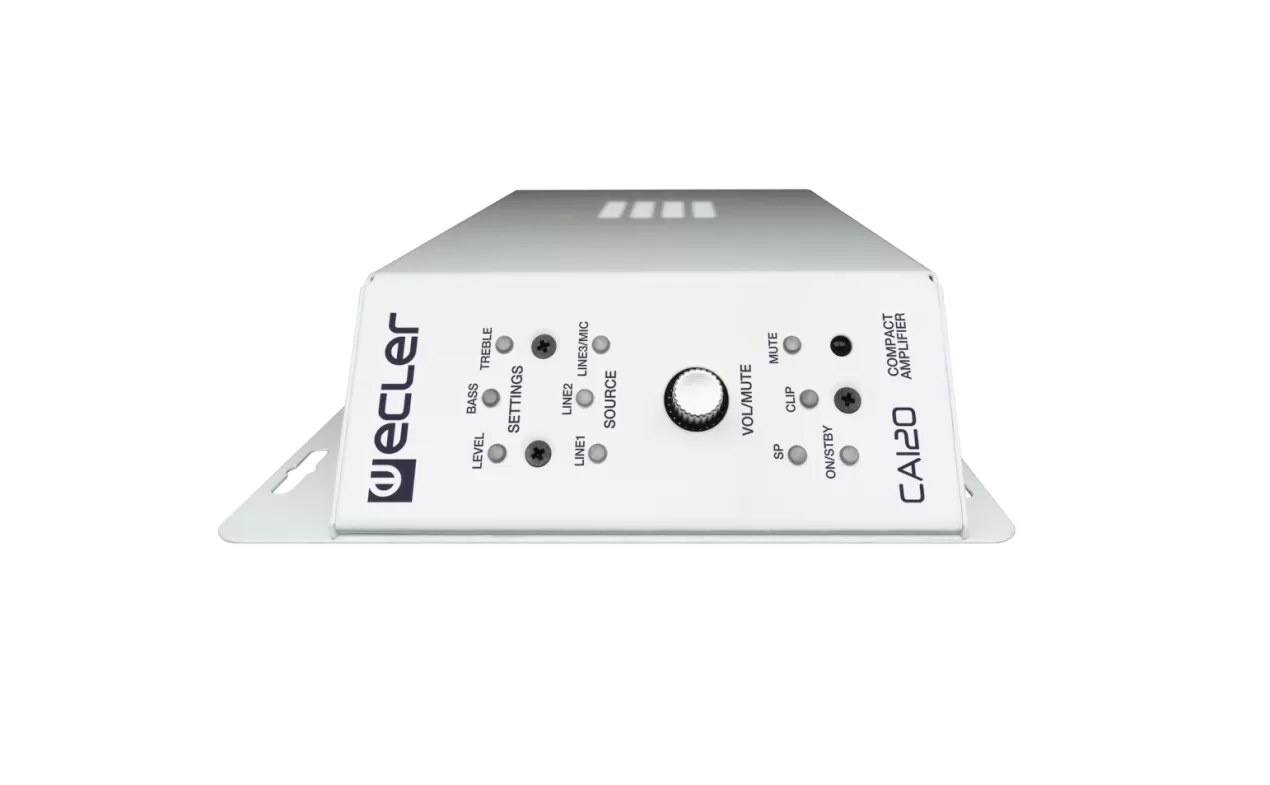

• Local control by digital rotary knob (“encoder”)
• Remote control by infrared remote control
• Remote control by WPmVOL or WPmVOL-SR (0-10 VDC) wall panel

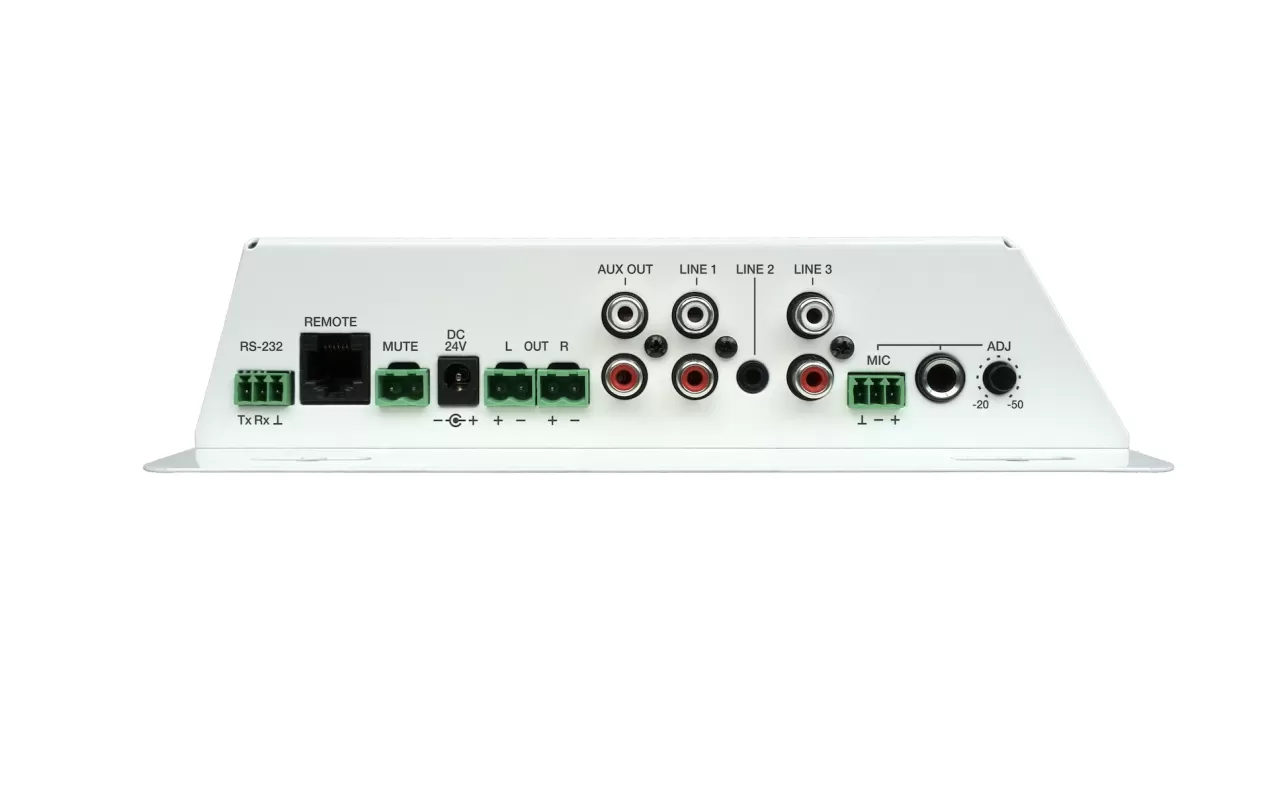

• RS-232 control port, compatible with EclerCOMM software (free) and control protocol CANET
• MUTE port to silence the entire unit by closing external contact

• Number of output channels

  2 + 1 AUX

  Output connection type

  Euroblock

  Output configuration

  2 x 60 WRMS @ 4Ω stereo amplifier

  Number of input channels

  3

  Input connection type

  MIC: balanced Euroblock or jack
  LINE: unbalanced minijack or double RCA

  Input configuration

  1 MIC/LINE input
  2 LINE inputs

Input sensitivity

Input impedance

Frequency response

THD + Noise

SNR

Crosstalk

CMRR
