KATEGORIJA

• Ozvučenje
• Zvučne Kutije

DIMENZIJE

š: x v: x d: x m: kg

TAGOVI

Zvučnici

ecler

SPECIFIKACIJE

• Full range, 2-way loudspeaker, 25 WRMS
• 3.5 in woofer / 0.5 in tweeter
• Made of reinforced ABS
• Available in black (RAL 9005) or white (RAL 9003)
• 8 ohm and 70/100 V line operating switch
• Accessories for wall-mounting included
• IP54 class outdoor rating
• Protective front grill with anti-rust treatment
• EASE Win file available

• Effective Freq. Range

  118 Hz-20 kHz (-10dB)

  Coverage angle / Dispersion

  207°x207° (HxV)

  Power handling

  25 W RMS / 100 W Peak

  Sensitivity

  86 dB (1W/1m)

  Maximum SPL

  100 dB continuous / 106 dB peak

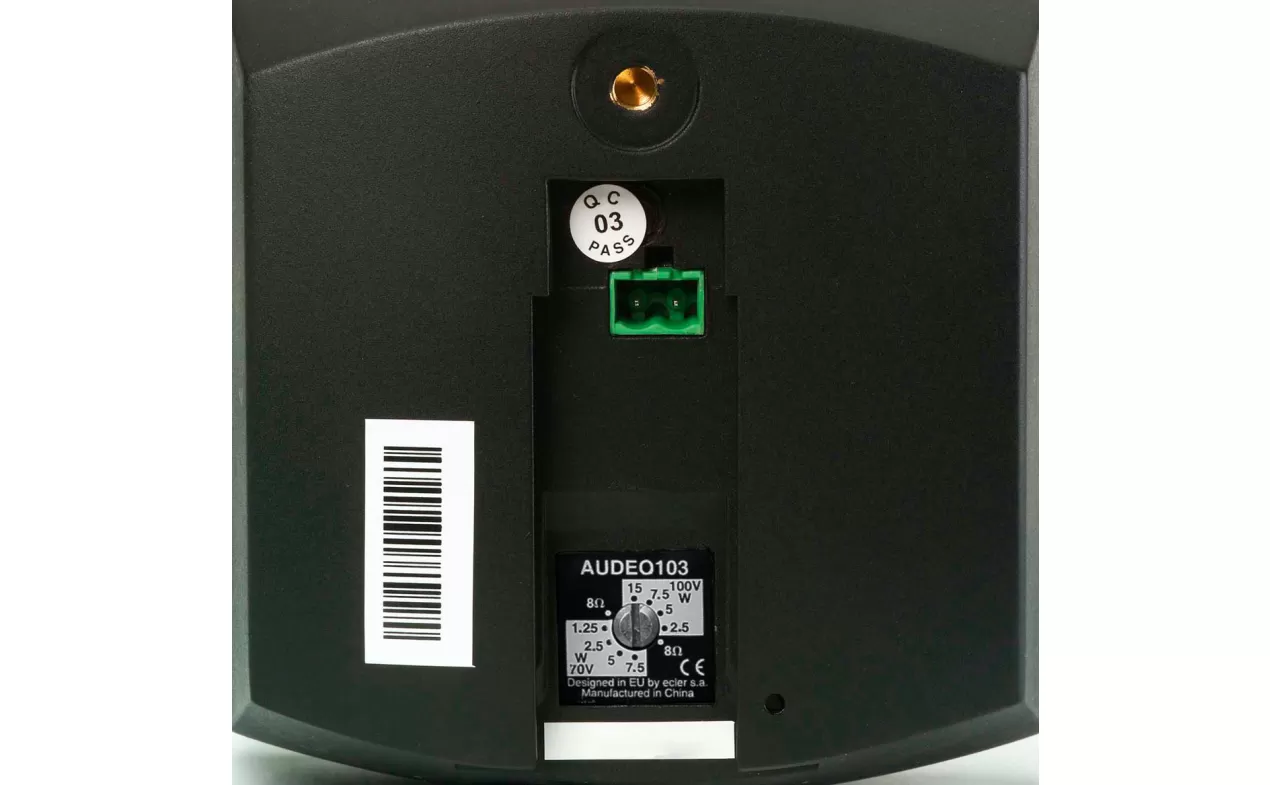

  Power options (Hi Z Multi-tap)

  100V: 15W / 7,5W / 5W / 2,5W / 8Ω
  70V: 7,5W / 5W / 2,5W / 1.25 / 8Ω




  Recommended amplifier power

  50 W RMS

• Power type selector

  Switch - TBC

  Installation options

  Wall

  Environmental

  IP54 rated

  Enclosure material

  Reinforced ABS

  Mounting system

  Cabinet

  Operating temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Operating humidity

  <85% HR


  Storage temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Storage humidity

  <90% HR

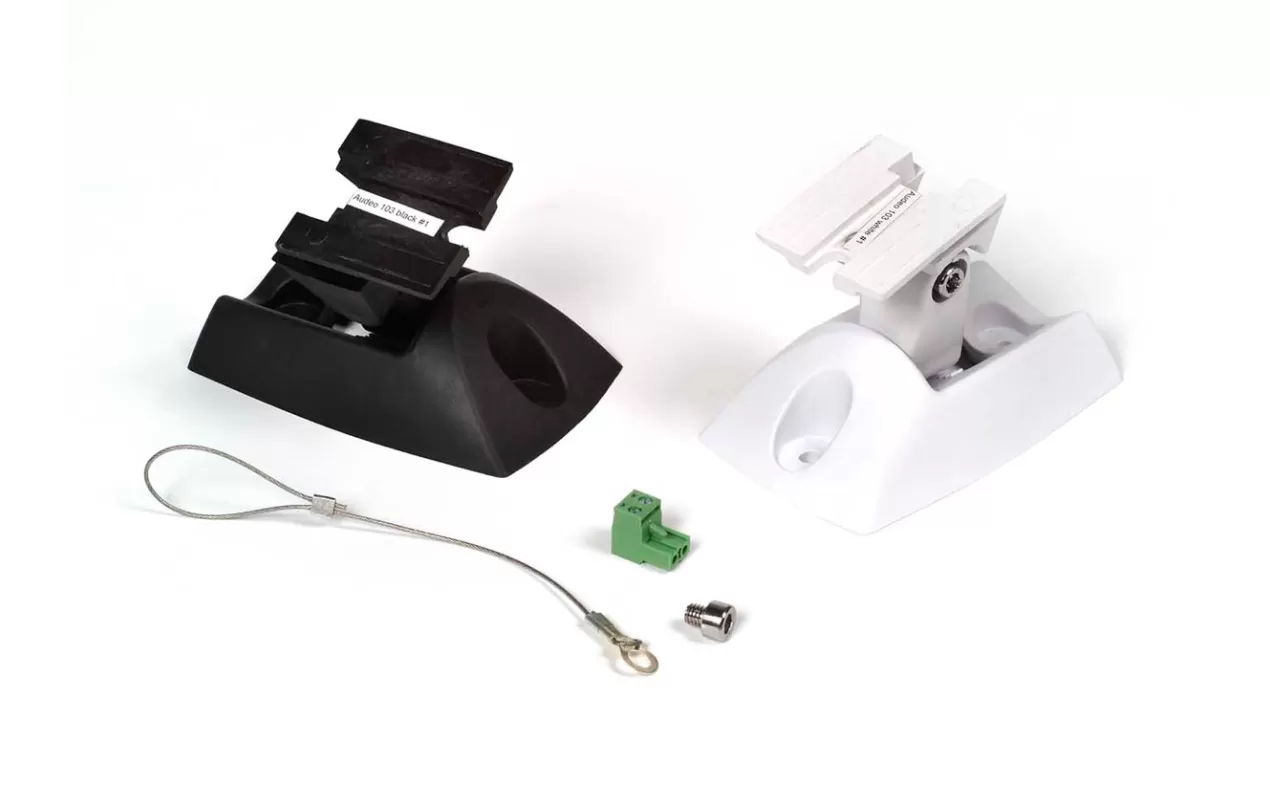

  Included accessories

  Wall-mounting accessories

  Finished colour

  White (RAL 9003) or black (RAL 9005)

  Dimensions

  Without accessories:
  132 x 134 x 110 mm / 5.2 x 5.28 x 4.33 in. (WxHxD)

  Weight

  1.45 kg / 3.2 lb

  Pieces per box

  Pair

  Shipping dimensions

  315 x 188 x 205 mm / 12.4 x 7.4 x 8.07 in. (WxHxD)

  Shipping weight

  1.65 kg / 3.64 lb
