KATEGORIJA

• Ozvučenje
• Zvučne Kutije
• Pasivne Zvučne Kutije
• Instalacijski zvučnici

DIMENZIJE

š: x v: x d: x m: kg

TAGOVI

Zvučnici

Pasivne

ecler

SPECIFIKACIJE

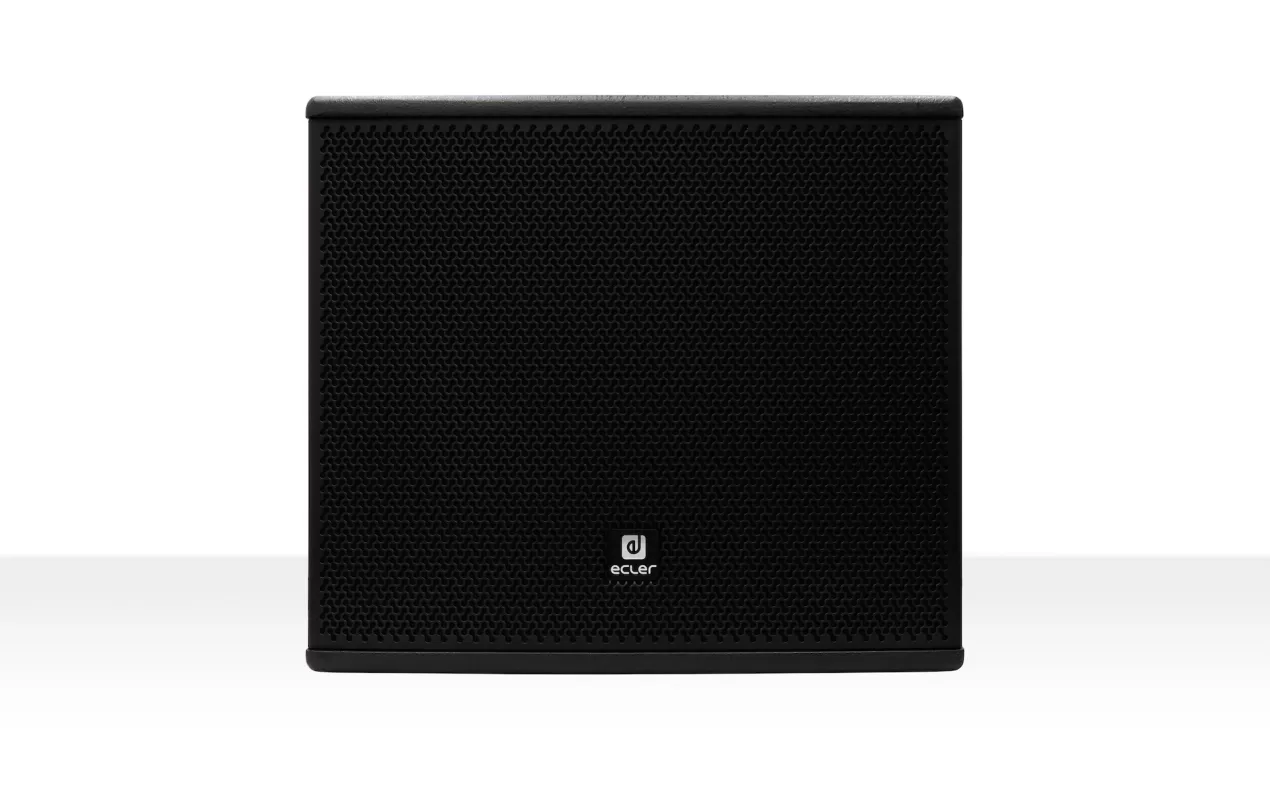

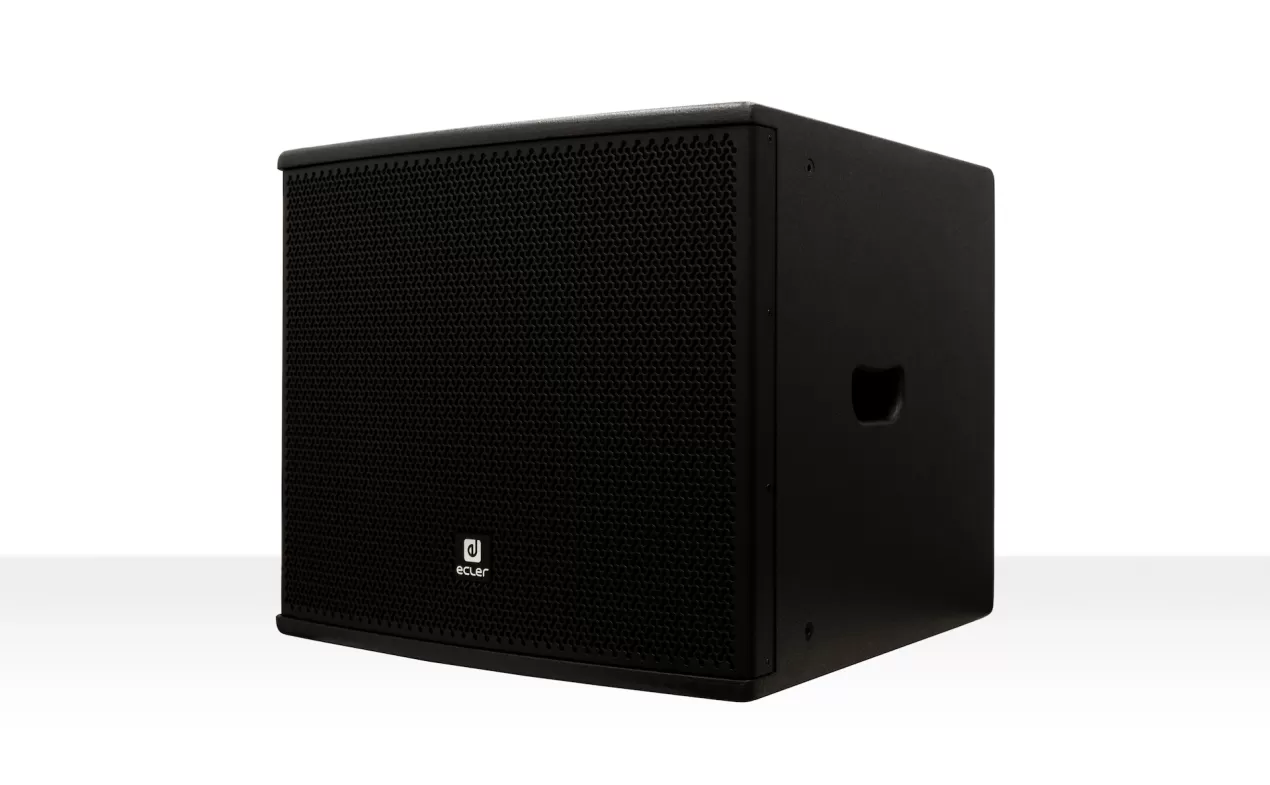

• Subwoofer, 1-way architectural loudspeaker
• 600 WRMS @ 8Ω

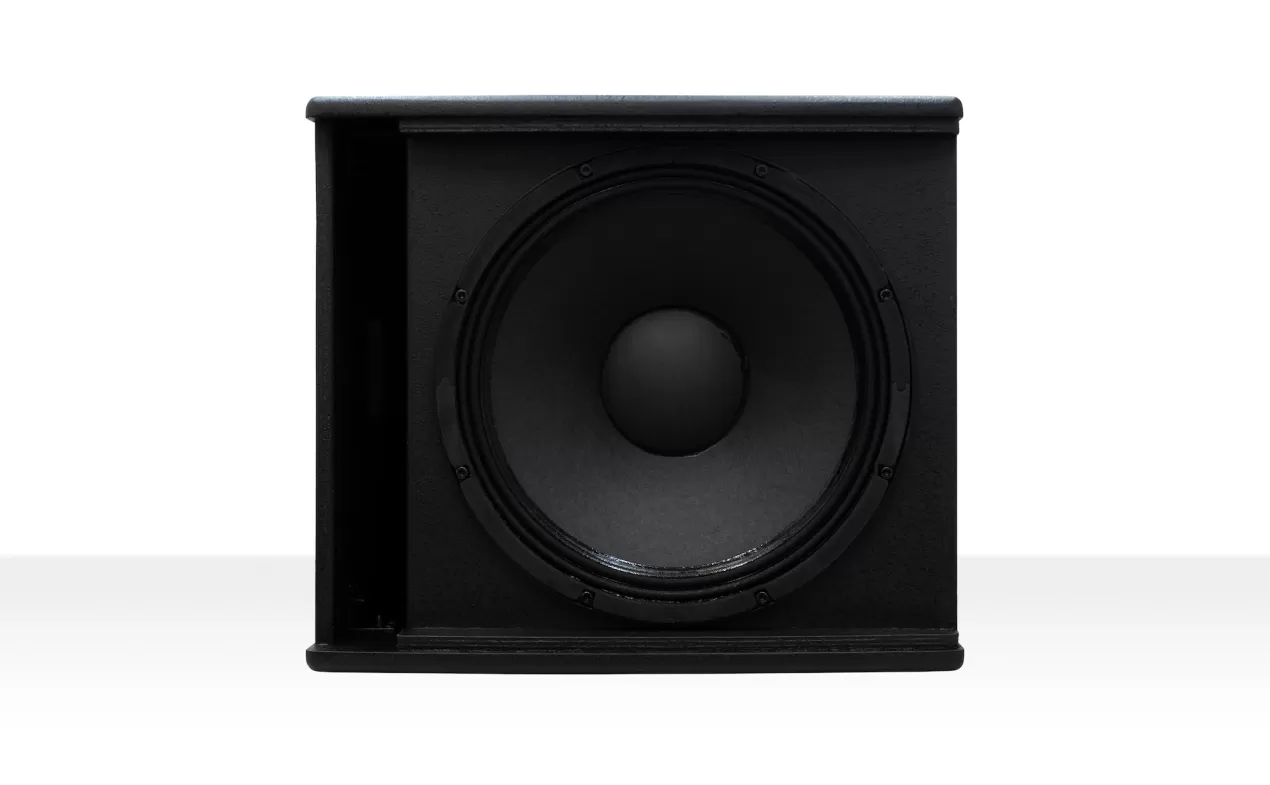

• 1 x 15" low frequency woofer
• Double INPUT/STACK connector, Speakon© type
• 35 mm top-hat mount socket, for pole mount combinations with ARQIS110i, ARQIS112i, etc.
• 12 x M8 cabinet flying points.
• Available in black (RAL 9005) colour
• EASE files available

• Effective Freq. Range

  31 Hz-3 kHz (-10dB)

  Power handling

  600 W RMS / 2400 W Peak

  Sensitivity

  97 dB (1W/1m)

  Maximum SPL

  125 dB continuous / 131 dB peak

  Recommended amplifier power

  1200 W RMS

• Connection type

  2 x SPEAKON®

  Installation options

  Surface, wall, desktop

  Environmental

  IP31

  Enclosure material

  Plywooden

  Grille material

  Steel

  Grille fixing system

  Screw fixation

  Flying points

  12 x M8

  Operating temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Operating humidity

  <85% HR

  Storage temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Storage humidity

  <90% HR

  Included accessories

  4 x rubber feet, 4 x screws

  Finished colour

  Black (RAL 9005)

  Dimensions

  534 x 460 x 525 mm / 21.02 x 18.11 x 20.67 in. (WxHxD)

  Weight

  32 kg / 70.54 lb

  Pieces per box

  1 piece

  Shipping dimensions

  624 x 555 x 610 mm / 24.57 x 21.85 x 24.02 in. (WxHxD)

  Shipping weight

  36.2 kg / 79.8 lb
