KATEGORIJA

• Ozvučenje
• Zvučne Kutije
• Pasivne Zvučne Kutije
• Instalacijski zvučnici

DIMENZIJE

š: x v: x d: x m: kg

TAGOVI

Zvučnici

Pasivne

ecler

SPECIFIKACIJE

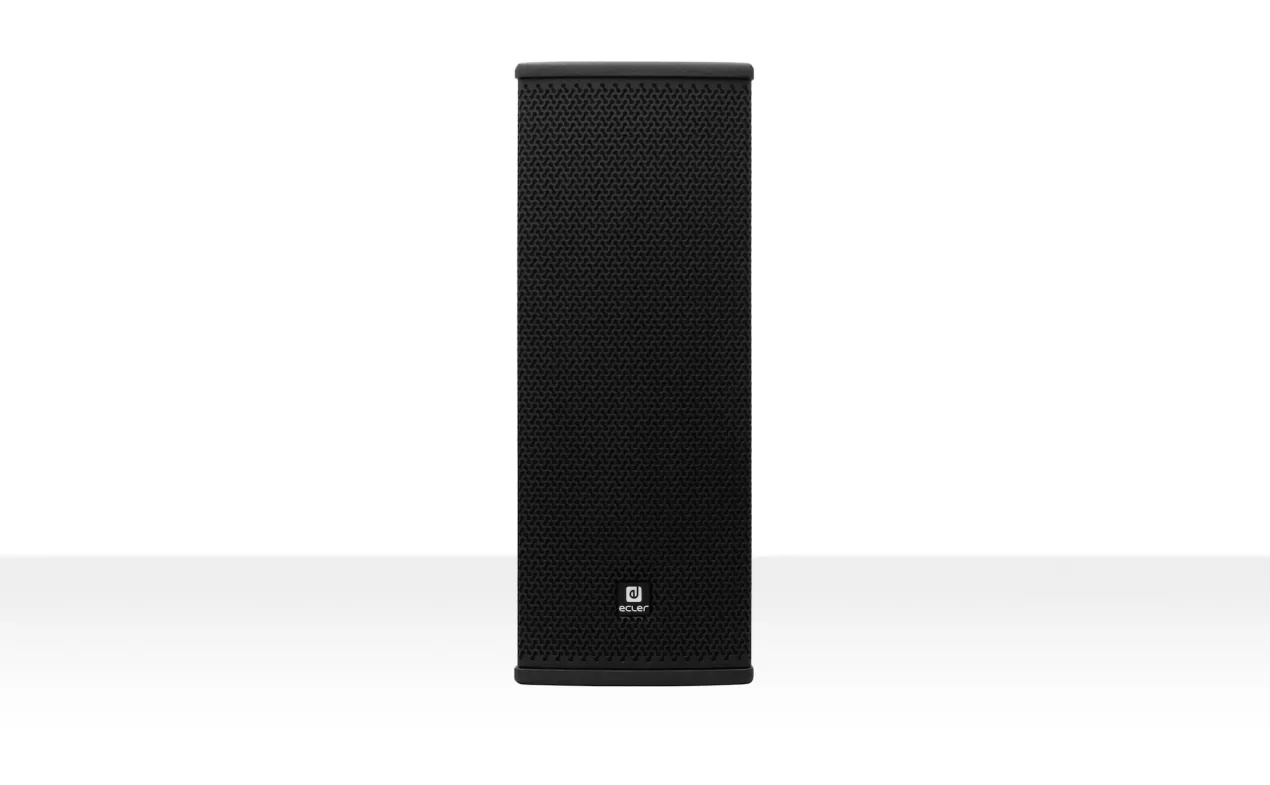

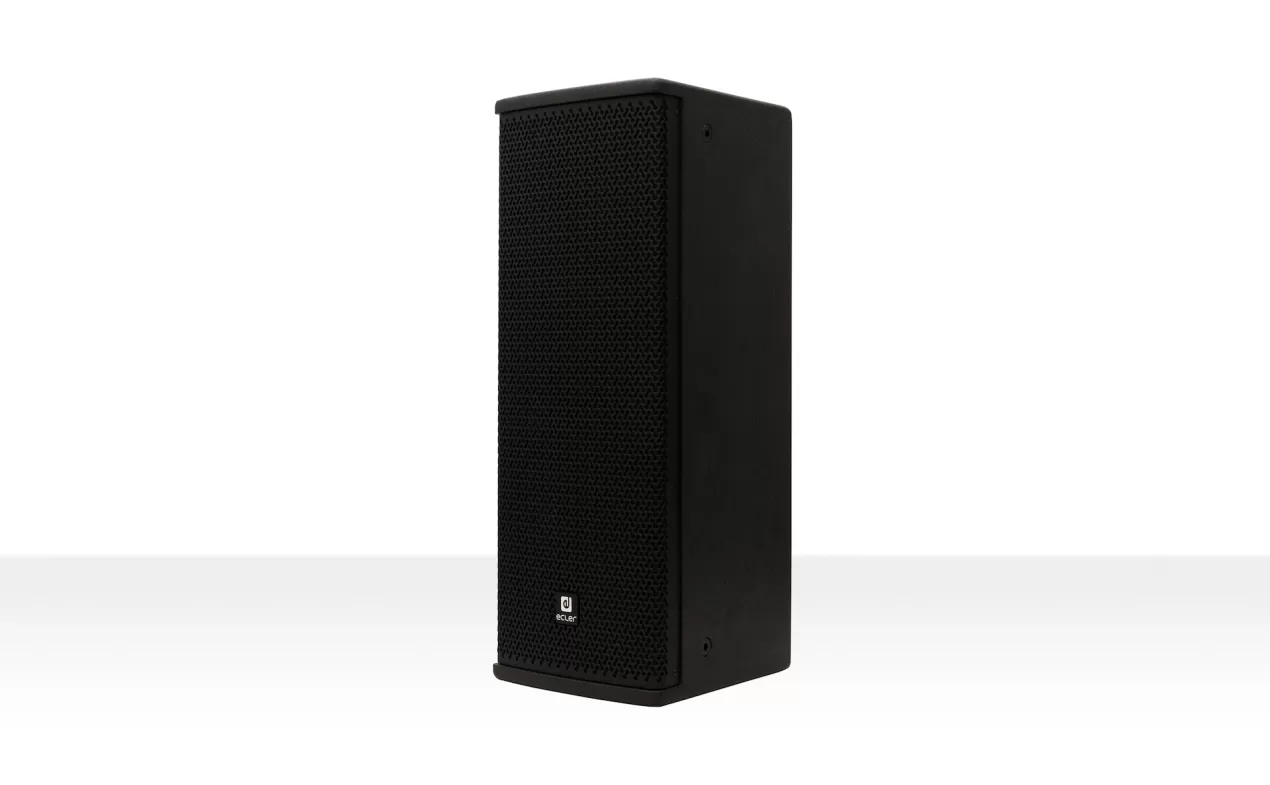

• Full range, 2-way architectural loudspeaker
• 140 WRMS @ 8 ohm
• 2 x 5" low frequency woofer
• 1" high frequency compression driver (rotable)
• Double INPUT/STACK connector, Euroblock + Speakon© type, with security attachment screws to avoid accidental disconnection
• "U" Shape wall bracket included, allowing for tilt adjustment
• 4x M6 & 12 x M8 cabinet flying points
• Metal safety sling included, to avoid drops in case of accidentaldetachment from the wall surface
• Available in black (RAL 9005) and white (RAL 9003) colour
• EASE files available

• Effective Freq. Range

  78 Hz-20 kHz

  Coverage angle / Dispersion

  150°x40° (HxV)

  Power handling

  140 W RMS / 560 W Peak

  Sensitivity

  90 dB (1W/1m)

  Maximum SPL

  111 dB continuous / 117 dB peak

  Recommended amplifier power

  280 W RMS

• Connection type

  1 x Euroblock & 1 x SPEAKON®

  Installation options

  Surface, wall, desktop

  Environmental

  IP31

  Enclosure material

  MDF

  Grille material

  Steel

  Grille fixing system

  Screw fixation

  Pan and tilt wall-mount

  TBC

  Flying points

  4 x M6 & 12 x M8

  Operating temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Operating humidity

  <85% HR

  Storage temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Storage humidity

  <90% HR

  Included accessories

  U Bracket / 5mm Allen key / 6mm Allen key

  Finished colour

  White (RAL 9003) or Black (RAL 9005)

  Dimensions

  480 x 186 x 210 mm / 18.90 x 7.32 x 8.27 in. (WxHxD)

  Weight

  8,4 kg / 18.52 lb

  Pieces per box

  1 piece

  Shipping dimensions

  540 x 265 x 300 mm / 21.26 x 10.43 x 11.81 in. (WxHxD)

  Shipping weight

  9.5 kg / 20.94 lb
