SPECIFIKACIJE

• Full range, 2-way architectural loudspeaker
• 500 WRMS @ 8Ω
• 12" low frequency woofer
• 1,7" high frequency compression driver (rotable)
• Double INPUT/STACK connector, Euroblock + Speakon© type, with security attachment screws to avoid accidental disconnection
• 35 mm mount socket, compatible with SR12 wall bracket (not included) & TRIPO1 floor stand (not included)
• U-bracket wall-mount accessory compatible (not included)
• 12 x M8 cabinet flying points

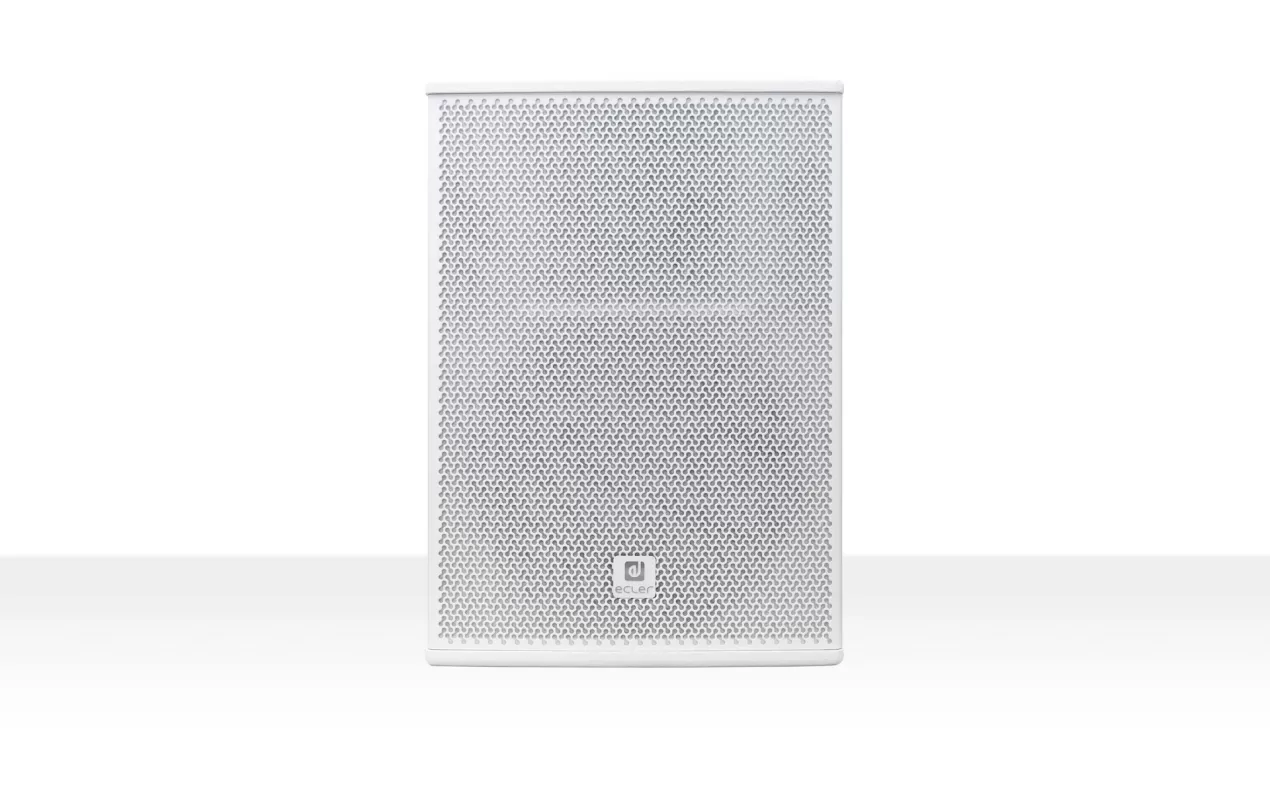

• Available in black (RAL 9005) and white (RAL 9003) colour
• EASE files available

• Effective Freq. Range

  70 Hz-19 kHz (-10dB)

  Coverage angle / Dispersion

  120°x110° (HxV)

  Power handling

  500 W RMS / 2000 W Peak

  Sensitivity

  96 dB (1W/1m)

  Maximum SPL

  123 dB continuous / 129 dB peak

  Recommended amplifier power

  1000 W RMS

• Connection type

  1 x Euroblock & 1x SPEAKON®

  Installation options

  Surface, wall, desktop, 35mm mount socket

  Environmental

  IP31

  Enclosure material

  MDF

  Grille material

  Steel

  Grille fixing system

  Screw fixation

  Pan and tilt wall-mount

  TBC

  Flying points

  12 x M8

  Operating temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Operating humidity

  <85% HR

  Storage temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Storage humidity

  <90% HR

  Included accessories

  4 x rubber feet, 4 x screws

  Optional accessories

  U-bracket wall-mount accessory compatible (ARQ112UB), 35 mm mount socket compatible with SR12 wall bracket & TRIPO1 floor stand

  Finished colour

  White (RAL 9003) or Black (RAL 9005)

  Dimensions

  403 x 565 x 380 mm / 15.87 x 22.24 x 14.96 in. (WxHxD)

  Weight

  23.8 kg / 52.47 lb

  Pieces per box

  1 piece

  Shipping dimensions

  650 x 470 x 470 mm / 25.59 x 18.50 x 18.50 in. (WxHxD)

  Shipping weight

  26.2 kg / 57.76 lb
