SPECIFIKACIJE

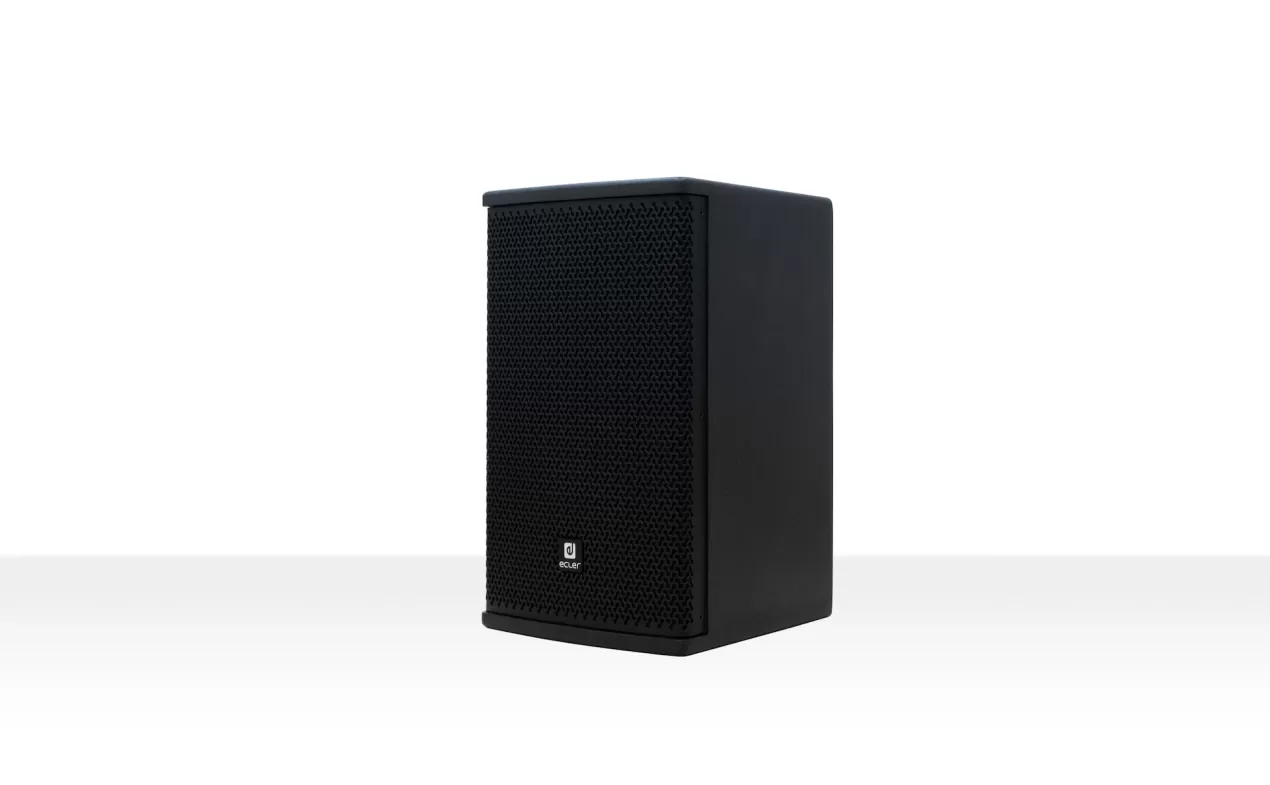

• Full range, 2-way architectural loudspeaker
• 120 WRMS @ 8 Ω
• 6" low frequency woofer
• 1" high frequency compression driver (rotable)
• Double INPUT/STACK connector, Euroblock type, with security attachment screws to avoid accidental disconnection
• VEASY Wall bracket included, allowing for pan & tilt adjustment, employing a single screw for fastening. Robust, quick and easy to install, including jumps and markings for repeating speaker orientation.
• Metal safety sling included, to avoid drops in case of accidental detachment from the wall surface
• Available in black (RAL 9005) or white (RAL 9003) colour
• EASE files available

• Effective Freq. Range

  75 Hz - 20 kHz (-10dB)

  Coverage angle / Dispersion

  140°x160° (HxV)

  Power handling

  120 W RMS / 480 W Peak

  Sensitivity

  88 dB (1W/1m)

  Maximum SPL

  109 dB continuous / 115 dB peak

  Recommended amplifier power

  240 W RMS

• Connection type

  2 x Euroblock

  Installation options

  Surface, wall, desktop

  Environmental

  IP31

  Enclosure material

  MDF

  Grille material

  Steel

  Grille fixing system

  Screw fixation

  Pan and tilt wall-mount

  TBC

  Flying points

  8 x M6

  Operating temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Operating humidity

  <85% HR

  Storage temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Storage humidity

  <90% HR

  Included accessories

  VEASY Wall Bracket / 3 mm Allen key / 4 mm Allen key / 6 mm Allen key

  Finished colour

  White (RAL 9003) or Black (RAL 9005)

  Dimensions

  215 x 350 x 240 mm / 8.46 x 13.78 x 9.45 in. (WxHxD)

  Weight

  7.4 kg / 16.31 lb

  Pieces per box

  1 piece

  Shipping dimensions

  395 x 290 x 405 mm / 15.55 x 11.42 x 15.94 in. (WxHxD)

  Shipping weight

  8.7 kg / 19.18 lb
