KATEGORIJA

• Ozvučenje
• Zvučne Kutije
• Pasivne Zvučne Kutije
• Instalacijski zvučnici

DIMENZIJE

š: x v: x d: x m: kg

TAGOVI

Zvučnici

Pasivne

ecler

SPECIFIKACIJE

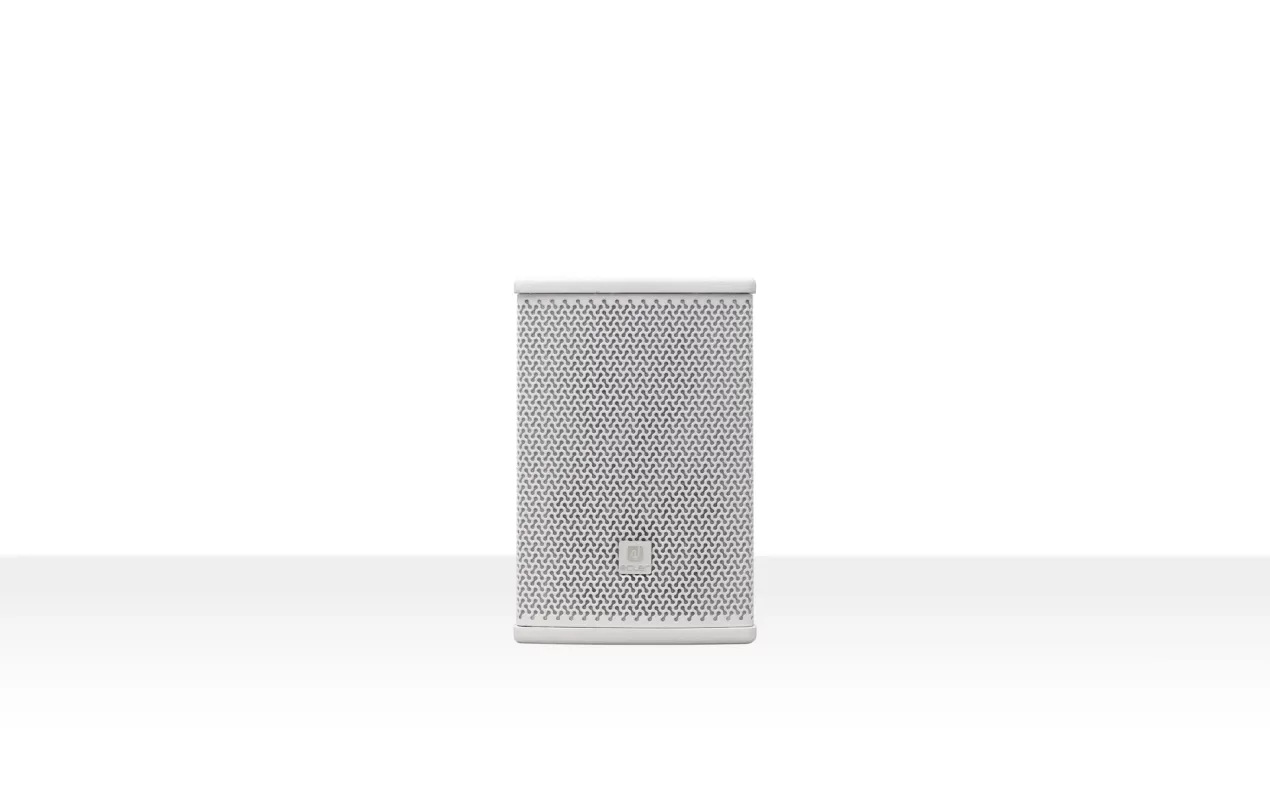

• Full range, 2-way architectural loudspeaker
• 70 WRMS @ 8Ω
• 5,25" low frequency woofer
• 1" high frequency tweeter
• Double INPUT/STACK connector, Euroblock type, with security attachment screws to avoid accidental disconnection
• VEASY Wall bracket included, allowing for pan & tilt adjustment, employing a single screw for fastening. Robust, quick and easy to install, including jumps and markings for repeating speaker orientation.
• Metal safety sling included, to avoid drops in case of accidental detachment from the wall surface
• Available in black (RAL 9005) or white (RAL 9003) colour
• EASE files available

• Effective Freq. Range

  80 Hz-20 kHz (-10dB)

  Coverage angle / Dispersion

  150°x130° (HxV)

  Power handling

  70 W RMS / 280 W Peak

  Sensitivity

  89 dB (1W/1m)

  Maximum SPL

  107 dB continuous / 113 dB peak

  Recommended amplifier power

  140 W RMS

• Connection type

  2 x Euroblock

  Installation options

  Surface, wall, desktop

  Environmental

  IP31

  Enclosure material

  MDF

  Grille material

  Steel

  Grille fixing system

  Screw fixation

  Flying points

  4 x M6

  Operating temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Operating humidity

  <85% HR

  Storage temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Storage humidity

  <90% HR

  Included accessories

  VEASY Wall Bracket / 3mm Allen key / 4mm Allen key / 6mm Allen key

  Finished colour

  White (RAL 9003) or Black (RAL 9005)

  Dimensions

  186 x 280 x 210 mm / 7.32 x 11.02 x 8.27 in. (WxHxD)

  Weight

  3.6 kg / 7.93 lb

  Pieces per box

  1 piece

  Shipping dimensions

  365 x 260 x 335 mm / 14.37 x 10.24 x 13.19 in. (WxHxD)

  Shipping weight

  5.5 kg / 12.12 lb
