FOS
ŠIFRA PROIZVODA: L006062
Antena za bežične mikrofone (4 kanalne).
Radni napon iznosi 8 VDC, LPDA antena, masimalni dobitak od 10dB.
Fiksni tečaj konverzije: 1 € = 7,53450 kn
Za sve naše veleprodajne kupce unutar Zagrebačke županije vršimo BESPLATNU DOSTAVU na Vaš kućni prag !!!
iznad 66,36 € (500 Kn) dostava je besplatna na području CIJELE HRVATSKE!
Antenna type: Log periodic dipole array (LPDA).
The working frequency band: 500 MHz - 1 GHz.
Operating voltage: 8V DC.
Gain: 6dB typical, 10dB maximum.
Impedance: 50Ω.
VSWR: ≤1.7:1
Direction: Oval 180º.
Direction polarity: vertical.
11 wave guides segments.
Fixed right angle BNC jack connection terminal.
Weight: 310 gr.
Dimensions: 348 x 325 x 25 mm.
Antenna structure: glass, copper, copper film coating.

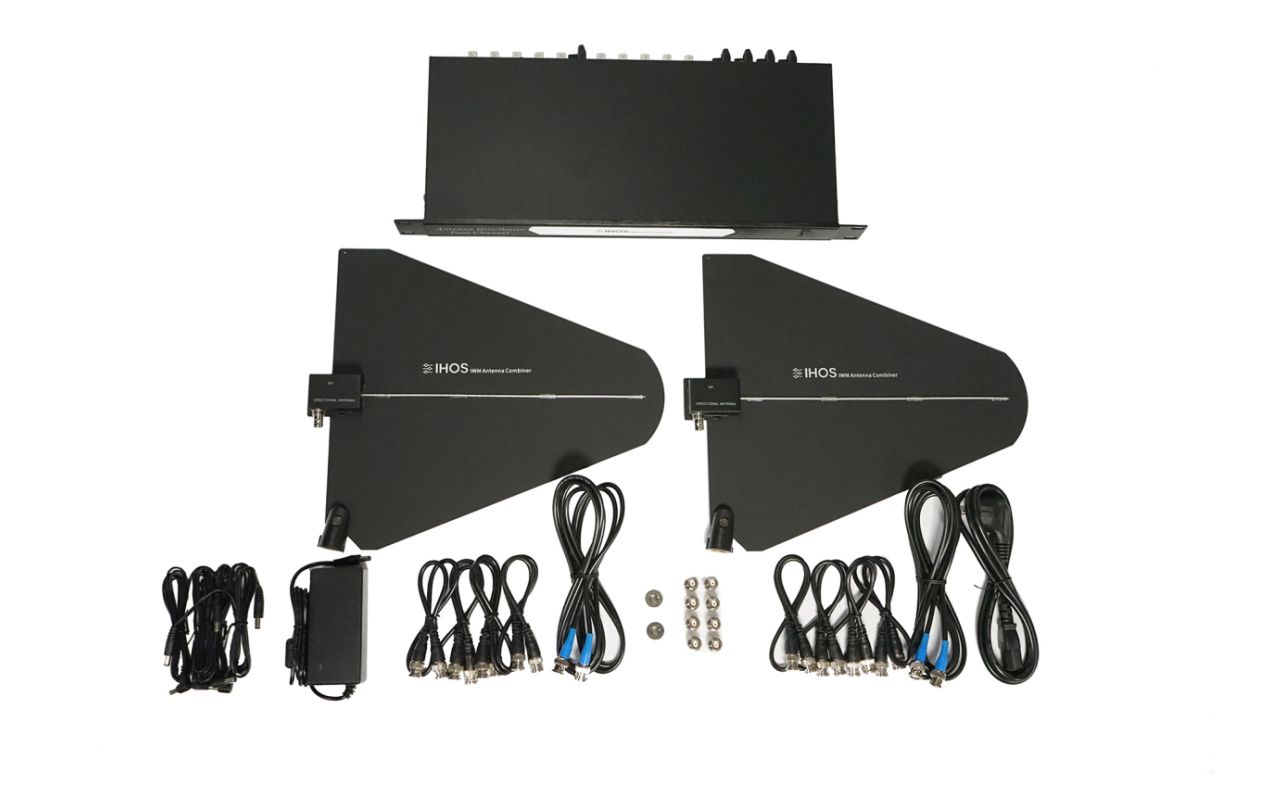

Antenna distributor: One divided to two / one devided to four.
The working frequency band: 500 MHz - 1 GHz.
Gain: 6 - 10 dB.
Operation voltage: DC 12V 2A / DC 12V 3A.
Maximum power output (external power supply): DC 12V 800 mA.
