KATEGORIJA

• Media mikser / player

DIMENZIJE

š: x v: x d: x m: kg

TAGOVI

ecler

SPECIFIKACIJE

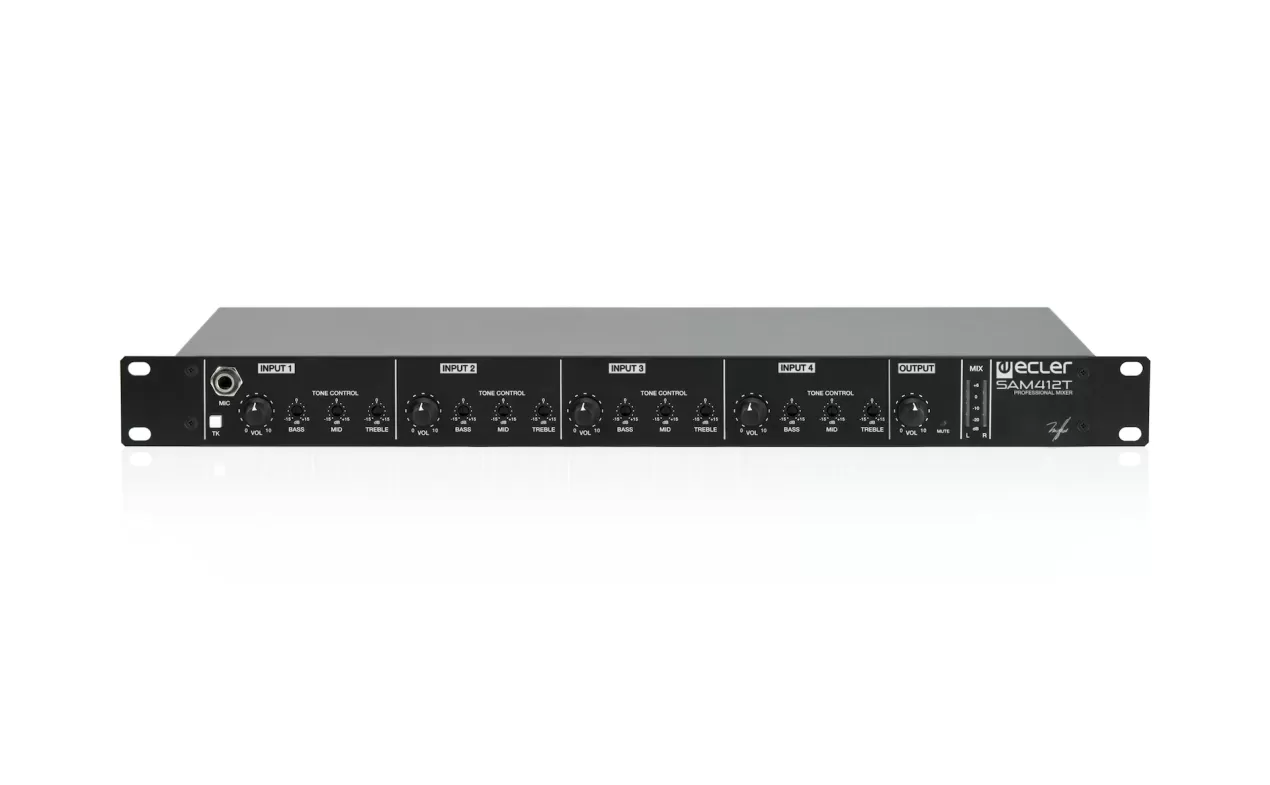

• 4 input channels, 2 main outputs 19” installation mixer
• Micro sensitivity level can be adjusted on the back panel
• +18V Phantom Power available in all “MIC” inputs
• Direct micro input on front panel, channel 1
• Includes a talkover assigned to “INPUT 1” with internal release time adjustment
• Three-band tone controls for each channel, accessible with a screwdriver
• Vu-meter for the mix signal
• Two internally adjustable output levels
• Recording output
• Direct access to the mixing bus allowing you to connect another mixer and increase the number of inputs
• Remote MUTE control affecting all inputs for connecting fire detection systems other safety devices. Internally programmable “NO / NC” (normally open, normally closed)
• Mono/stereo switch

• Number of input ports

  4, MIC/LINE level
  1 direct MIC input on front panel

  Connection type

  MIC: 3-pin Euroblock
  LINE: double RCA

  Input sensitivity

  LINE(1, 2, 3): 0dBV
  LINE(4): -5dBV
  MIC BAL: -50(-20)dBV
  MIX: 0dBV

  Input impedance

  LINE(1, 2, 3): 50Ω
  LINE(4): 50kΩ
  MIC BAL: >1kΩ
  MIX: >6Ω

  THD + Noise

  LINE <0.01%
  MIC BAL <0.04%

  CMRR

  MIC >65dB @ 1 kHz

  Phantom power

  +18VDC

• Tone Control

  3-band tone control

  Tone Frequency Cut

  BASS 100Hz ±15dB
  MID 2kHz ±15dB
  TREBLE 10kHz ±15dB

  Talkover

  Yes

  Control Buttons

  Talkover switch, Mains switch POWER, MIC/LINE selector, MONO/ST switch

  Status Indicators

  MUTE LED, MIX Vu-meter LED, ON LED
